Upgrade high speed rotary way labeling machine, with capacity 200-600pcs/min; SKILT FOCUS STICKER LABELING MACHINE Since 1998, as most professional round bottle labeling machine,rotary way labeling machine,High speed labeling machine manufacturer in China;

  • PARAMETERS
  • MAIN ELECTRICAL CONFIGURATION
  • FOR REF

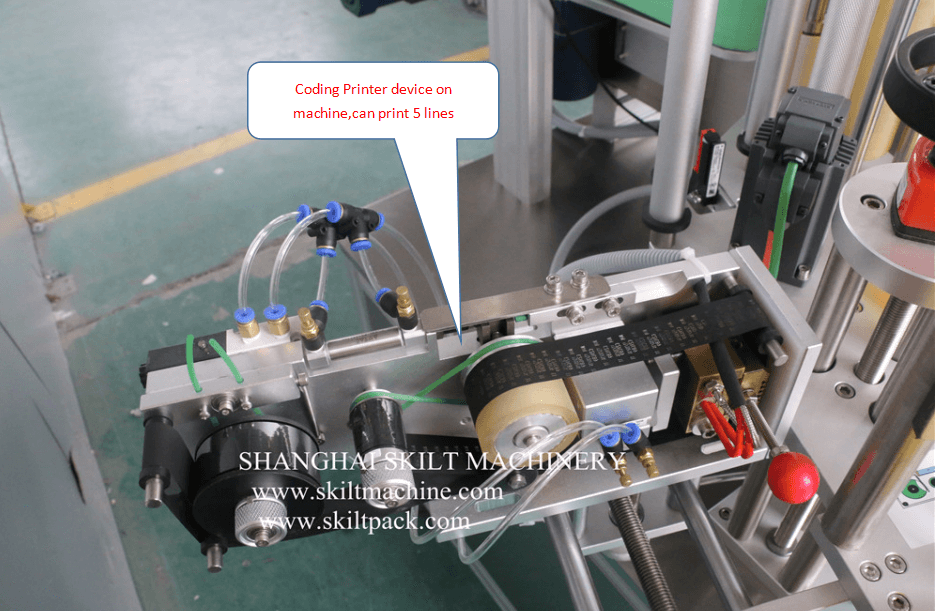

  • OPTIONAL

Model

HPLM-B

Driving Mode

Servo motor

Yieldpcs/min

200-500 (depends on bottle and label size)

Operating direction

Left or Right

Conveyor Speedm/min

40

Labeling Accuracy

±1.0 mm

Inner diameter of label roll

76 mm

Outer diameter of label roll

350 mm(max)

Suitable label size

Width 15-120 mm  length 15-200 mm

Suitable labeling products size

Diameter :10-70mm

Printer use air

5kg/cm ²

Voltage (can customized)

110V/220V/380V

Powerw

1500W

Weightkg

380

Machine size

2600L800 (W)  1300 (H) mm

No

Name

Model

Unit

Brand

1

HMI (Touch screen)

648-0CC11-3AX0

1Piece

SIEMENS

2

programmable control (PLC)

288-IST20-0AA0

1Piece

SIEMENS

3

Labeling engine

 (servo system )

TL-A2540P-BJ32AAservo motor

3Piece

American AB

750W2071-AP8)servo driver

3Piece

American AB

Reserve label motor

80YS25GV22/80GK7.5H

2sets

JSCC

4

Sensor (check product)

FS-N18N

4sets

Japan KEYENCE

5

Sensor (check label)

GS61/6.2

1set

German LEUZE

6

Sensor(block bottle)

GL6-N1112

1set

German SICK

7

sensory switch

reserve label

PS-FT3-NLB2-TX

1set

Taiwan DELTA

8

sensory switch

collect label

IME12-08NNSZW2S

1set

German SICK

9

Low voltage circuit breaker, terminal, relay

Each 1set

France Schneider

10

Frequency converter

(roll label)

200W(VFD002L21A)

1set

Taiwan DELTA

11

Frequency converter

(conveyor, rotary plate)

400W(VFD004L21A)

1Piece

Taiwan DELTA

12

Roll label motor

90YS90GY22/90GF5H

1Piece

German JSCC

13

Conveyor motor

0.37KW(M3AA 71M4-0.37KW-B5)

1Piece

Switzerland ABB

Conveyor Reducer

NMRV40-20-71B5-FH-Ø18

1Piece

PINION

14

Rotary plate motor

0.37KW(M3AA 71M 4-0.37KW-B5)

1Piece

Switzerland ABB

Rotary plate Reducer

NMRV40-100-71B5-FH-Ø18

1Piece

PINION
