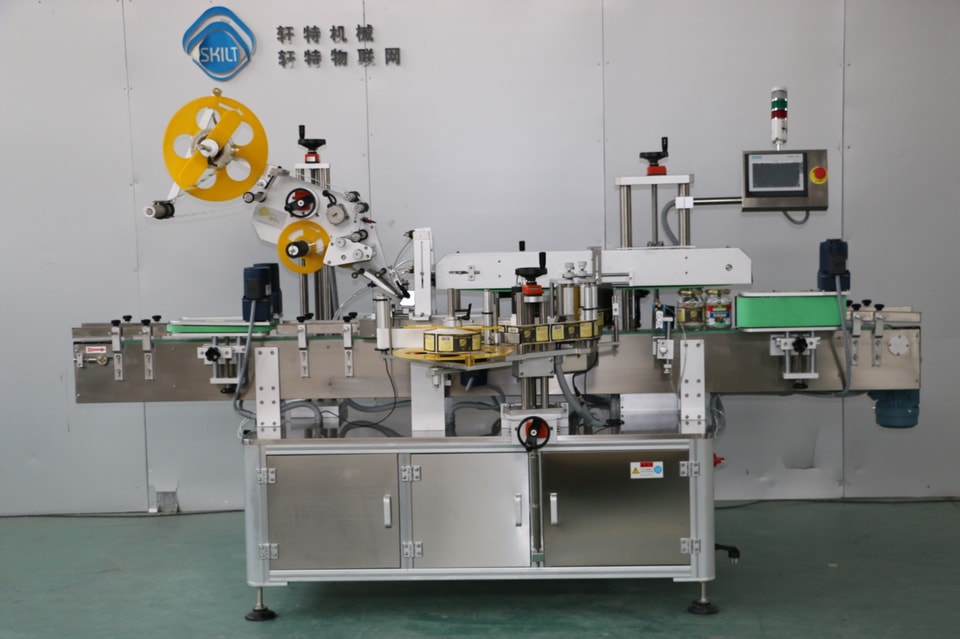

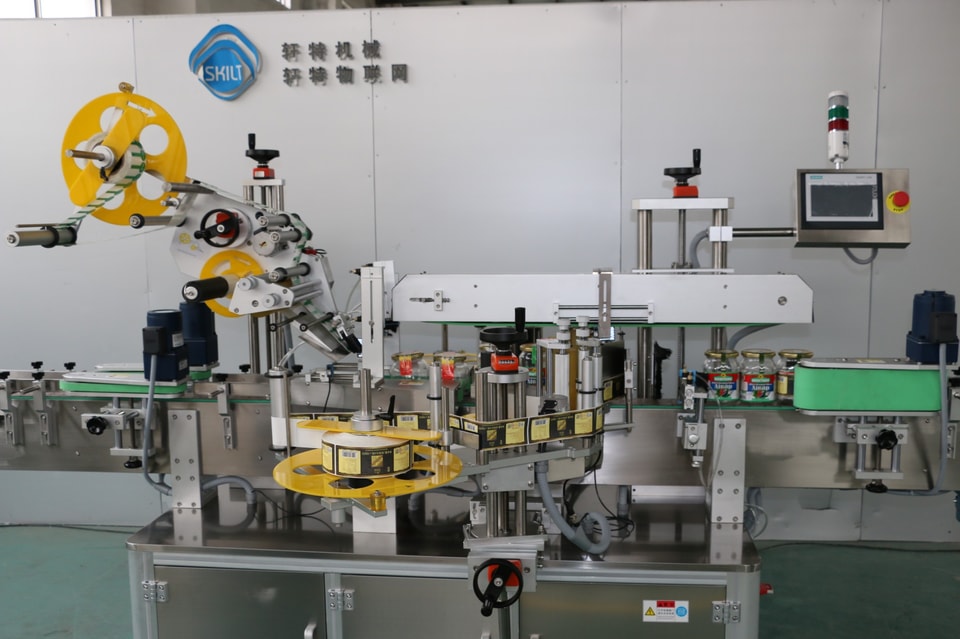

FOCUS STICKER LABELING MACHINE is one of the toppest Front & Back & Top Surface Labeler,labeling machine,Automatic labeling machine in China.During these years of exporting , FOCUS STICKER LABELING MACHINE now has rich experience in the world

  • Parameters
  • Main Electrical Configuration
  • For Ref
  • Optional
Model DLM-DPM-A
Driving Mode Servo motor
Yield(pcs/min) 20-100
Operating direction Left or Right
Conveyor Speed(m/min) ≤40
Labeling Accuracy ±1.0 mm
Label material Adhesive sticker, opaque or transparent label
The inner diameter of label roll 76 mm
The outer diameter of label roll 350 mm(max)
The suitable size of label Width 15-100 mm  length 15-200 mm
The suitable size of labeling objects Can customized
Printer use air 5kg/cm ²
Voltage (In China) AC220V 50/60HZ Single phase
(Can customized as client need)
No Name Model Unit Brand
1 PLC control system 288-1ST20-OAAO 1 Set SIEMENS
2 Touch-screen 648-OCC11-3AXO 1 Piece SIEMENS
3 Labeling engine Servo motor 1FL6 034-2AF21-1AA1 3 sets SIEMENS
4 Labeling engine Drive 6SL3 210-5FB10-4UA1 3 sets SIEMENS
5 Frequency converter 6SL3210-5BB15-5UV0 3 sets SIEMENS
6 photoelectric sensor
(check bottle)
FS-N18N 2 sets Japan KEYENCE
7 Photoelectric sensor (Check opaque label) GS61/6.2 3 sets German Leuze
Photoelectric sensor (Check opaque and transparent label) GSU 14B/66.3-S12 3 sets German Leuze
8 Main transport motor M2BAX-0.55KW-4P-B14 1 set Switzerland
ABB
9 Press bottle motor 1FL6034-2AF21-1AA1 1 set SIEMENS
10 Press bottle driver 6AV6643-OAA01-1AXO 1 set SIEMENS
11 Separate bottle Motor 40W1:30 2 sets German JSCC

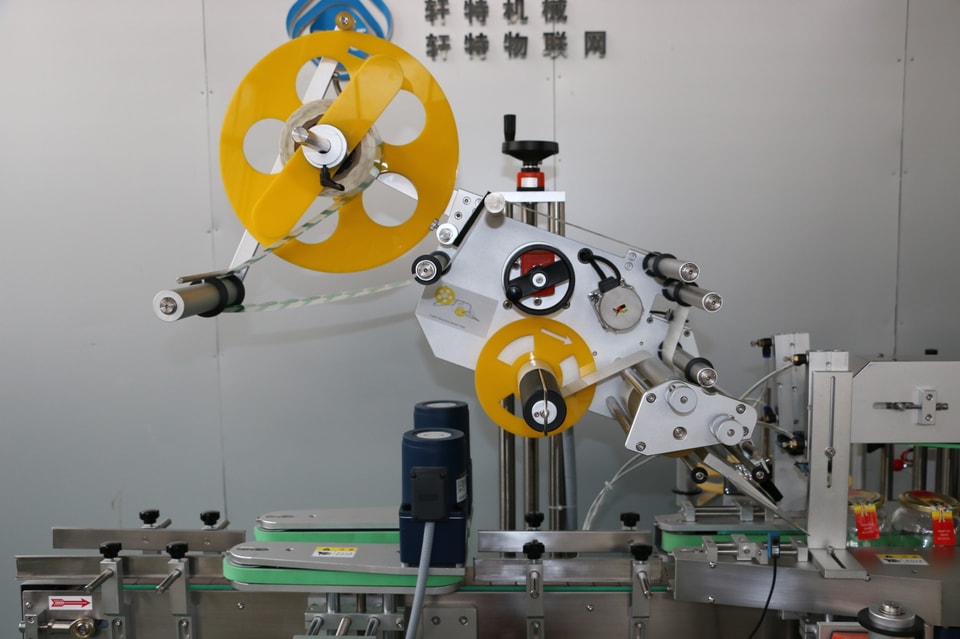

German Avery labeling engine for client choose

Famous German Avery 204 labeling engine with rather high labeling precision
