FOCUS STICKER LABELING MACHINE is one of the toppest top bottom labeling machine,Box Top & Bottom Labeler,Sticker labeling machine in China.During these years of exporting , FOCUS STICKER LABELING MACHINE now has rich experience in the worldwide

  • Parameters
  • Main Electrical Configuration
  • For Ref
  • Optional
Model UDPM-ALS104
Driving Mode German Avery 104
Yield(pcs/min) 20-100
Operating direction Left or Right
Conveyor Speed(m/min) ≤35
Labeling Accuracy ±1.0 mm
Label material Adhesive sticker, opaque or transparent label
The inner diameter of label roll 76 mm
The outer diameter of label roll 350 mm(max)
The suitable size of label Width 15-160 mm  length 15-300 mm
The suitable size of labeling objects Can customized
Printer use air 5kg/cm ²
Voltage (In China) AC220V 50/60HZ Single phase
(Can customized as client need)
No Name Model Unit Brand
1 PLC control system 288-1ST20-OAAO 1 Set SIEMENS
2 Touch-screen 648-OCC11-3AXO 1 Piece SIEMENS
3 Labeling engine Servo motor

ALS104/204/206

1 set

German Avery

4 Labeling engine Drive

ALS104/204/206

1 set

German Avery

5 Frequency converter 6SL3210-5BB15-5UV0 1 set SIEMENS
6 photoelectric sensor
(check bottle)
FS-N18N 1 set Japan KEYENCE
7

Photoelectric senso

r (Check opaque label)

GS61/6.2 2 sets German Leuze

Photoelectric sensor

(Check opaque and transparent label)

GSU 14B/66.3-S12 2 sets German Leuze
8 Main transport motor M2BAX-0.55KW-4P-B14 1 set Switzerland
ABB
9 Press bottle motor 1FL6034-2AF21-1AA1 1 set SIEMENS
10 Press bottle driver 6AV6643-OAA01-1AXO 1 set SIEMENS
11 Separate bottle Motor 40W1:30 2 sets German JSCC

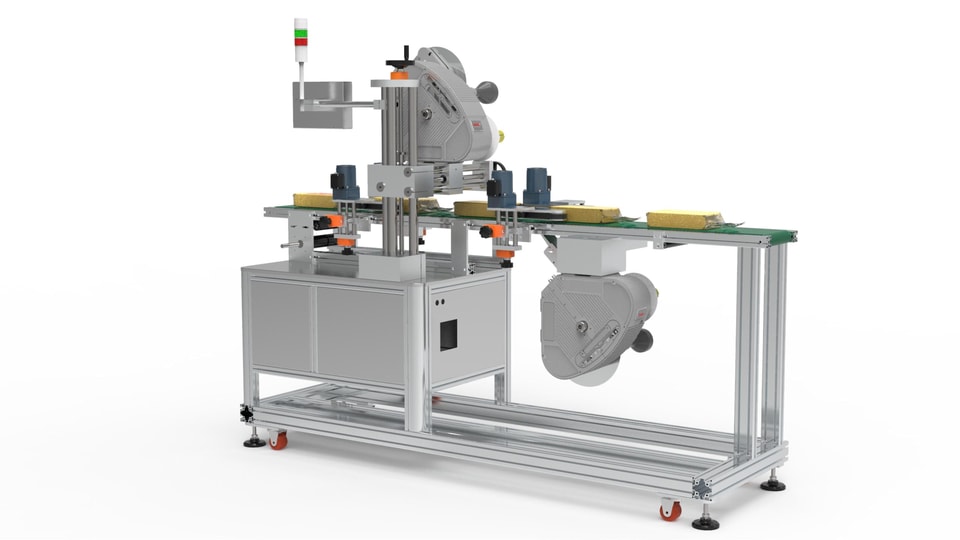

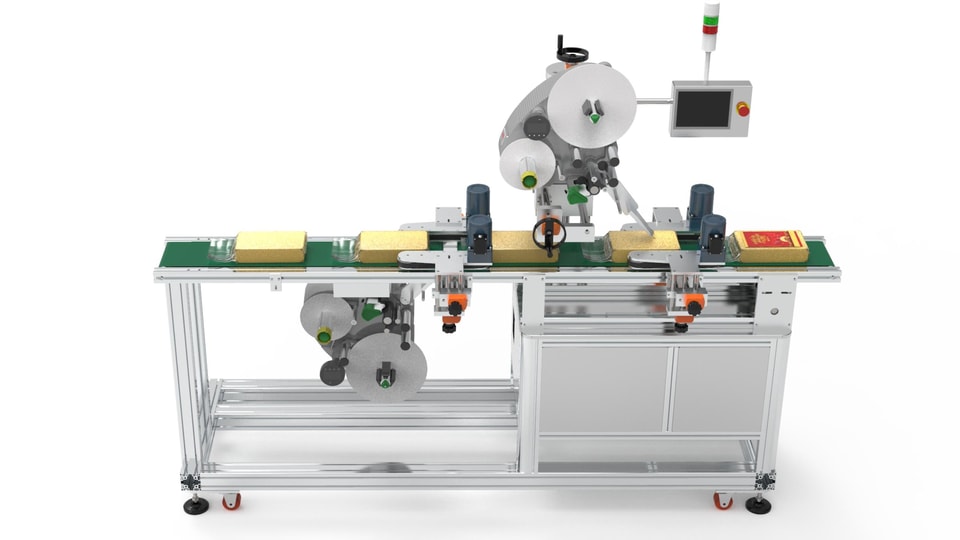

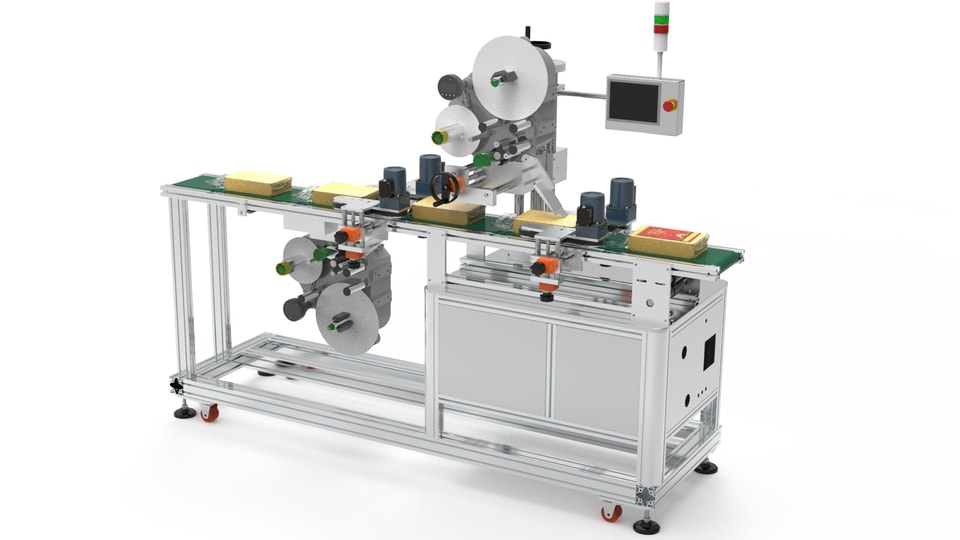

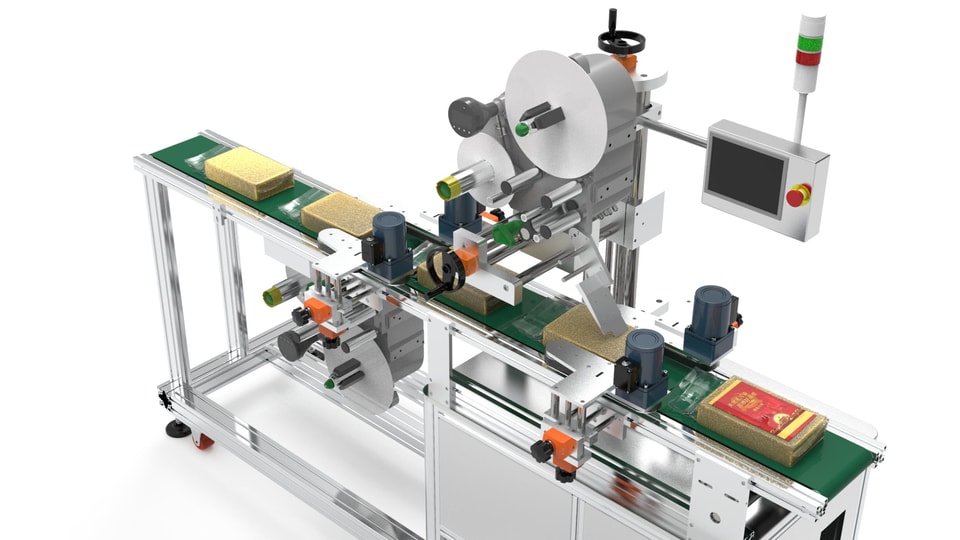

  • Top and bottom two sides labeling machine
  • Drawing
Printer device
Thermal transfer printer , printing date and batch number on labels.
