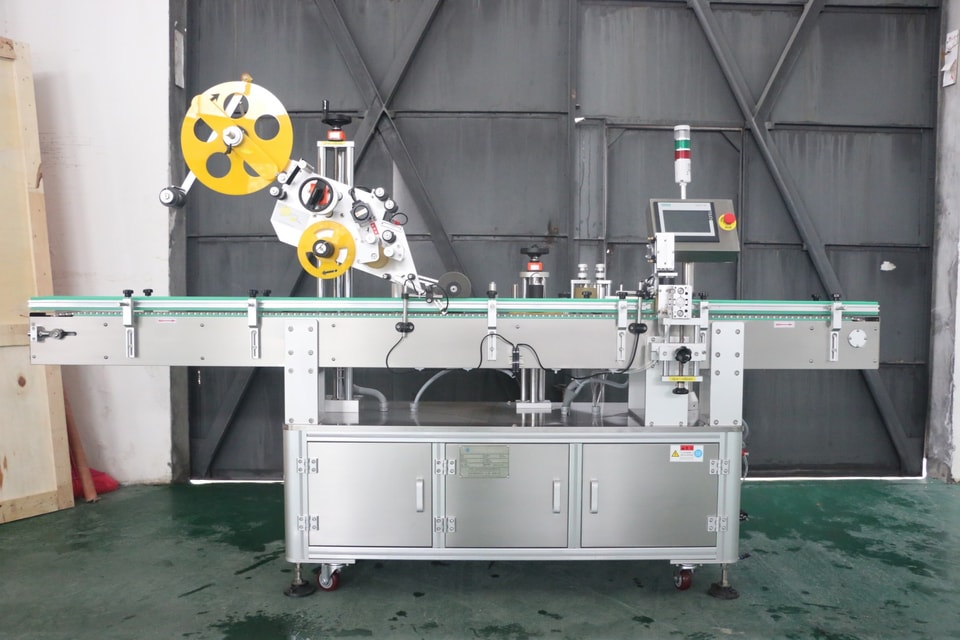

FOCUS STICKER LABELING MACHINE is one of the toppest Cup Labeling Machine,Sticker labeling machine,Automatic labeling machine in China.During these years of exporting , FOCUS STICKER LABELING MACHINE now has rich experience in the worldwide markets

  • Parameters
  • Main Electrical Configuration
  • For Ref
  • Optional
Model DPM-SLM-A
Driving Mode Servo motor
Yield(pcs/min) 20-130
Operating direction Left or Right
Conveyor Speed(m/min) ≤40
Labeling Accuracy ±1.0 mm
Label material Adhesive sticker, opaque or transparent label
The inner diameter of label roll 76 mm
The outer diameter of label roll 350 mm(max)
The suitable size of label Width 15-160 mm  length 15-300 mm
The suitable size of labeling objects Can customized
Printer use air 5kg/cm ²
Voltage (In China) AC220V 50/60HZ Single phase
(Can customized as client need)
No Name Model Unit Brand
1 PLC control system 288-1ST20-OAAO 1 Set SIEMENS
2 Touch-screen 648-OCC11-3AXO 1 Piece SIEMENS
3 Labeling engine Servo motor 1FL6 034-2AF21-1AA1 1 set SIEMENS
4 Labeling engine Drive 6SL3 210-5FB10-4UA1 1 set SIEMENS
5 Frequency converter 6SL3210-5BB15-5UV0 1 set SIEMENS
6 photoelectric sensor
(check bottle)
FS-N18N 1 set Japan KEYENCE
7 Photoelectric sensor (Check opaque label) GS61/6.2 2 sets German Leuze
Photoelectric sensor (Check opaque and transparent label) GSU 14B/66.3-S12 2 sets German Leuze
8 Main transport motor M2BAX-0.55KW-4P-B14 1 set Switzerland
ABB
9 Press bottle motor 1FL6034-2AF21-1AA1 1 set SIEMENS
10 Press bottle driver 6AV6643-OAA01-1AXO 1 set SIEMENS
11 Separate bottle Motor 40W1:30 2 sets German JSCC
  • Drawing

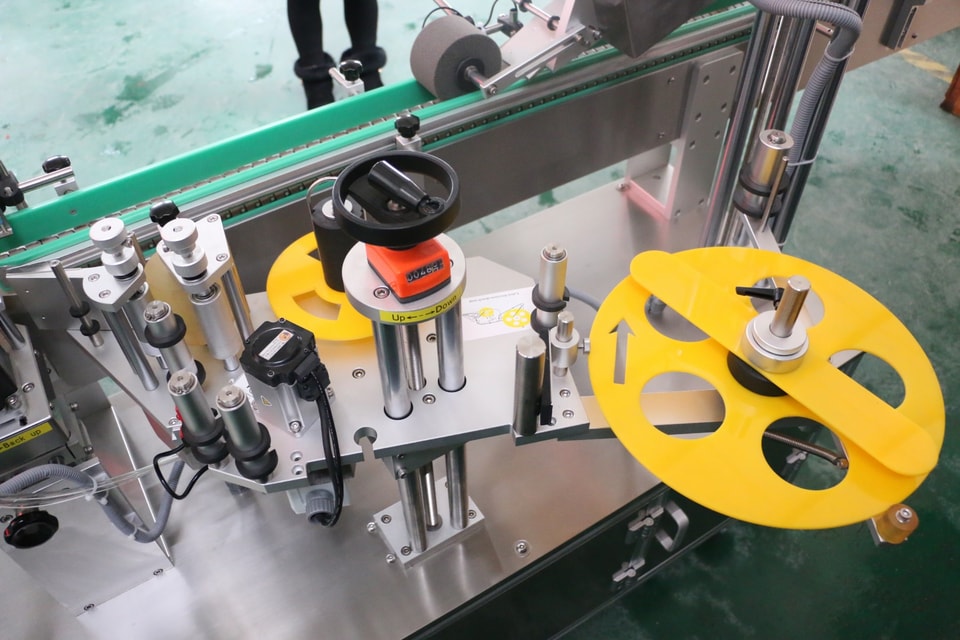

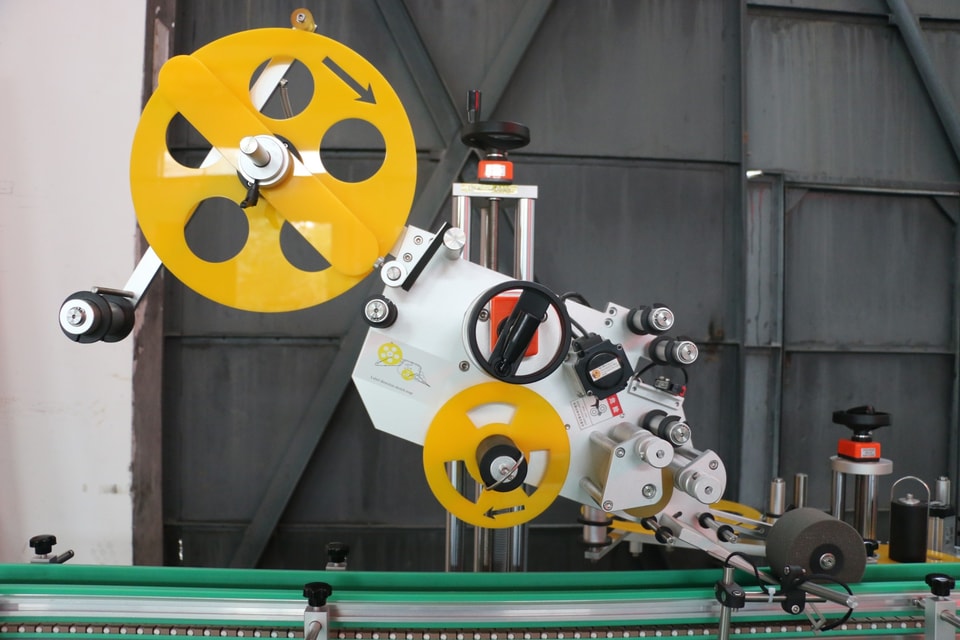

1.German Avery labeling engine
Famous German Avery 104 labeling engine, can check label size directly, with rather high labeling precision, dust proof and waterproof , with five years guarantee period

2. Printer device
Thermal transfer printing way , printing date and batch number on labels.


  • German Avery labeling engine

  • Printer device
