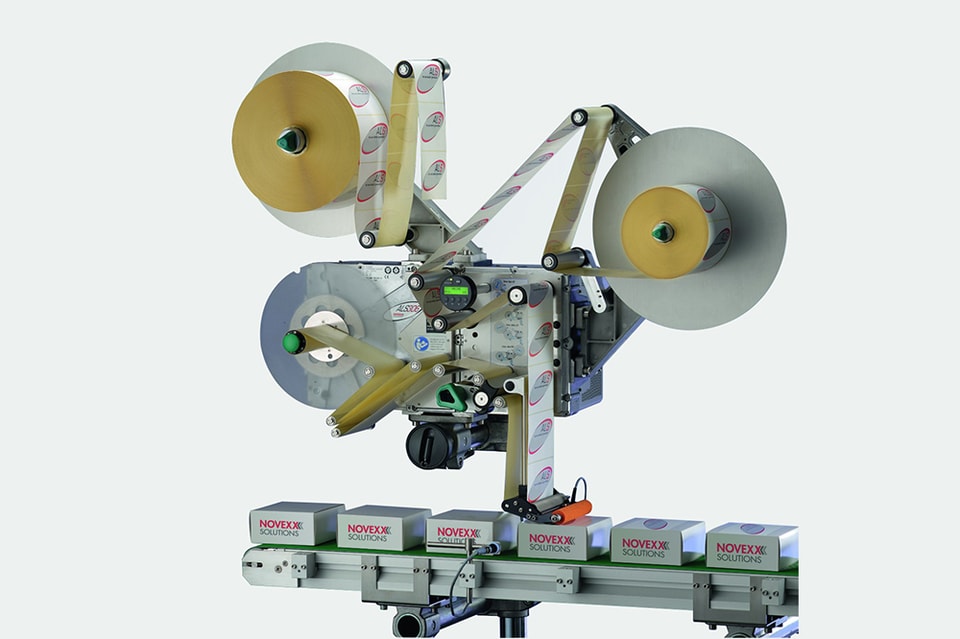

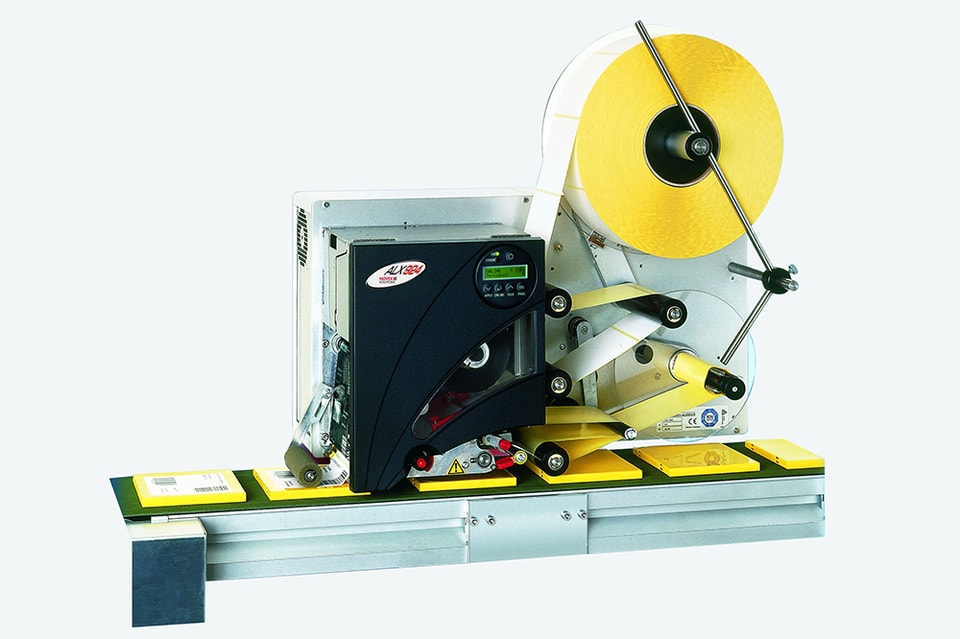

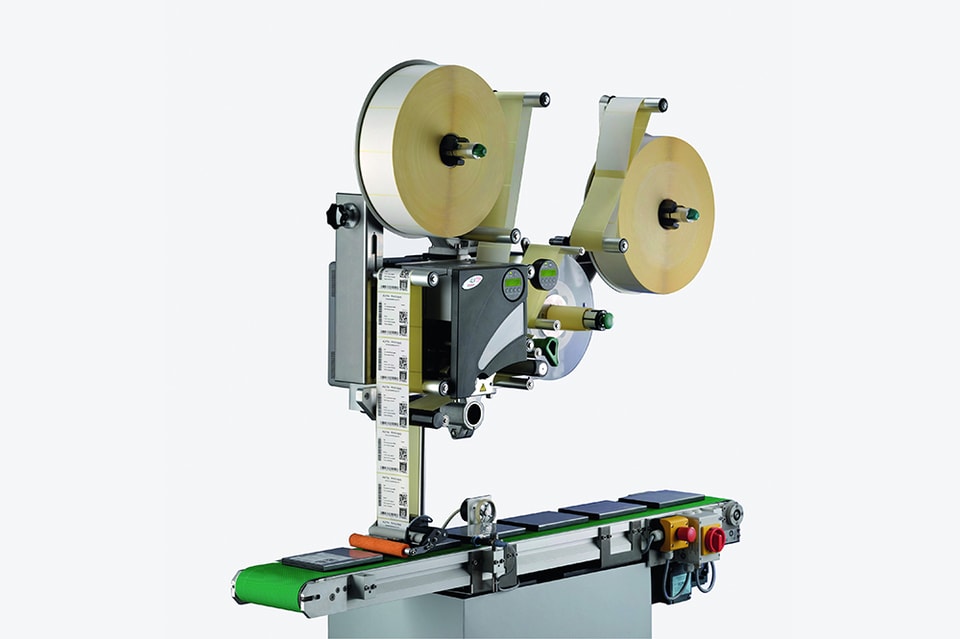

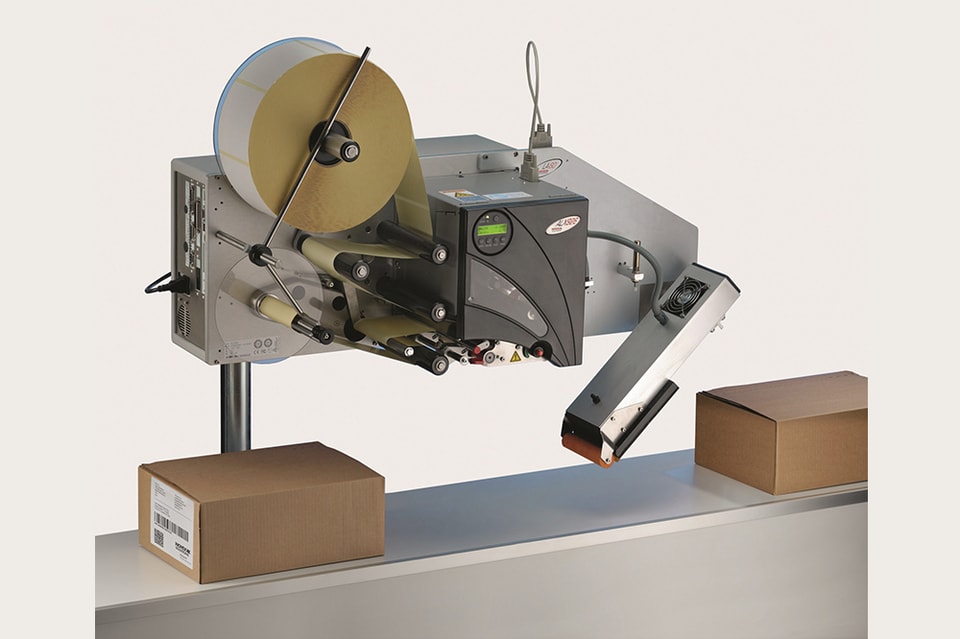

FOCUS STICKER LABELING MACHINE is one of the toppest Labeling Applicator in China.During these years of exporting , FOCUS STICKER LABELING MACHINE now has rich experience in the worldwide markets

  • Parameters
  • Main Electrical Configuration
  • Optional
Model ELM-S
Driving Mode Servo motor
Yield(pcs/min) 10-60
Operating direction Left or Right
Conveyor Speed(m/min) ≤40
Labeling Accuracy ±1.0 mm
The inner diameter of label roll 76 mm
The outer diameter of label roll 350 mm(max)
The suitable size of label Width 15-300 mm  length 15-300 mm
The suitable size of labeling objects Can customized
Printer use air 5kg/cm ²
Voltage (In China) AC220V 50/60HZ Single phase
(Can customized as client need)
Power(w) 3000W
Weight(kg) 500
Machine size 4000(L) 1500 (W)  1600 (H) mm
(machine size can made as client need )
No Name Model Unit Brand
1 PLC control system 288-1ST20-OAAO 1 Set SIEMENS
2 Touch-screen 648-OCC11-3AXO 1 Piece SIEMENS
3 Labeling engine Servo motor 1FL6 034-2AF21-1AA1 1 set SIEMENS
4 Labeling engine Drive 6SL3 210-5FB10-4UA1 1 set SIEMENS
5 Frequency converter 6SL3210-5BB15-5UV0 1 set SIEMENS
6 photoelectric sensor
(check products)
FS-N18N 3 set Japan KEYENCE
7 Photoelectric sensor (Check opaque label) GS61/6.2 3set German Leuze
Photoelectric sensor (Check opaque and transparent label) GSU 14B/66.3-S12 3set German Leuze
8 Main transport motor 90YS90DV22 1 set JSCC
1. Printer device
Thermal transfer printer , printing date and batch number on labels.
