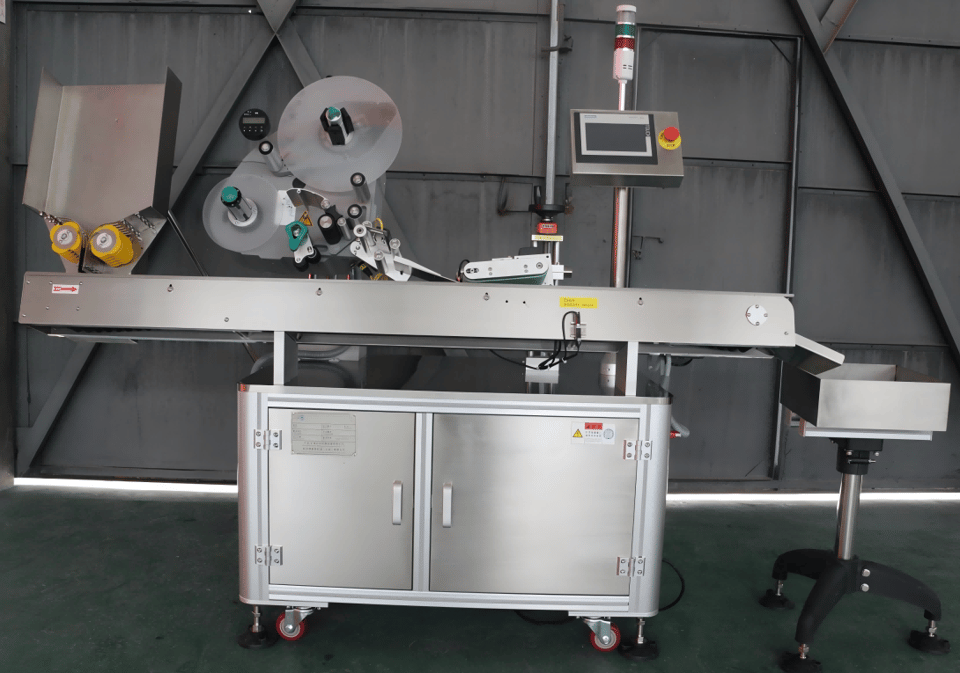

SKILT Unique Horizontal Way Labeling Solution

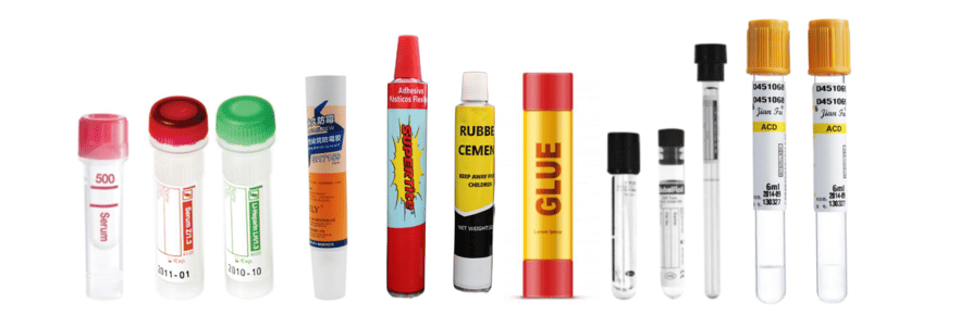

PWM Series horizontal wrap around automatic labeling machine suit for non-stable cylindrical products,

such as ampoule,carpule ,tubes,pens,syringes,lipsticks,smoke flares,cartridges and so on.

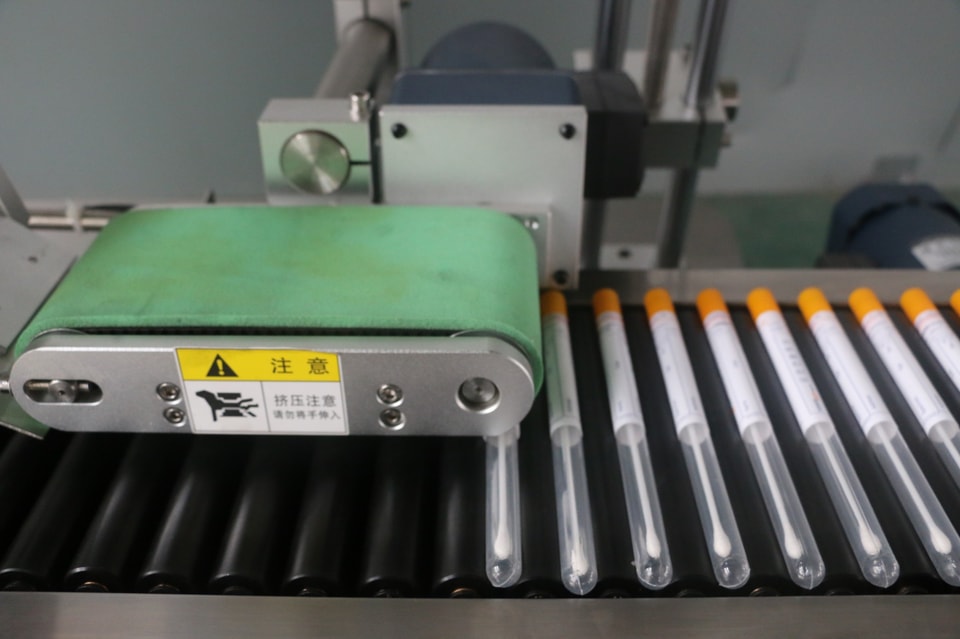

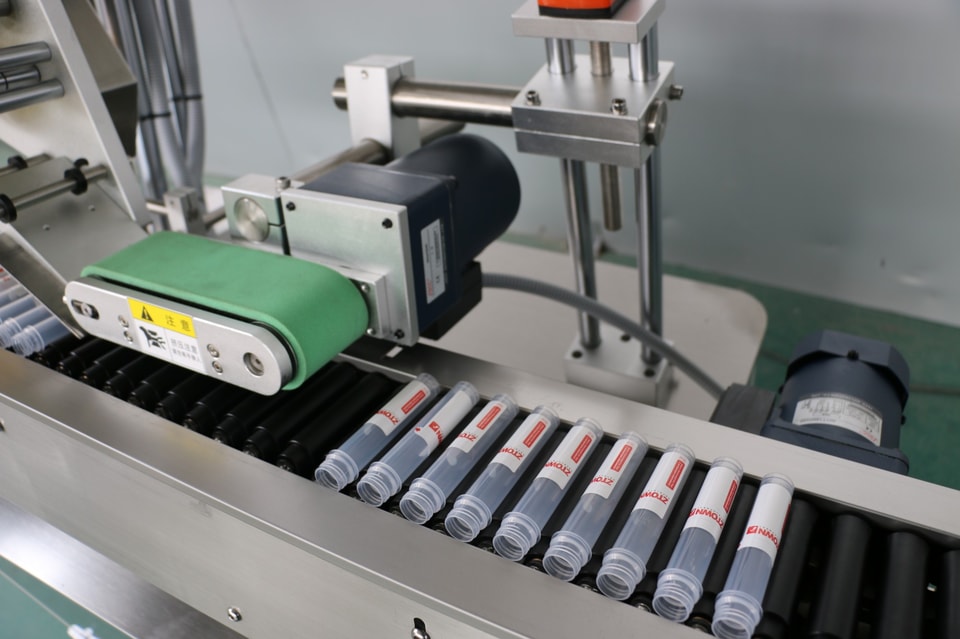

The products are labeled all around. The lying products reach the labeling station via a clocked roller conveyor belt,

which fixes the label on the circumference. The system convinces with the highest positioning accuracy.


Machine Features

1.Has few moving parts, adjustments are easily made, changeovers easy.

2.Angled roller conveyor made depends on labeling objects shape and size, ensures labeling accuracy.

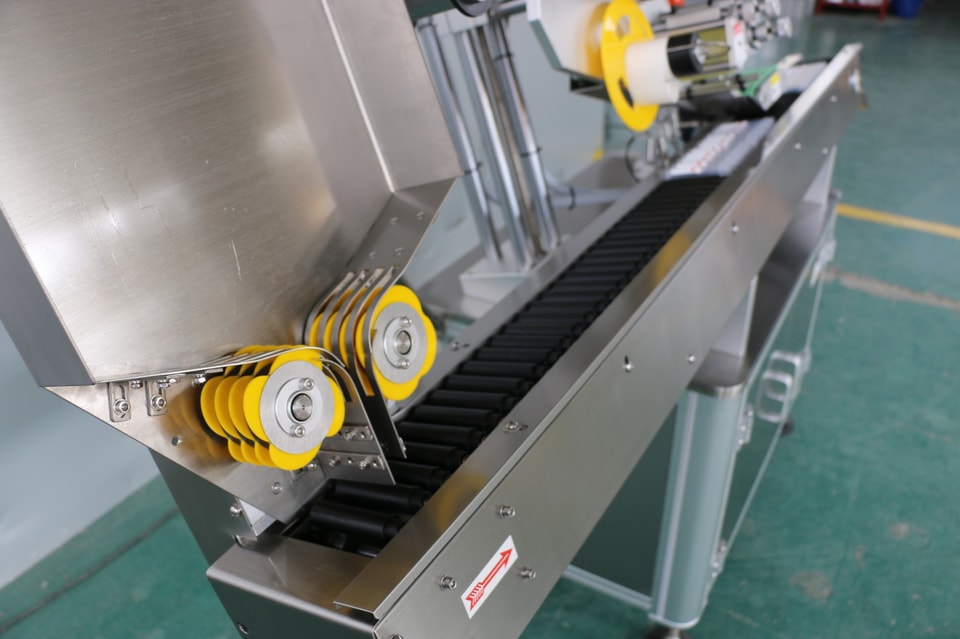

3.Auto feeder design and slanted conveyor made from special engineering plastic roller,

  potential damage to fragile containers are minimized.



Additional modules

1. The system can be expanded to include label printing systems such as thermal transfer printing systems,

    thermal inkjet devices (TIJ), continuous inkjet systems (CIJ) or hot stamping devices,TTO module.

2. Optional vision systems guarantee quality criteria such as the presence, correctness of print data,

    label placement on your products and ensure that complaints are settled right from the start.


Machine Detail Function Show






No Name Brand
1 PLC control system SIEMENS
2 Touch-screen SIEMENS
3 Labeling engine control system PANISONIC & GERMAN novexx
4 Servo drive PANISONIC
5 Frequency converter DELTA
6 Check labeling object sensor Japan KEYENCE
7 Check opaque label sensor
German Leuze
8 Main transport motor
JSCC
Model PWM-A & PWM-ALS204
Driving Model
Servo system & German Novexx
Labeling way
Horizontal way
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
50-300pcs/min
Suitable label size
L:10-100mm,H:10-150mm
Suitable tueb size
Diameter: 10-30mm
Voltage
110V/220V/380V
Machine size
1800(L)×  800(W)×  1500 (H) mm

1. Printer device
Thermal transfer printer , printing date and batch number on labels.

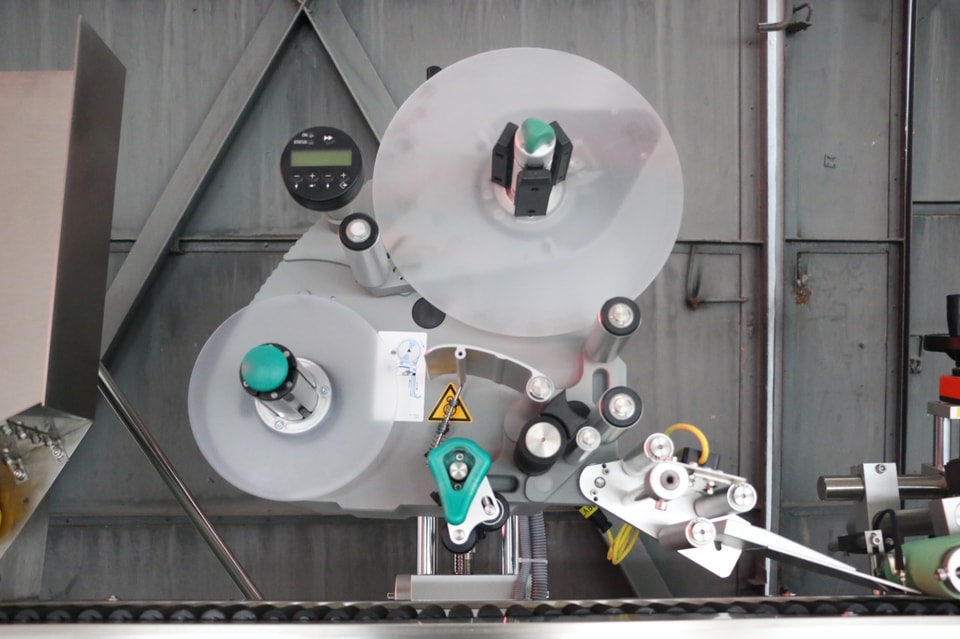

2. German NOVEXX Labeling engine

Machine with two years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation
