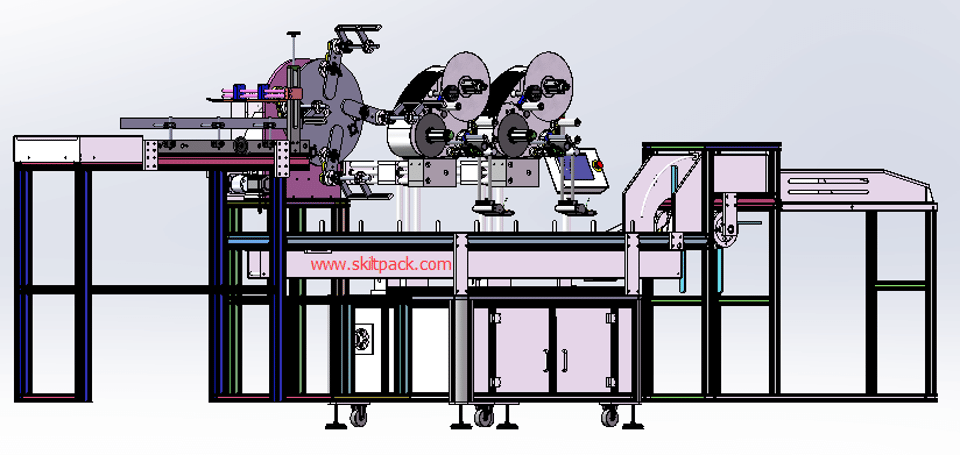

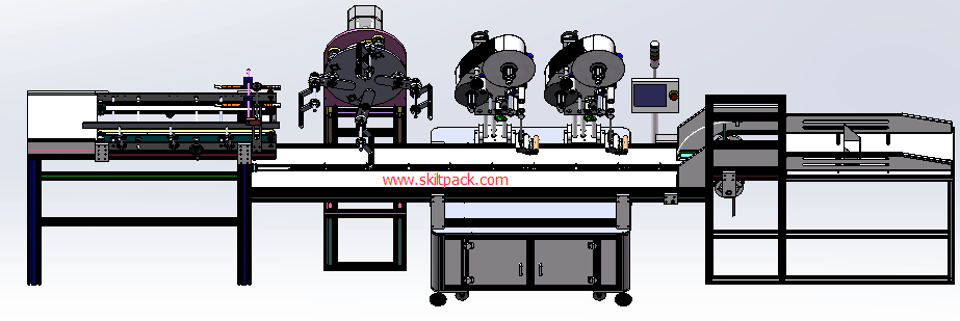

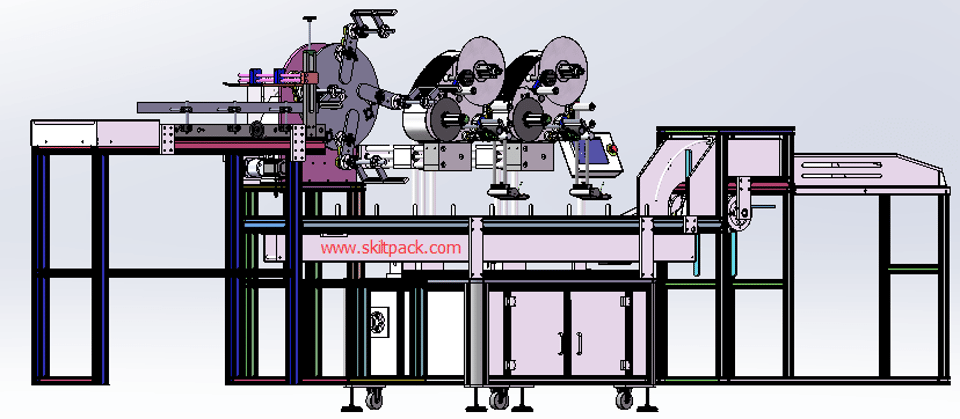

- 3D VIEW
- SERVICE

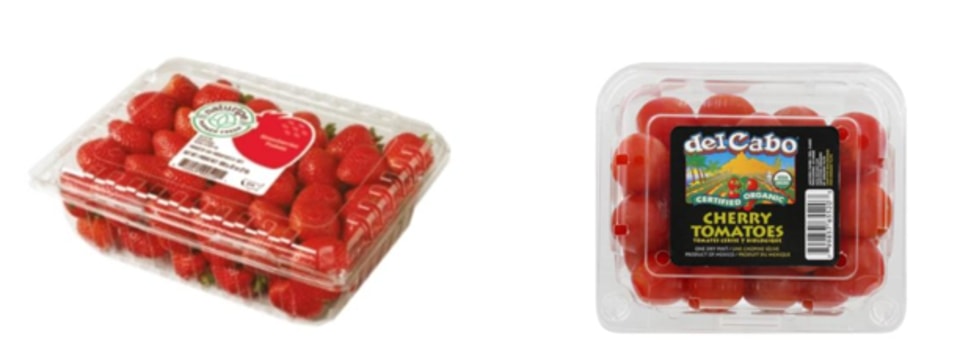

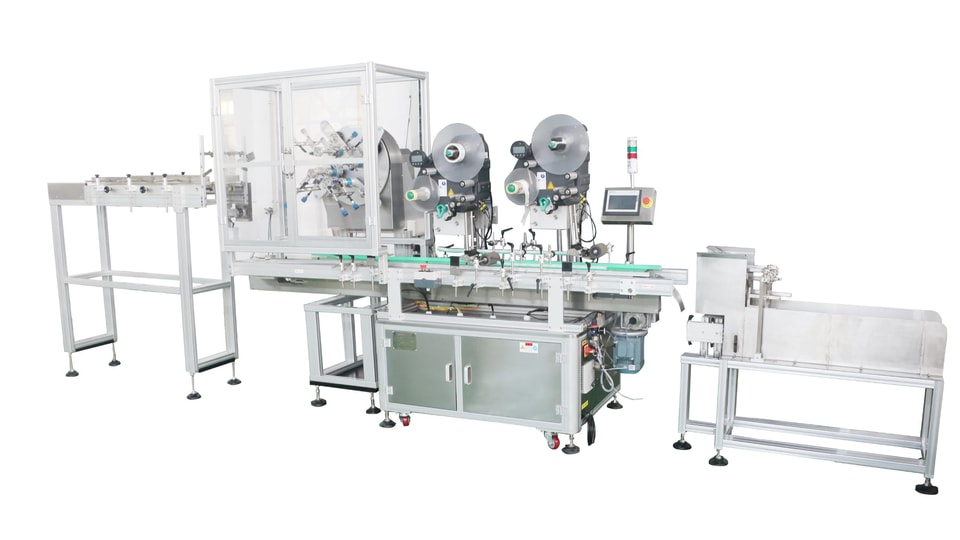

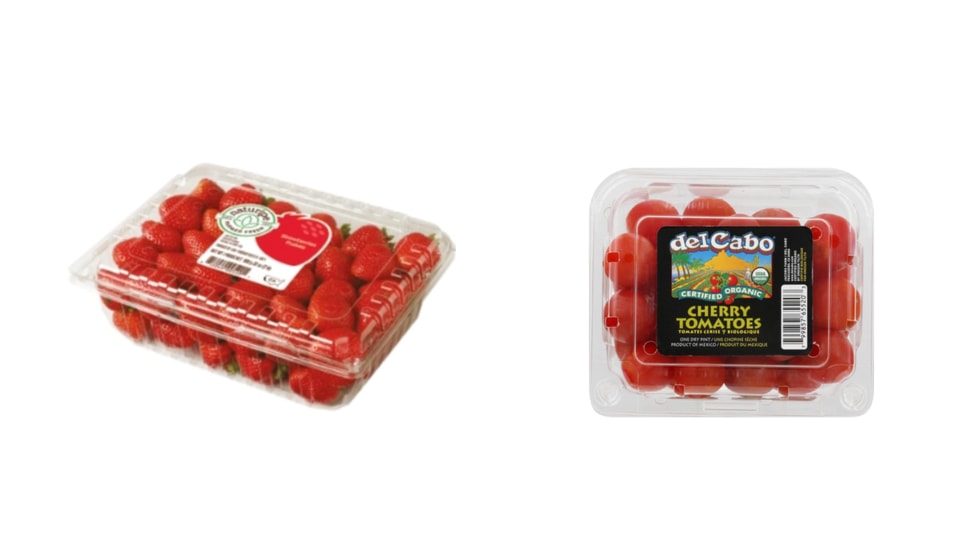

SKIILT high-speed continuous-motion machine designed specially for labeling and re-nesting clamshells and trays,
with tray counting functionality for distribution.

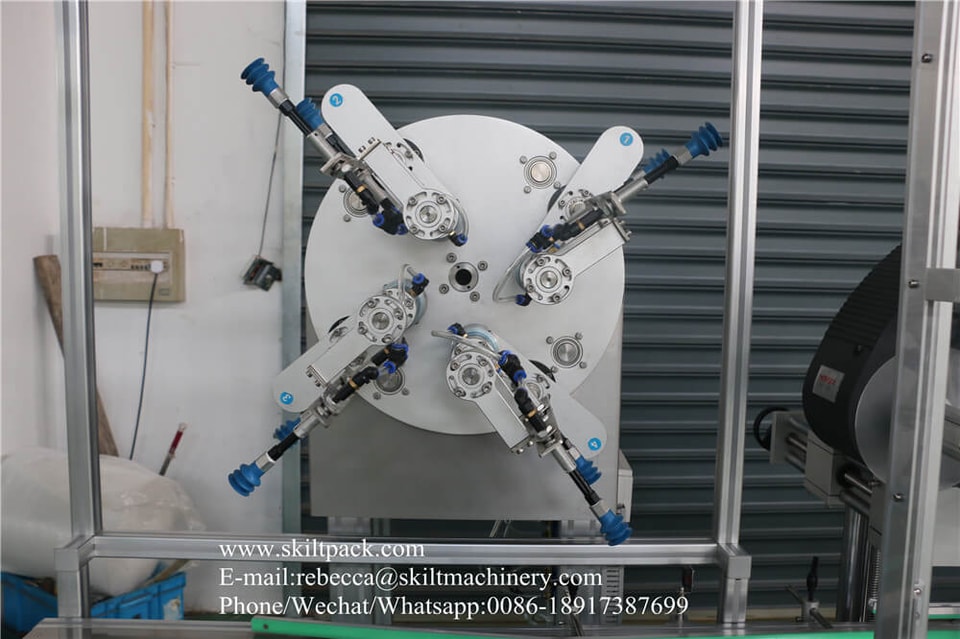

The system utilizes a four-arm, four-stop patented secondary motion rotary placer for picking of product.

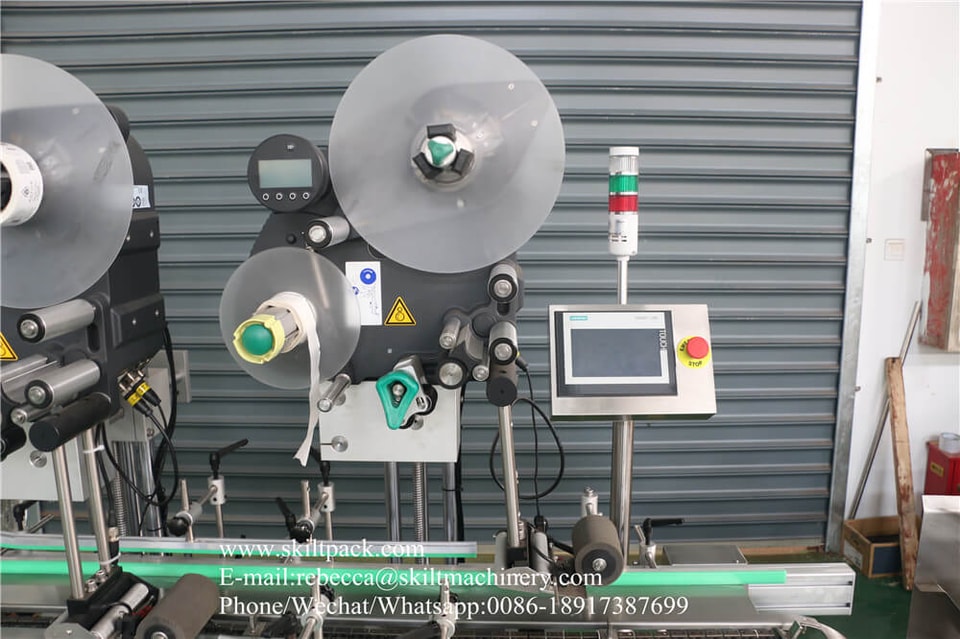

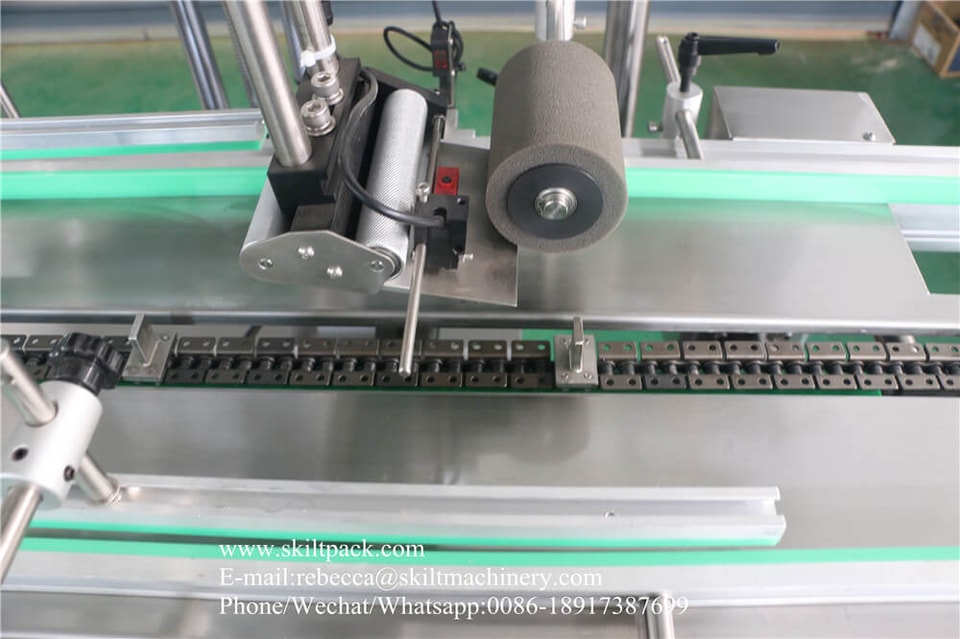

One tamp-style labeller is integrated with this machine to label the lid top, or two tamp-style labellers integrated to label both the lid and the base together.
Model | DPM-SF |
Driving Mode | German Novexx labeling engine & Servo motor control |
Yield（pcs/min） | 50-180 (depends on container and label size) |
Operating direction | Left or Right |
Conveyor Speed（m/min） | ≤40 |
Labeling Accuracy | ±1.0 mm |
Inner diameter of label roll | 76 mm |
Outer diameter of label roll | 350 mm(max) |
Suitable label size | Width 15-110 mm length 15-250 mm |
Suitable labeling products size | Can customized depends on client product |
Printer use air | 5kg/cm ² |
Voltage (can customized) | 110V/220V/380V |
Power（KW） | 3.5KW |
Weight（kg） | 500 |
Machine size | 4000（L） 1830 (W) 1040 (H) mm |
No | Name | Brand |
1 | HMI (Touch screen) | SIEMENS |
2 | programmable control (PLC) | SIEMENS |
3 | Labeling engine | German NOVEXX |
4 | Sensor (check product) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Low voltage circuit breaker, terminal, relay | France Schneider |
7 | Converter servo motor | TaiWan DELTA） |
8 | Auto feeder device | Panisonic |
9 | Auto feeder device | Panisonic |
Auto collection device | MHMF042L1U2M |
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
