SKILT FOCUS STICKER LABELING MACHINE since 1998, one of the toppest bottle labeling machine,round bottle labeling machine,automatic labeling machine manufacturer in China.

  • INTRODUCTION
  • CONFIGURATION
  • PARAMETER
  • OPTIONAL
  • SERVICE

Wrap-around labeling solution

1. A large area of application for round bottle/jars/cans labeling,usually labeled wrap around ;

2. In pharmaceutical is indispensable for vial labeling, bill bottle labeling ;

3. Labeling of cosmetics, shampoo bottle wrap around labeling, detergent round bottle labeling;

4. Confectionery and good labeling from jam in jars to cereals in cans labeling wrap around ;

5. Chemical products paint round cans labeling and much more ;

Optional Features

1. Turntable at infeed and outfeed for round bottle labeling machine ;

2. One more labeling engine for machine not stop working when change label roll;

3. Visual camera detection function for printing content ;

4. Sensor for label use up, machine alarm ;

5. Sensor for product lack of label , tick it out ;

6. Machine hight can customized depends on client production line.

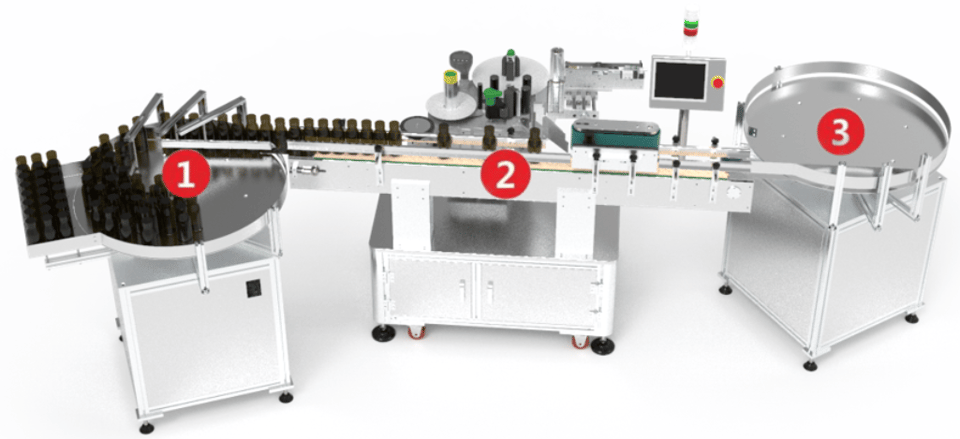

Machine Detail Function

Part1: Auto infeed turntable, diameter with 600mm  800mm 1000mm optional.

Part2: Labeling part,rolling label device made depends on client products Max size,labeling engine with SKILT servo control system and German Novexx ALS204 optional.

Part3: Auto outfeed turntable for collection.


No Name Brand
1 PLC control system SIEMENS
2 Touch-screen SIEMENS
3 Labeling engine

Panisonic & GERMAN novexx

4 Frequency converter

DELTA

5 Check bottle sensor
Japan KEYENCE
6 Check opaque label sensor
German Leuze
7 Main transport motor JSCC
Model
PLM-A & PLM-ALS204
Driving Model
Servo system & German Novexx
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
50-200pcs/min
Suitable label size
L:10-300mm,H:10-250mm
Suitable bottle size
Diameter: 28-100mm , H:30-260mm
Voltage
110V/220V/380V
Machine size
1800(L)×  800(W)×  1500 (H) mm

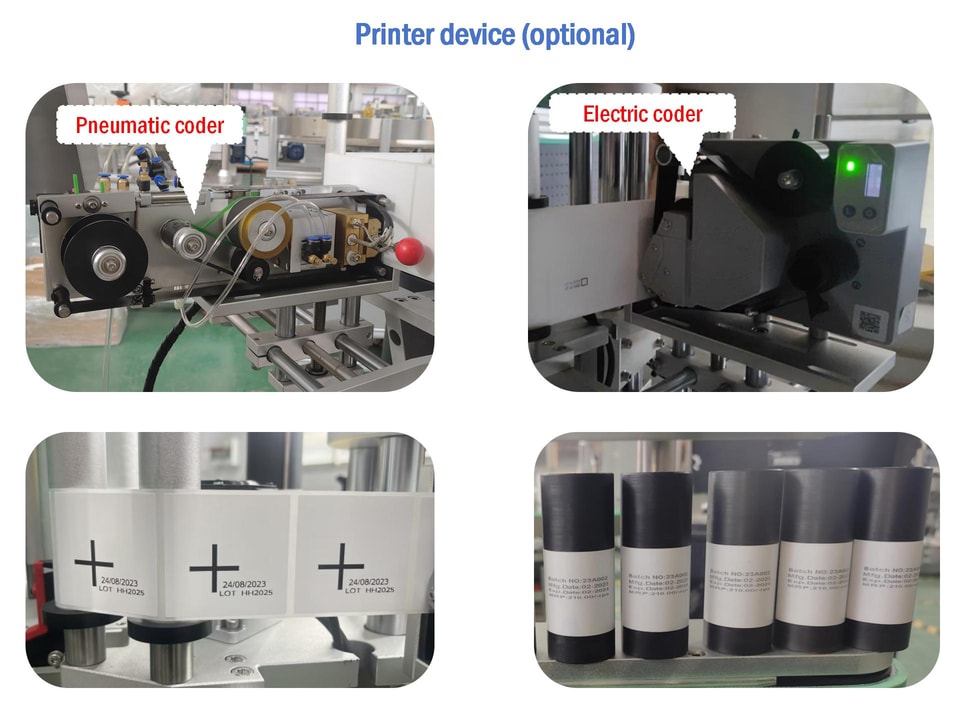

1. Printer device
Thermal transfer printing way , printing date and batch number on labels.

2.Turntable

If machine not connect with production line, suggest choose turntable more convenient for operation.



3.GERMAN NOVEXX Labeling engine


Machine with two years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation
