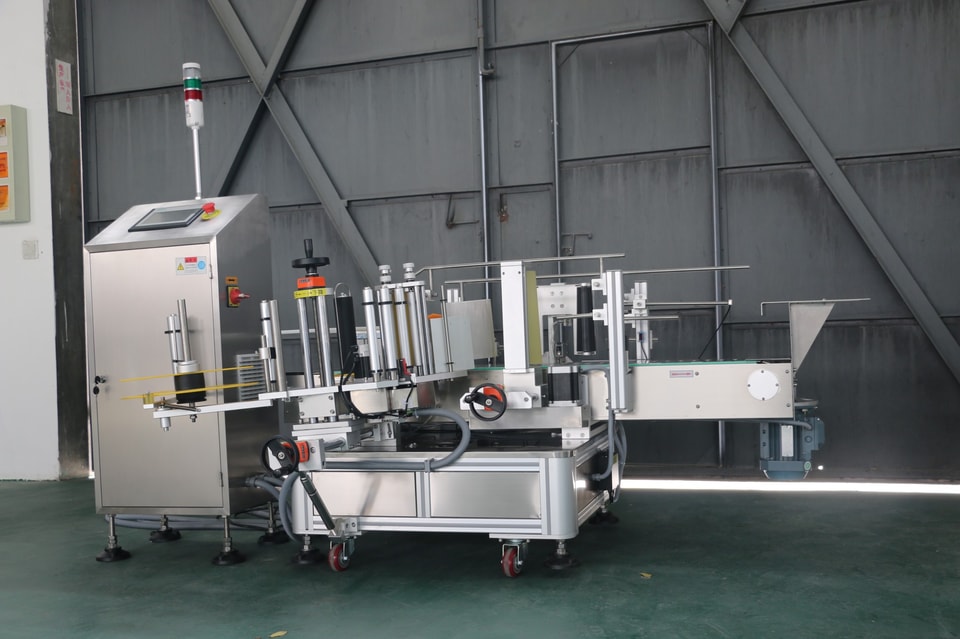

Fully automatic labeling machine for bucket and cans
1. The systems of DLM-S model for labeling medium-sized containers such as buckets,paint cans and canisters in all sectors such as food, chemicals, paints and varnishes,
regardless of whether they are oval, round or rectangular plastic or metal containers.
2. Depending on customer requirement, bucket can be aligned before the labeling process and plastic or metal handles can be brought into the position required for labelling.
3. Optionally, the labeling system can be expanded with additional labeling stations in order to apply a lid label if necessary.
Equipment options
1. TTO module
2. camera system(s)
3. Rejection station
4. Backup labeller
5. Turntable
6. Buffer table
7. Label rejection
8. Lid labeller
9. Bottom labeller
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine Servo motor | Panisonic |
| 4 | Labeling engine drive | Panisonic |
| 5 | Frequency converter | Delta |
| 6 | Check bucket sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | JSCC |
| Model | DLM-S |
| Driving Model | Servo system |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 20-80pcs/min |
| Suitable label size | L:10-250mm，H:10-300mm |
| Suitable bucket size | Can customized |
| Voltage | 110V/220V/380V |
| Machine size | 2400（L）× 1500(W)× 1500 (H) mm |
Thermal transfer printer , printing date and batch number on labels.
① Machine with two year warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely ;
④ Range experienced engineer come to client company for installation；
