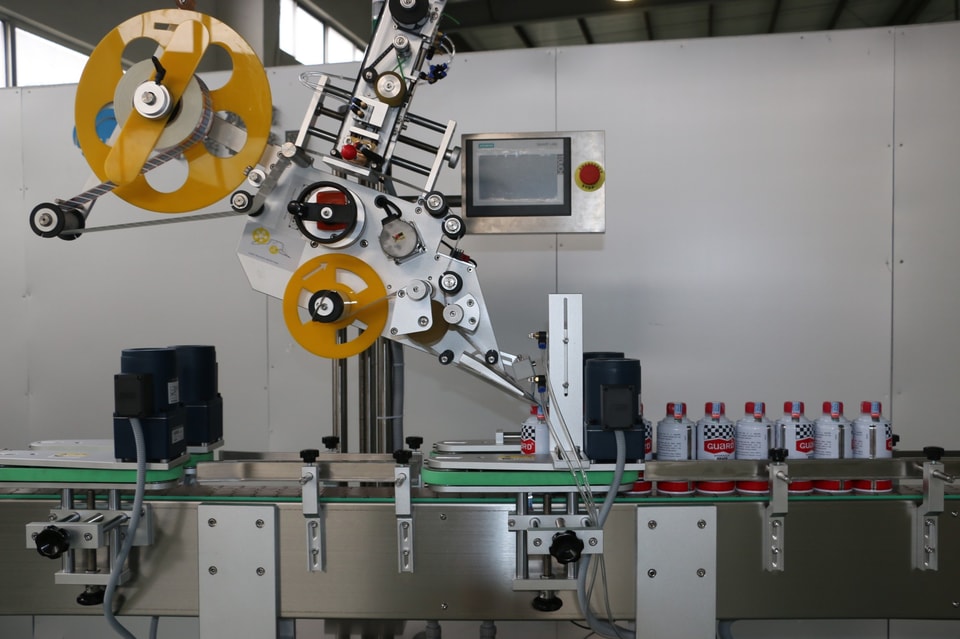

L Shape Tax stamp Labeler for Box/Bag/Container

  • PARAMETER
  • CONFIGURATION
  • INTRODUCTIOON
  • OPTIONAL
  • SERVICE
PARAMETER
ModelDPM-A & DPM-ALS204
Label materialSelf-adhesive sticker, opaque or transparent label
Driving modelServo control system & German NOVEXX
Yield(pcs/min)30-180
Suitable label size Width 15-110 mm  length 15-300 mm
Suitable product size Can customized
Use air5kg/cm ²
Voltage 110V/220V/380V
Machine size1800(L) 800 (W)  1600 (H) mm
CONFIGURATION
NoNameBrand
1PLC control systemSIEMENS
2Touch-screenSIEMENS
3Labeling engine Servo motorPanisonic
4Labeling engine DrivePanisonic
5Frequency converterDelta
6Check product sensorJapan KEYENCE
7Check opaque label sensorGerman Leuze
Check opaque and transparent label sensorGSU

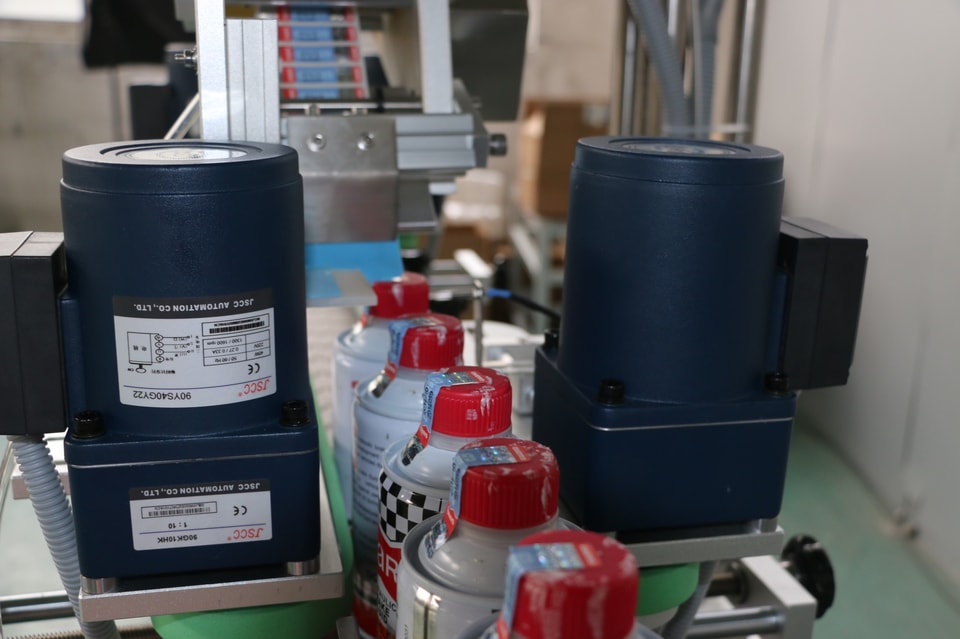

8Main transport motorJSCC
INTRODUCTIOON

Seal and tamper-evident labeling l L Shape U Shape Stamp Label applicator


In addition to the duties of providing information and identifying the product, labels are increasingly assuming special functions.

Closing or sealing packages is certainly among the most important roles. An increasing number of medications, for example,
require that tamper-evident devices be applied, possibly in the form of a label.

Labels also play an important role in the convenience food trend, which includes baked goods, sandwiches, sushi boxes, fruit cocktails, confectionery and so on.They contain important variable information about the ingredients, expiration date or weight.At the same time, they securely seal the packaging.

For that reason, the technology is not only called tamper-evident or seal labeling, but also over-corner labeling or L, C or U labeling.

SKILT provides a variety of innovative solutions for this area of application, which also take the very special requirements for
harmaceutical labeling and food applications into consideration.

With application as follow :

Tax label on liquor bottle labeling ;
Security seal labeling for medicine box ;
Security seal for cigarette case labeling Tax stamp ;
Tax stamp shape label appicator for food box ;
Box bottle L shape labeling ;
Beer bottle cap L shape laebling ;



OPTIONAL

German NOVEXX Labeling engine


SERVICE

Machine with TWO year warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation
