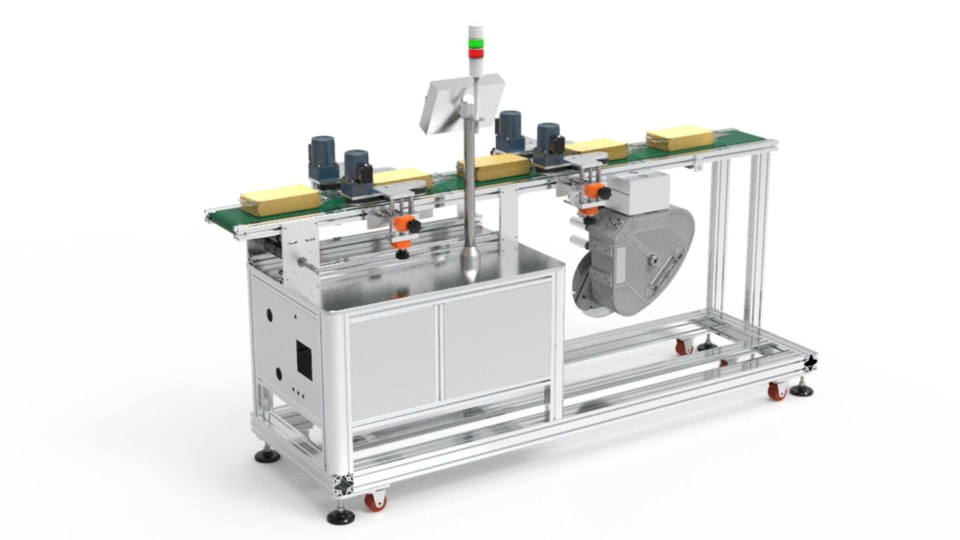

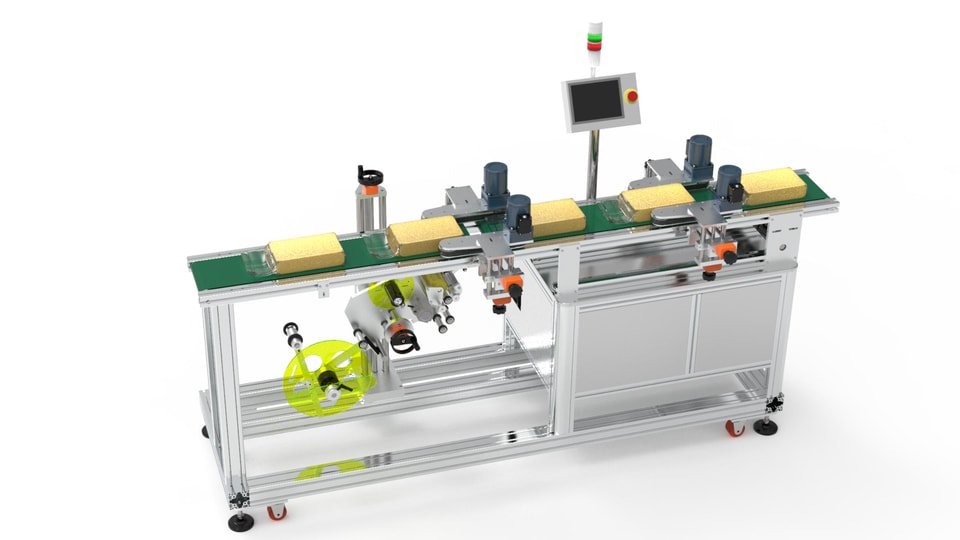

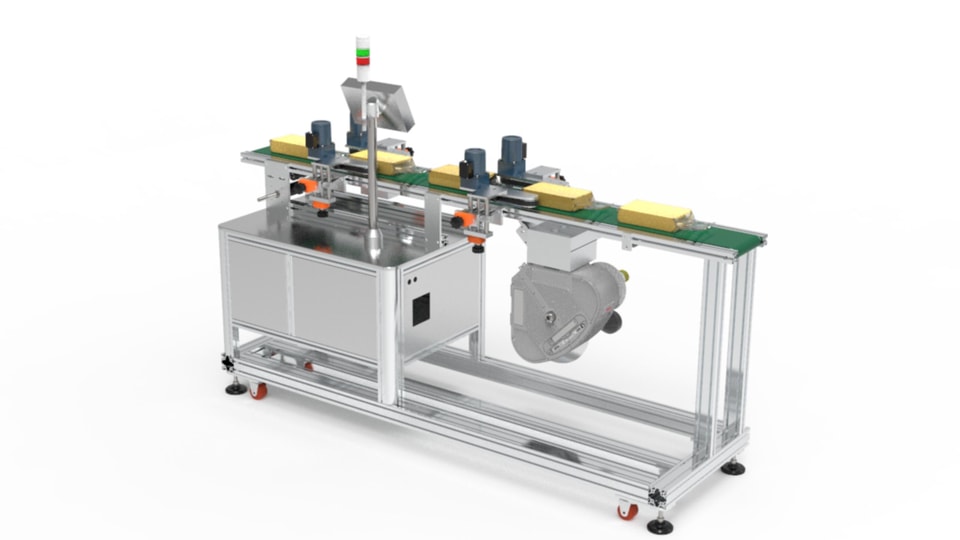

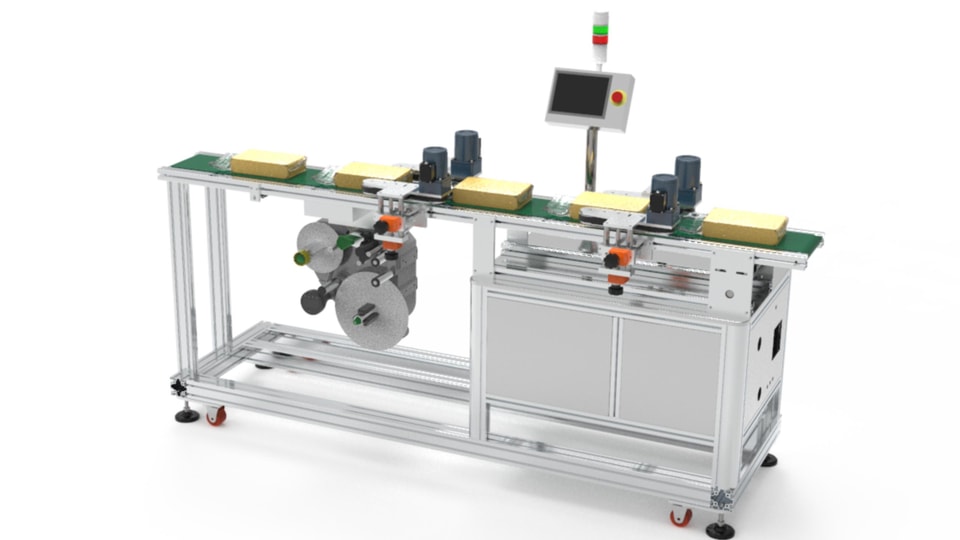

Bottom Labeler on Bottle/Jar/Cans

Video

INTRODUCTION

● Suit for different shape and size of bottle cans jars labeling on bottom surface;

● Can operation alone or connect with production line;

● Machine can customized;

● With Printer device optional.

CONFIGURATION

No	Name	Brand
1	PLC control system	SIEMENS
2	Touch-screen	SIEMENS
3	Labeling engine Servo motor	PANISONIC
4	Labeling engine Drive	PANISONIC
5	Check opaque label sensor	German Leuze
6	Check labeling products sensor	Japan KEYENCE
7	Main transport motor	JSCC

PARAMETER

Model	BLM-A & BLM-ALS204
Driving Model	Servo control system & German NOVEXX
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	20-180pcs/min
Suitable label size	L:10-150mm，H:10-150mm
Suitable labeling product size	L: 40-300mm , H:40-300mm
Voltage	110V/220V/380V
Machine size	1800（L）× 800(W) × 1500 (H) mm

OPTIONAL

Printer device
Thermal transfer printer , printing date and batch number on labels.

German NOVEXX labeling engine

SERVICE

① Machine with one year warranty；

② Supply operation training for client workers ；

③ If with quality problem, provide technical support and supply wearing parts timely ;

④ Range experienced engineer come to client company for installation；
