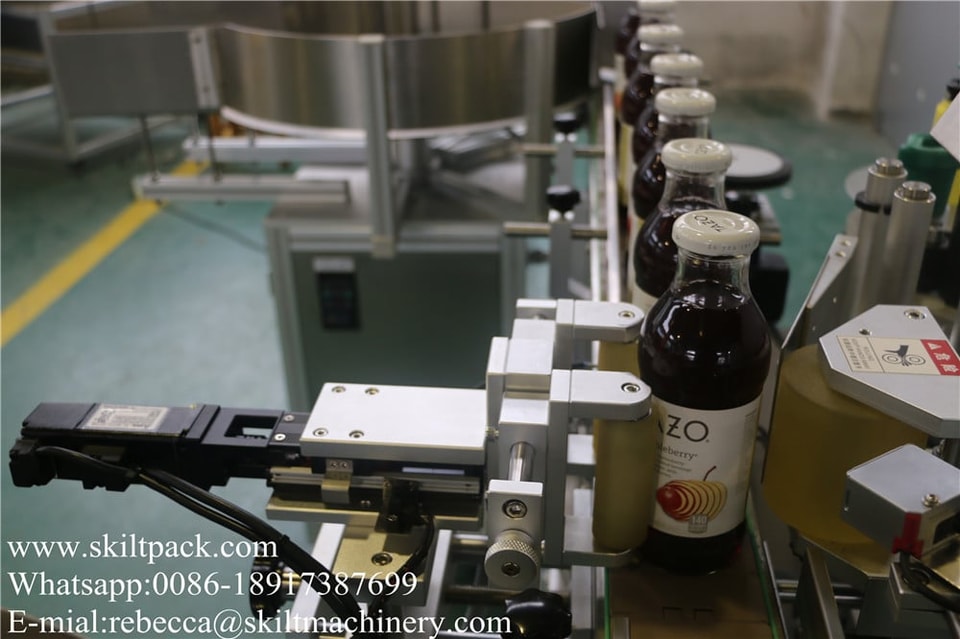

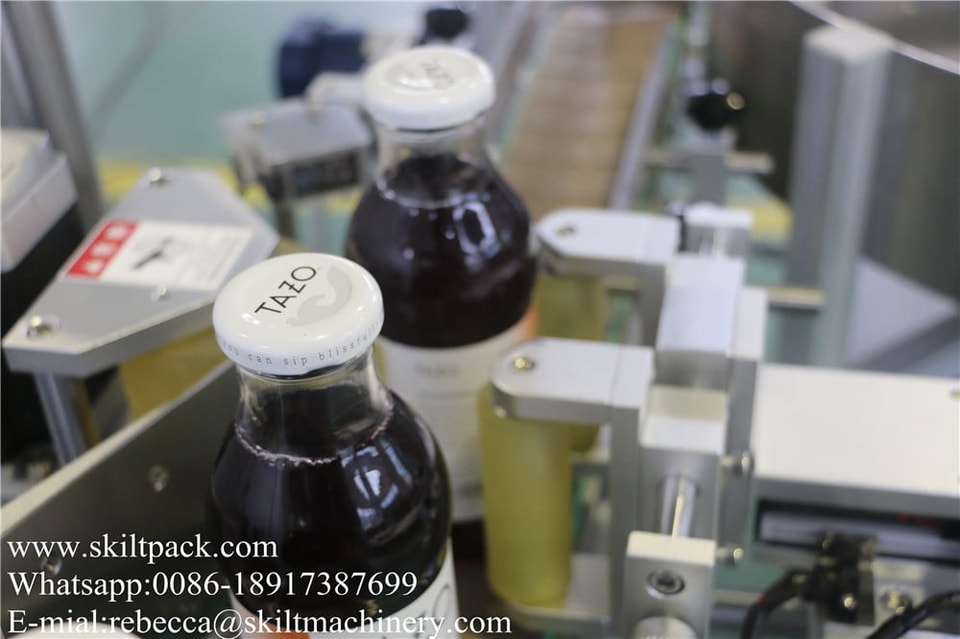

Bottle With Handle Labeler

Home > Products > Catalogues > Bottle With Handle Labeler

video

Parameters
Main Electrical Configuration
For Ref
Optional

Parameters

Model	PLM-DS
Driving Mode	German Avery 104
Operating direction	Left or Right
Conveyor Speed（m/min）	≤40
Labeling Accuracy	±1.0 mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	350 mm(max)
The suitable size of label	Width 15-100 mm length 15-150 mm
The suitable size of labeling objects	Can customized depends on client product
Printer use air	5kg/cm ²
Voltage (In China)	AC220V 50/60HZ Single phase (Can customized as client need)
Machine size	1800（L） 800 (W) 1500 (H) mm

Main Electrical Configuration

No	Name	Model	Unit	Brand
1	PLC control system	288-1ST20-OAAO	1 Set	SIEMENS

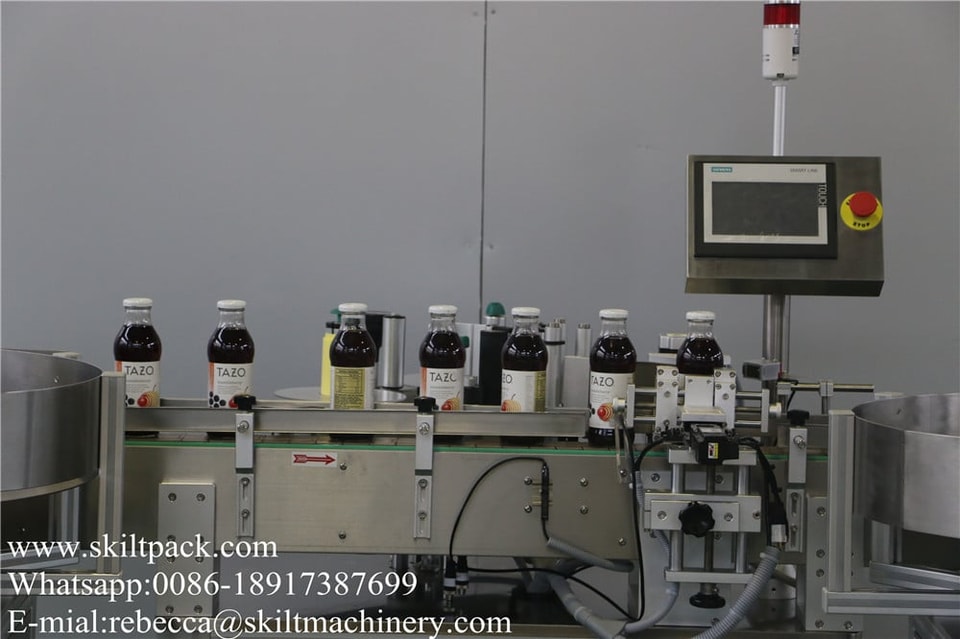

2	Touch-screen	648-OCC11-3AXO	1 Piece	SIEMENS

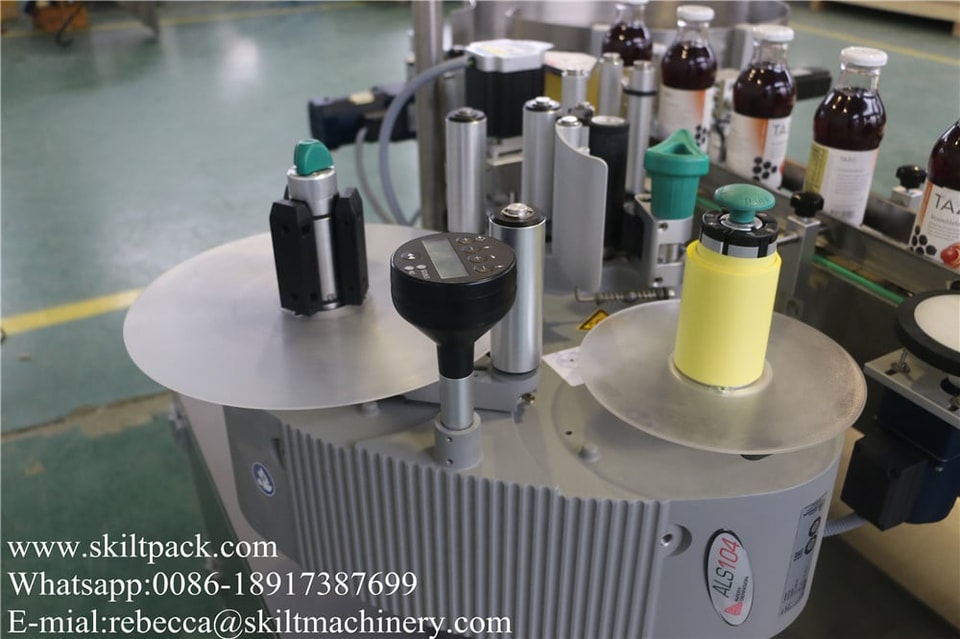

3	Labeling engine Servo motor	ALS104/204/206	1 set	German Avery
4	Labeling engine Drive	ALS104/204/206	1 set	German Avery
5	Frequency converter	6SL3210-5BB15-5UV0	1 set	SIEMENS
6	photoelectric sensor (check products)	FS-N18N	1 set	Japan KEYENCE
7	Photoelectric sensor (Check opaque label）	GS61/6.2	1 set	German Leuze
7	Photoelectric sensor (Check opaque and transparent label）	GSU 14B/66.3-S12	1 set	German Leuze
8	Main transport motor	90YS90DV22	1 set	JSCC

For Ref

Red wine labeling machine
Bottle special position labeling machine
Water bottle fix position labeling machine
Drawing

video

Auto fix position labeling machine
Cans fix position labeling machine

Optional

1. Printer device
Thermal transfer printer, printing date and batch number on labels.

2.Turntable
If machine not connect with production line, choose turntable connect with labeling machine, it will be more convenient for worker operation.

Printer device
Turntable
