SKILT focus auto sticker labeling machine since 1998, professional auto card paging labeling machine,card label applicator manufacturer in China.

  • INTRODUCTION
  • CONFIGURATION
  • PARAMETER
  • OPTIONAL
  • SERVICE




Ma  Machine Features Introduction

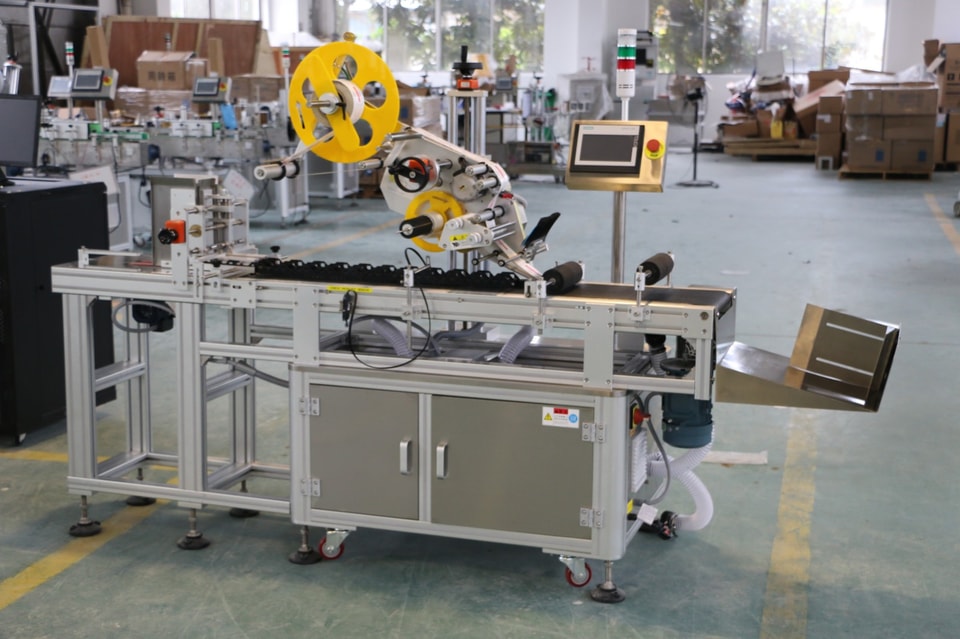

1.SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction belting.

2.With different kinds auto outfeed for choose, to suit for client differnet kinds products, such as zip bag, pouch, food bag, card;

3.This series labeling machine can store up to 20 different product profiles consisting of different label sizes,
speed and location of label placement within the machines memory for quick recall during changeover.


WHAT DOES IT HAVE?

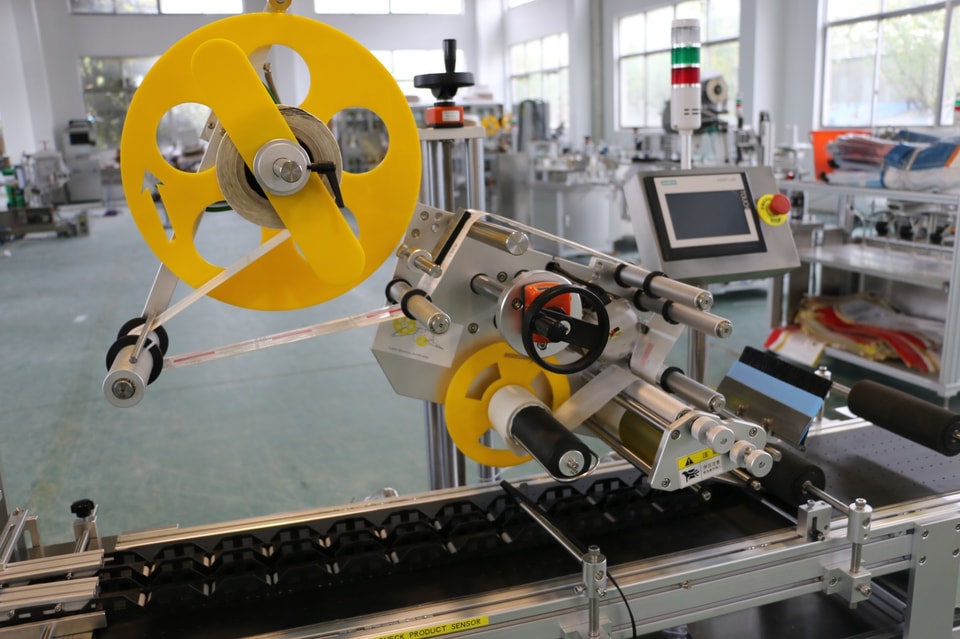

Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed
Label Counter, Missing Label Detection and Auto Teach
+/- 1 mm Label Placement Accuracy
High Friction Conveyor Belt
Speed Encoder to lock label dispense speed with conveyor speed

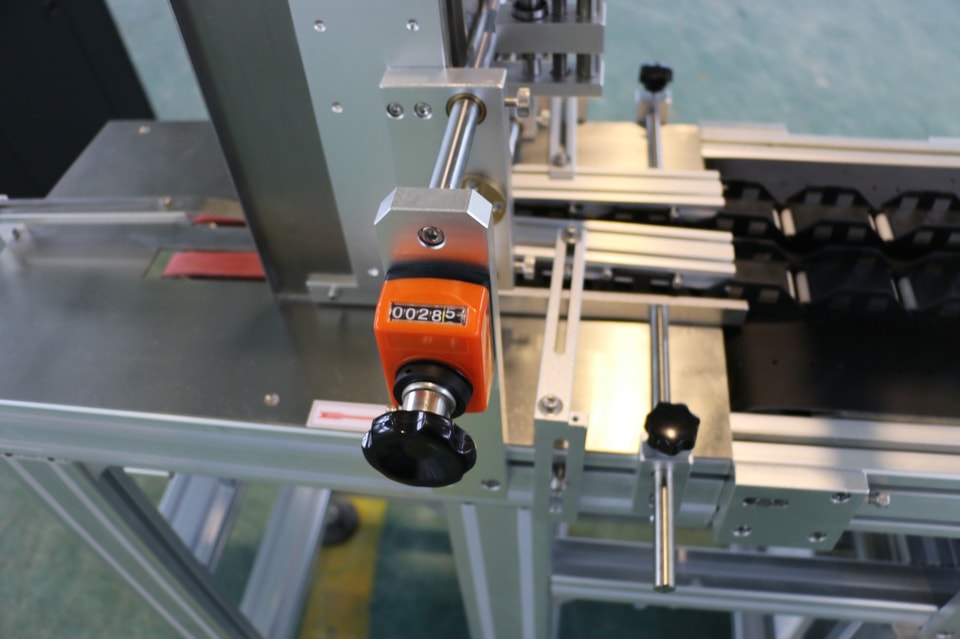

Fully adjustable guide railing for quick changeover


WHAT COULD IT HAVE?

Up to 6″ Label width with the ALS206 label head
Up to 9″ Label Width with the ALS209 label head
Different kinds outfeed collection way for choose
Hot Stamp Coder or Inkjet Coder
Online Print Applicator
One more applicator for two stickers on bags
Conveyor width and length modification

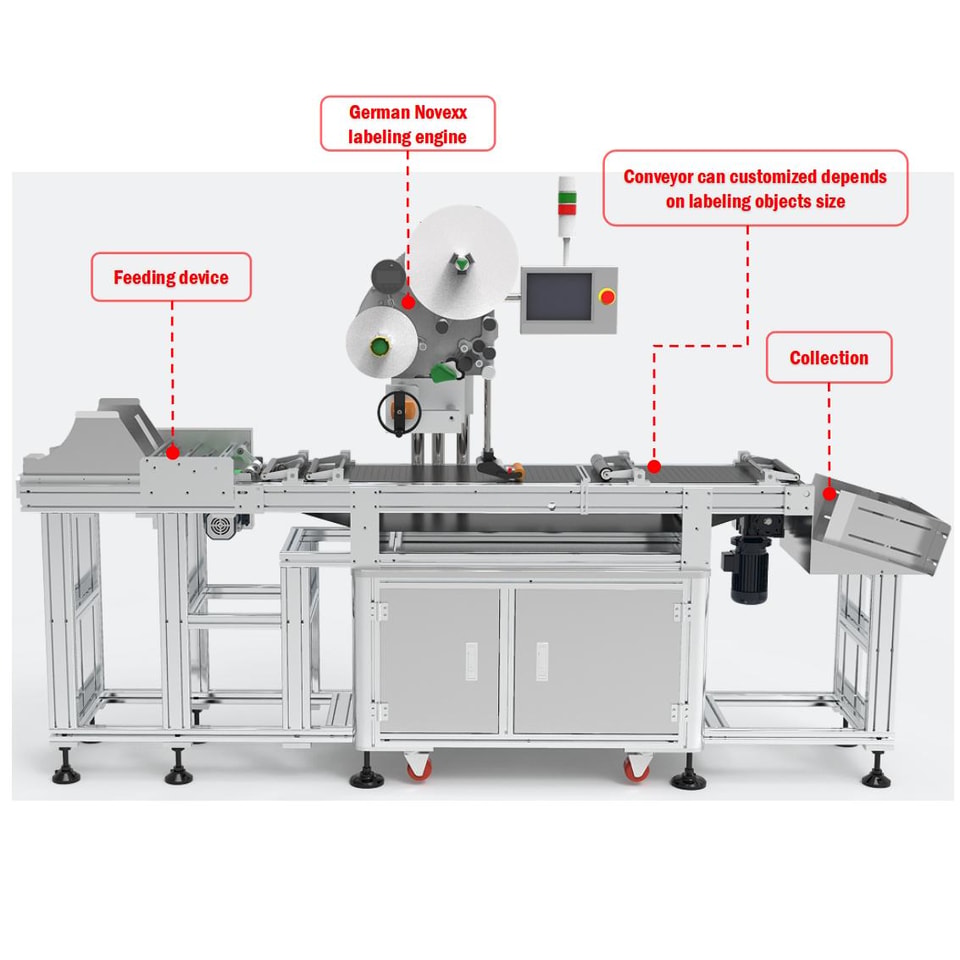

Machine Each function introduction :

1.Feeder : Paging device, can put labeling objects (for example bag ) into feeder device,  delivery out one by one;

2.Labeling :  When bag delivery to the labeling position, past sticker on bag surface directly;
Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.

3.Collection :  After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.



No Name Brand
1 PLC control system SIEMENS
2 Touch-screen SIEMENS
3 Labeling engine control system Panisonic & German NOVEXX
4 Labeling engine Drive Panisonic
5 Frequency converter DELTA
6 Check card sensor Japan KEYENCE
7 Check label sensor German Leuze
8 Main transport motor JSCC
Model PM-DPM-A & PM-DPM-ALS204
Driving Model
Servo system & German Novexx
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
50-200pcs/min
Suitable label size
L:15-300mm,W:15-300mm
Suitable card size
L:20-300mm , W:30-300mm
Voltage
110V/220V/380V
Machine size
2200(L)×  800(W)×  1600 (H) mm


1.Visual inspection system :
After labeling, bags delivery to visual inspection system, camera start working and detect labeling accuracy,  unqualified product will be take out into waste box;


2. Collection  device:
With double layer collection device and conveyor collection device for optional ;


3. German NOVEXX Labeling engine


Machine with two years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely ;

④ Range experienced engineer come to client company for installation
