Box Corner Seal Labeler

  • INTRODUCTION
  • CONFIGURATION
  • PARAMETER
  • OPTIONAL
  • SERVICE
INTRODUCTION

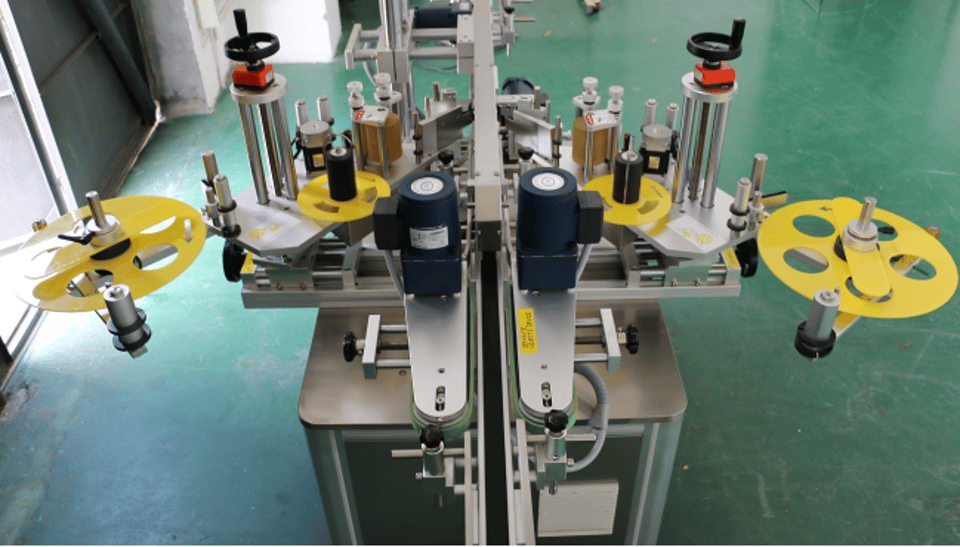

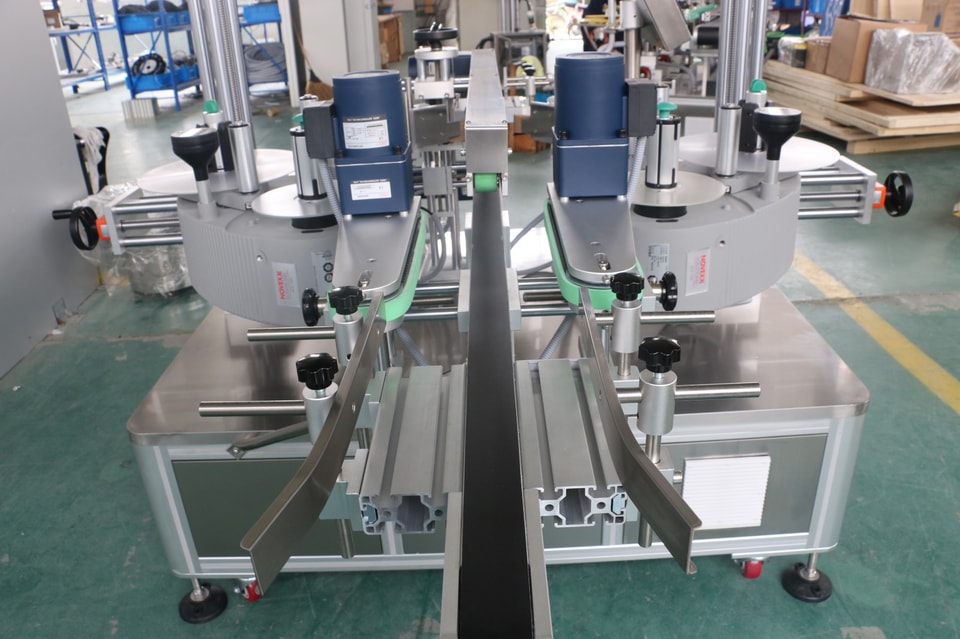

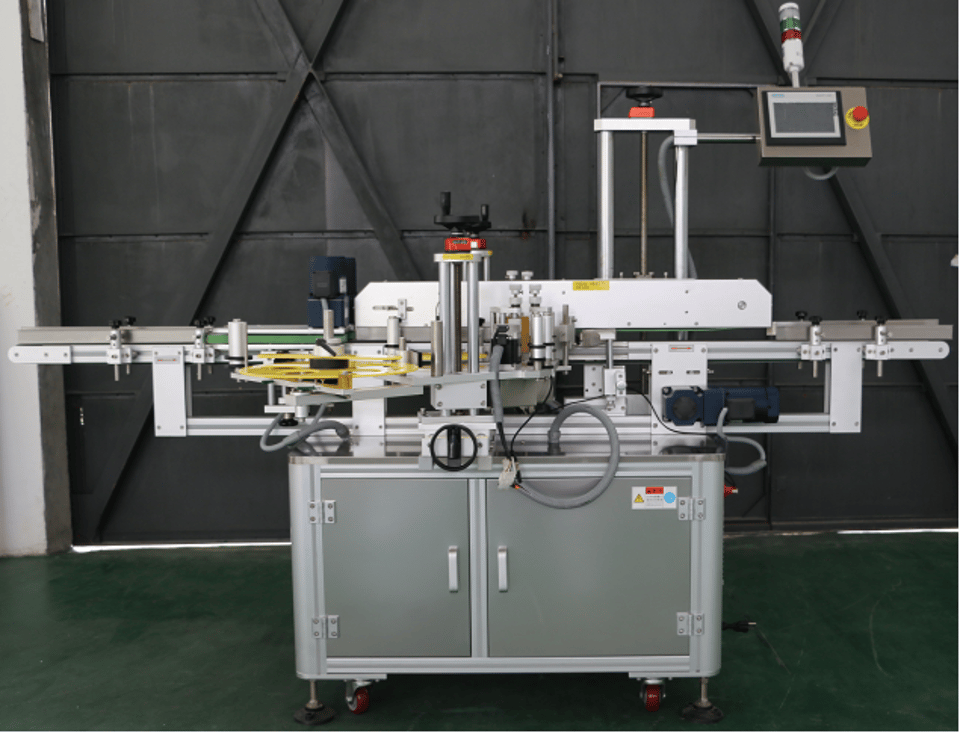

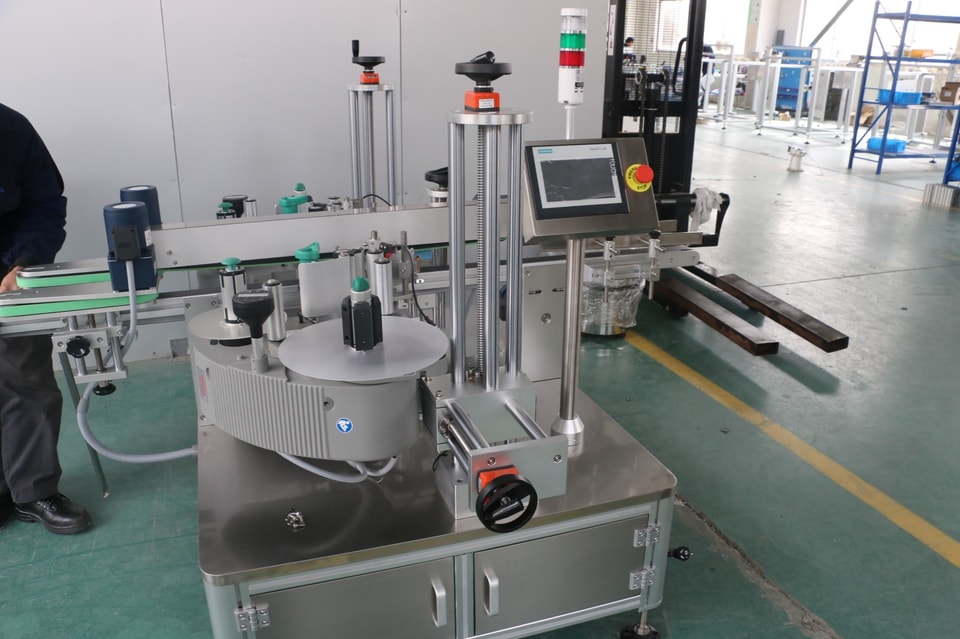

Automatic labeling machine for seal labelling  l Tamper Evident labeling


Basic concept for seal labeling and closure labeling:

1. Due to increasing product counterfeiting, many manufacturers are forced to make their products tamper-proof and counterfeit-proof.

2. There are legal requirements for this in some countries. We have developed model BFM for this task.

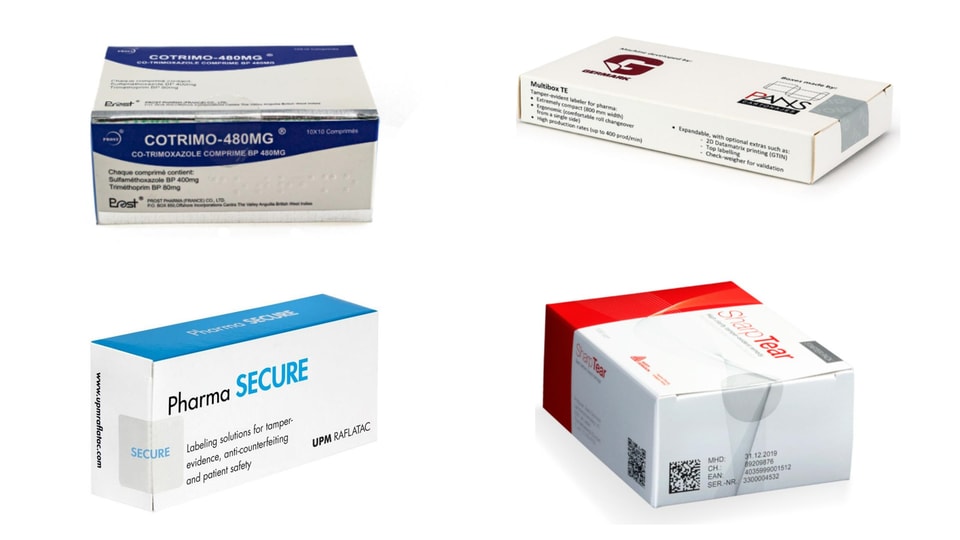

3. The system enables one-sided and/or two-sided seal labeling of pharmaceutical folding boxes.

4. This system also used in the cosmetics industry.

Equipment options:

1. TTO module;

2. Camera system(s);

3. Rejection station(s);

CONFIGURATION
NoNameBrand
1PLC control systemSIEMENS
2Touch-screenSIEMENS
3
Labeling engine

PANISONIC & German NOVEXX

4InverterDelta
5

Sensor(check carton box)

Japan KEYENCE
6

Sensor(Check opaque label)

German Leuze

Sensor(Check transparent  label)

GS61
7Main transport motorSwitzerland ABB
8Separate Box MotorGerman JSCC
PARAMETER
ModelBFM-A
Driving Model
servo system & German Novexx
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
50-200pcs/min
Suitable label size
L:15-100mm,W:15-100mm
Suitable box size
L:20-200mm , W:30-200mm
Voltage
110V/220V/380V
Machine size
2200(L)×  800(W)×  1600 (H) mm

OPTIONAL
German NOVEXX Labeling Engine


SERVICE

Machine with two years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely ;

④ Range experienced engineer come to client company for installation
