FOCUS STICKER LABELING MACHINE is one of the toppest Carton Corner Labeling Applicator in China.During these years of exporting , FOCUS STICKER LABELING MACHINE now has rich experience in the worldwide markets

  • Parameters
  • Main Electrical Configuration
  • Optional
Model BFM-ALS104
Driving Mode German Avery brand
Yield(pcs/min) 20-120
Operating direction Left or Right
Conveyor Speed(m/min) ≤40
Labeling Accuracy ±1.0 mm
Label material Adhesive sticker, opaque or transparent label
The inner diameter of label roll 76 mm
The outer diameter of label roll 350 mm(max)
The suitable size of label Width 15-80 mm  length 15-100 mm
The suitable size of labeling objects Can customized
Printer use air 5kg/cm ²
Voltage (In China) AC220V 50/60HZ Single phase
(Can customized as client need)
No Name Model Unit Brand
1 PLC control system 1763-L16BBB 1 Set SIEMENS
2 Touch-screen TPC7062KW 1Piece SIEMENS
3
Labeling engine servo motor
ALS104/204/206
1set

German Avery

4 Labeling engine driver ALS104/204/206
1set

German Avery

5 Inverter 22F-A2P5N103 1piece Delta
6

photoelectric sensor

(check product)

FS-V11/-FV-35FA 1set Japan KEYENCE
7

Photoelectric sensor

(Check opaque label)

GS14 2sets German Leuze

Photoelectric sensor

(Check transparent  label)

GS61 2sets German Leuze
8 Main transport motor 370W1:30 1 set Switzerland ABB
9 Separate Box Motor 40W1:30 2sets German JSCC
10 Speed Controller 25-90W 2sets German JSCC

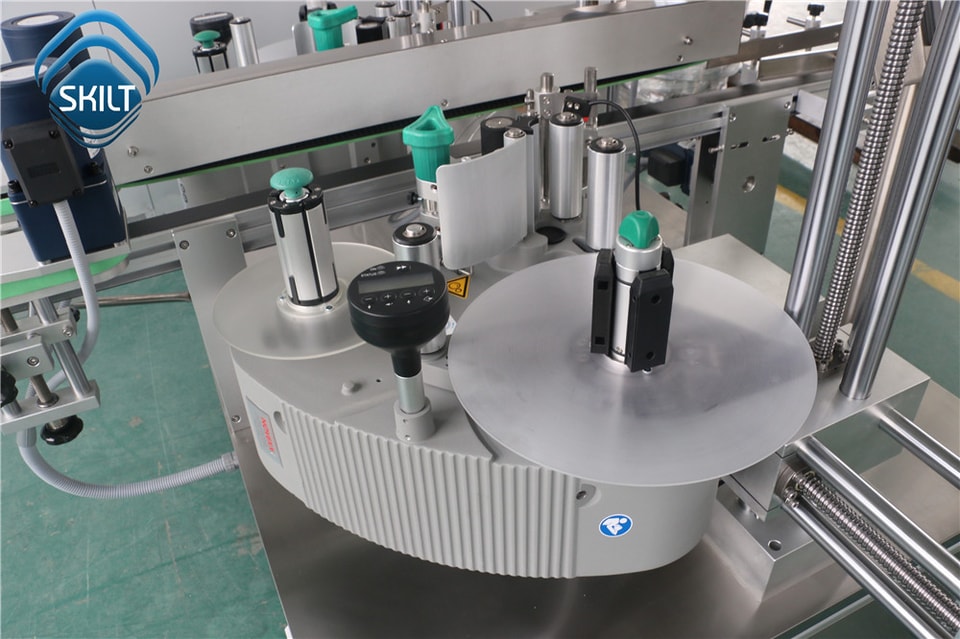

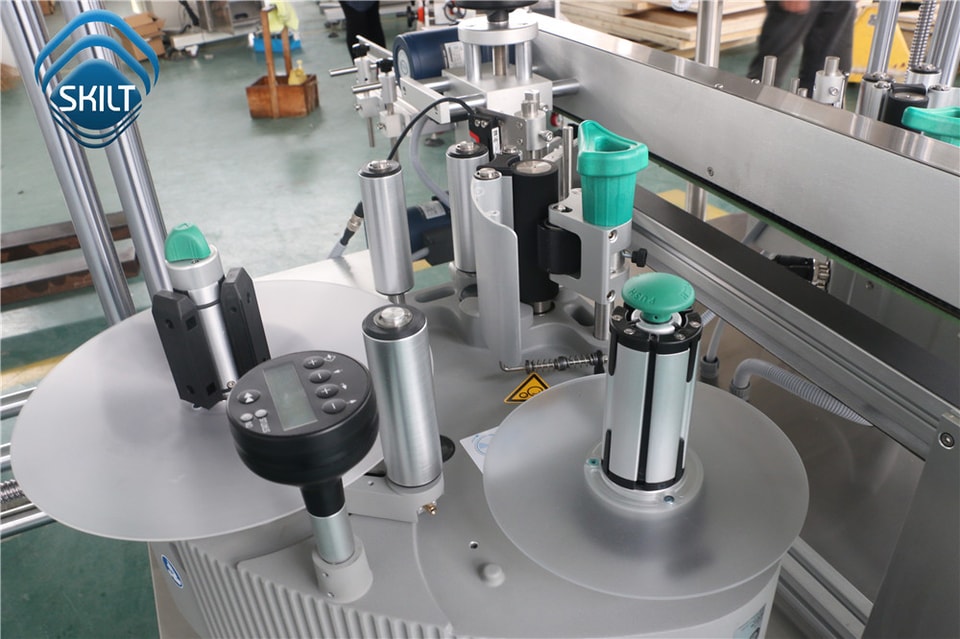

German Avery labeling engine
The labeling Engine use German Avery 104, can check label size directly, don’t need worker for too much adjustment , dust proof and waterproof , with five years guarantee period.
