Online Print and Apply Labeler l Online Printing Label Applicator
· Real-Time Dynamic Labeling: Prints and applies labels instantly with variable data, such as real-time weight, batch codes, shipping barcodes, and timestamps.
· Zero Label Waste: Eliminates the need for pre-printed label inventory, completely avoiding waste caused by product or data changes.
· 100% Automation & Traceability: Seamlessly integrates with ERP/MES systems and weighing scales for error-free data synchronization and supply chain tracking.
· Adaptive Placement Accuracy: Utilizes advanced tamp, blow, or wipe applicators to accurately place labels on the top, side, or corner of moving items.
· High-Speed Continuous Operation: Engineered for fast-paced logistics and production lines, supporting continuous 24/7 printing and pasting without bottlenecks.
· Flexible Modular Design: Supports quick changes of ribbon and label rolls with a highly adaptable structure to fit existing conveyor lines.
These systems are designed specifically for on-demand printing your barcodes, shipping information,
or other information to labels and then applying those labels to a variety of items:
Box , Carton , Cases, Trays, Pallets, Shipping Bags, Packets

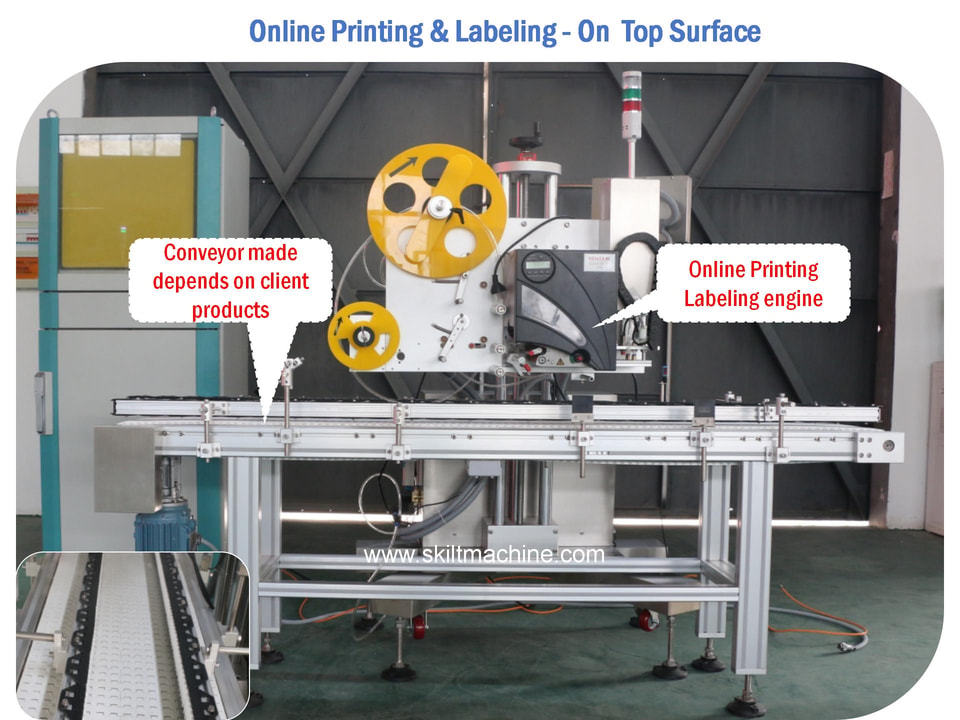

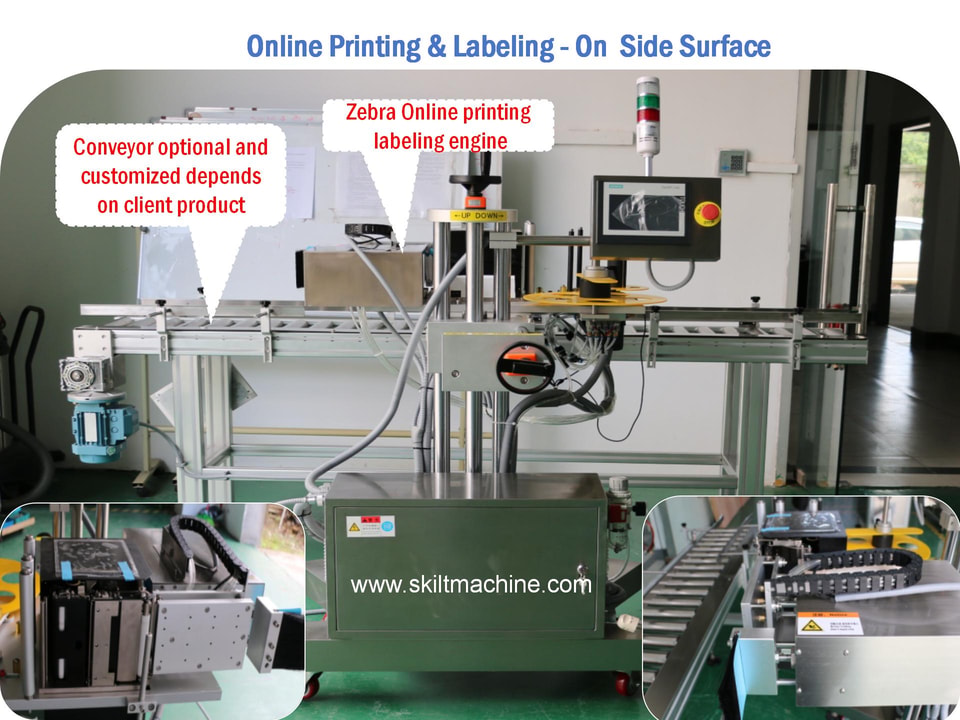

Machine detail pictures
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Photoelectric sensor | German Leuze |
| 3 | Printing engine | German NOVEXX & Zabra |
| 4 | Check box sensor | German SICK |
| 5 | Conveyor motor | German JSCC |
| Model | RPLM-DPM |
| Labeling way | Online printing labeling |
| Labeling position | TOP & Side & Bottom & Corner |
| Label material | Self-adhesive sticker |
| Labeling Speed | ≤80pcs/min |
| Suitable label size | W: ≤50mm、L: ≤100mm |
| Conveyor | Belt or roller conveyor |
| Voltage | 110V/280V/380V |
| Machine size | Customized |
NOVEXX XPA934 PRINT & APPLY ENGINE INTRODUCTION
NOVEXX Solutions Print & Apply Systems are designed to meet today's high standards of product labeling requiement.
The most compact print & apply system on the market can be flexibly integrated into any production line.
They are best suited for industrial environments, high and low product volumes, continuous operation,
and a wide variety of label positions.
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
