Automatic labeling machine for seal labelling  l Tamper Evident labeling

Basic concept for seal labeling and closure labeling:

1. Due to increasing product counterfeiting, many manufacturers are forced to make their products tamper-proof and counterfeit-proof.

2. There are legal requirements for this in some countries. We have developed model BFM for this task.

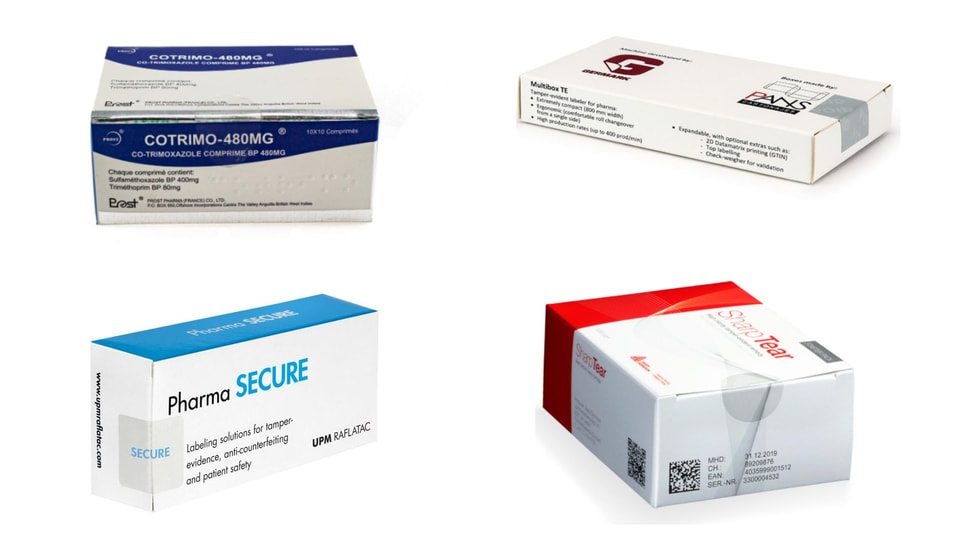

3. The system enables one-sided and/or two-sided seal labeling of pharmaceutical folding boxes.

4. This system also used in the cosmetics industry.


Equipment options:

1. TTO module;

2. Camera system(s);

3. Rejection station(s);

No Name Brand
1 PLC control system SIEMENS
2 Touch-screen SIEMENS

Labeling engine control system PANISONIC & German NOVEXX
3 Inverter Delta
4 photoelectric sensor (check BOX ) Japan KEYENCE
5 Photoelectric sensor (Check opaque label) German Leuze
Photoelectric sensor (Check transparent  label) GS61
6 Main transport motor Switzerland ABB
7 Separate Box Motor German JSCC
Model BFM-A
Driving Model
Servo system & German Novexx
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
50-200pcs/min
Suitable label size
L:15-100mm,W:15-100mm
Suitable box size
L:20-200mm , W:30-200mm
Voltage
110V/220V/380V
Machine size
2200(L)×  800(W)×  1600 (H) mm


German NOVEXX Labeling Engine


Machine with two years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely ;

④ Range experienced engineer come to client company for installation
