SKILT focus sticker labeling machine with 23 years experience, one of the toppest desktop round bottle labeling machine,bottle labeling machine manufacturer in China.

  • INTRODUCTION
  • CONFIGURATION
  • PARAMETER
  • APPLICATION
  • SERVICE

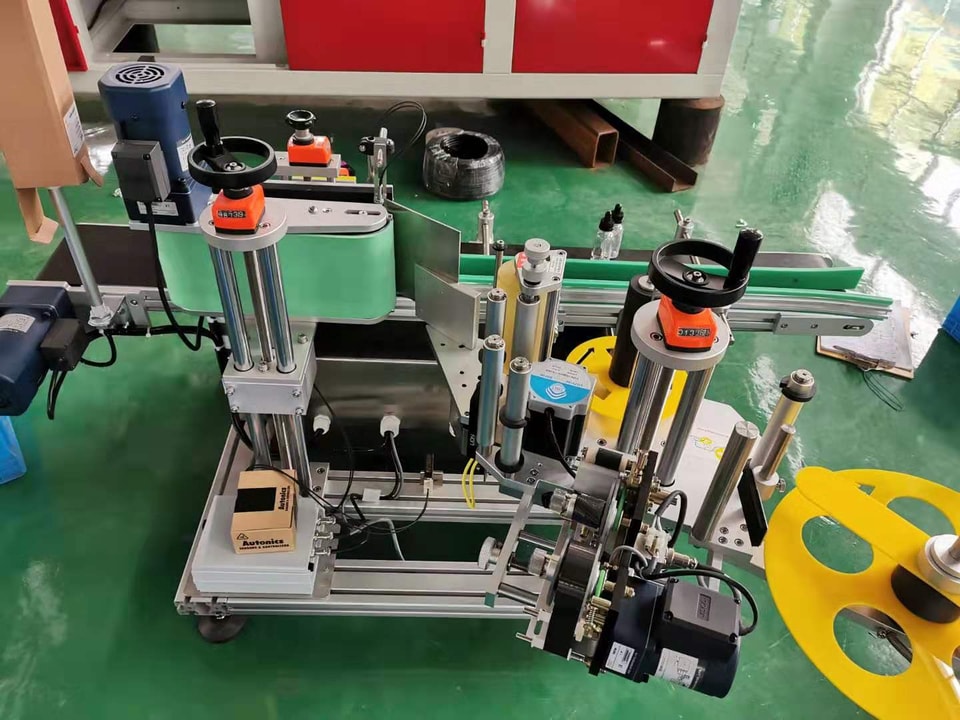

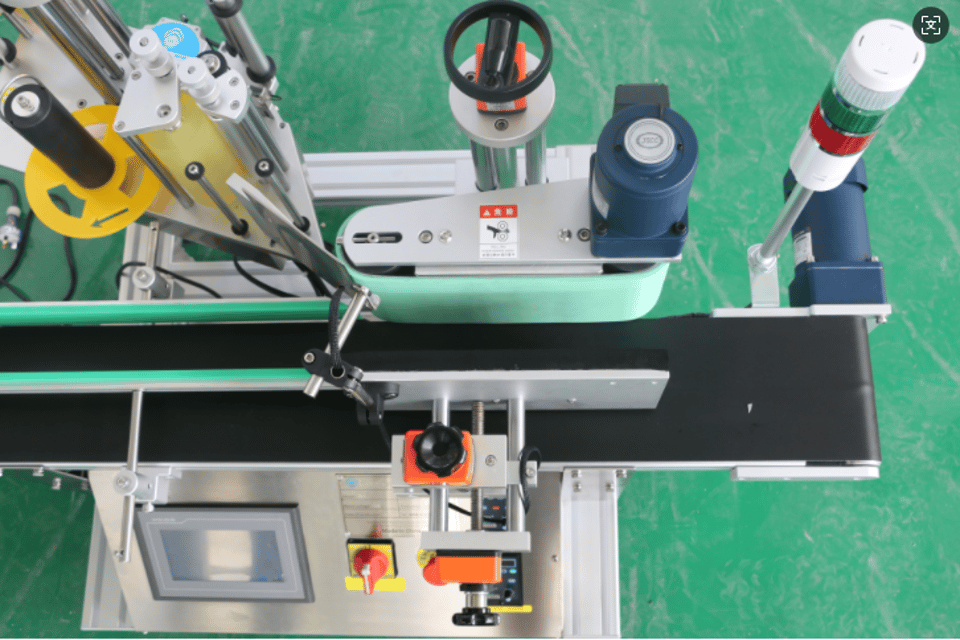

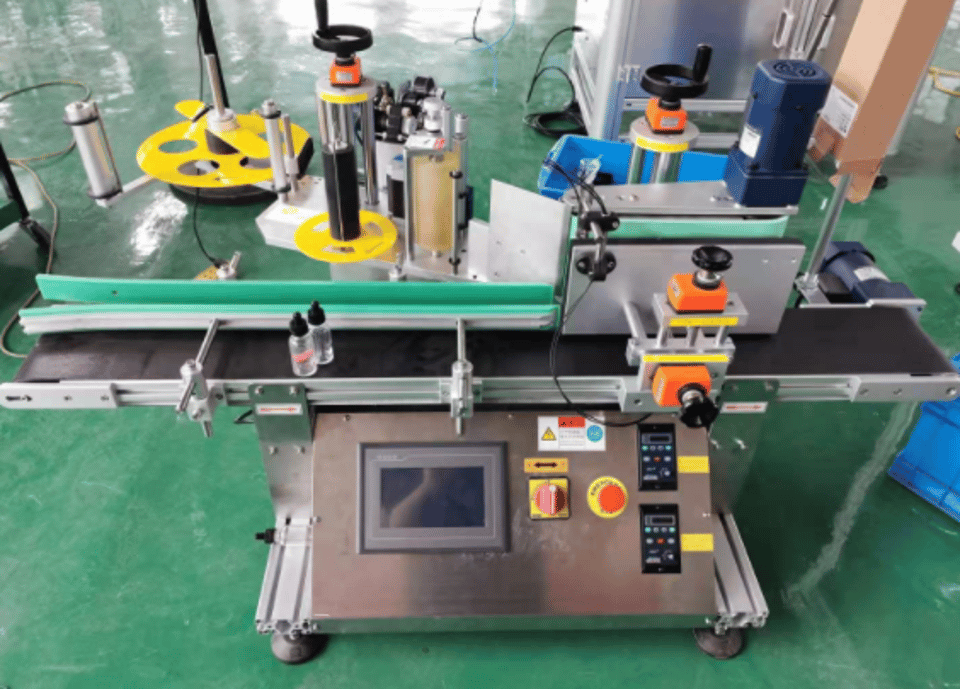

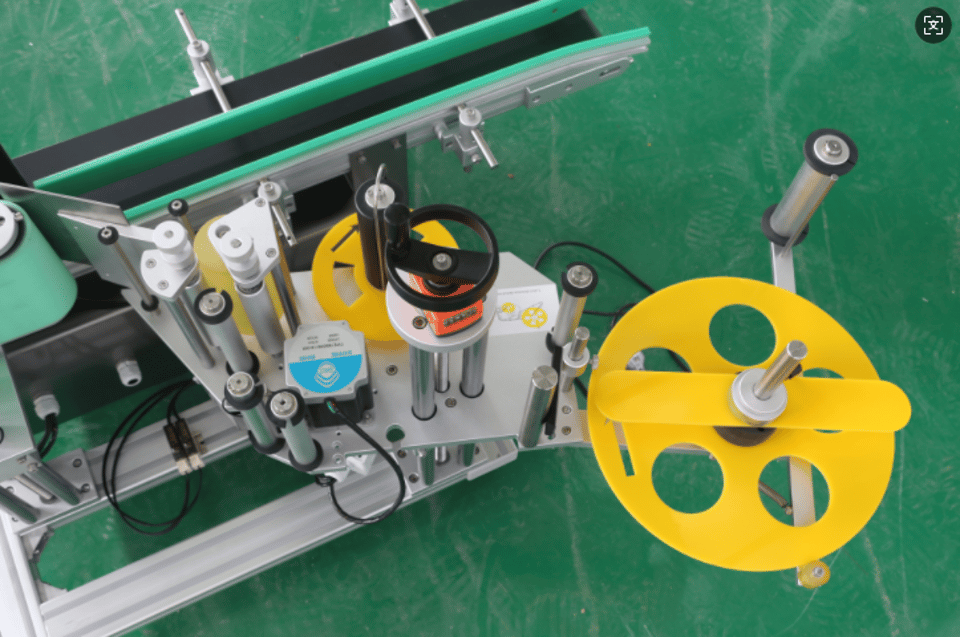

Desktop labeler for wrap-around application

1.The PLM-C in mini size, can be moved easily,so you can set up exactly where you'd like,can be positioned on a tabletop or bench.

2.Hand wheels provide simple adjustments, enable quick set-up and easy changeover.

3.Widely used in food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industrie for round bottle/jars/cans labeling on body.





No Name Brand
1 PLC control system

Delta

2 Touch-screen

MCGS

3 Labeling engine

Yankong

4 Check label sensor Japan KEYENCE
5 Check bottle sensor

Autonics

6 Main transport motor JSCC
Model PLM-C
Labeling way Desktop labeling wrap around
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
20-60pcs/min
Suitable label size

L:10-230 mm H: 10-150 mm

Suitable bottle size
Dia: 20-150mm, H:30-260MM
Machine size

1270*1000*780mm


Machine with two years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation
