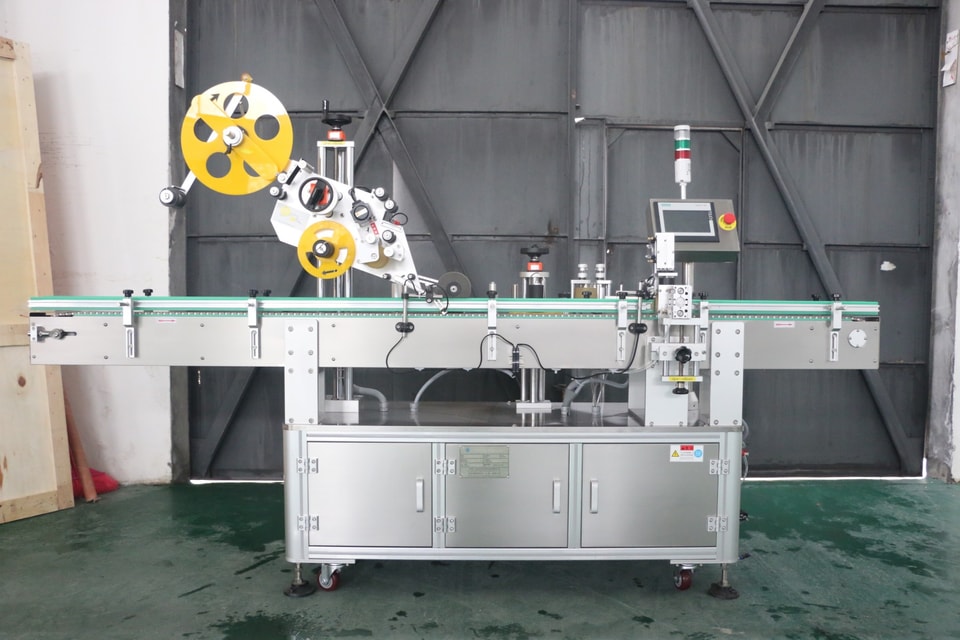

Round Jar/Cans Top&Side Labeler
















- INTRODUCTION
- CONFIGURATION
- PARAMETER
- Optional
- SERVICE
INTRODUCTION

● Suit for different kinds objects labeling on top and side two sides with two sticker;

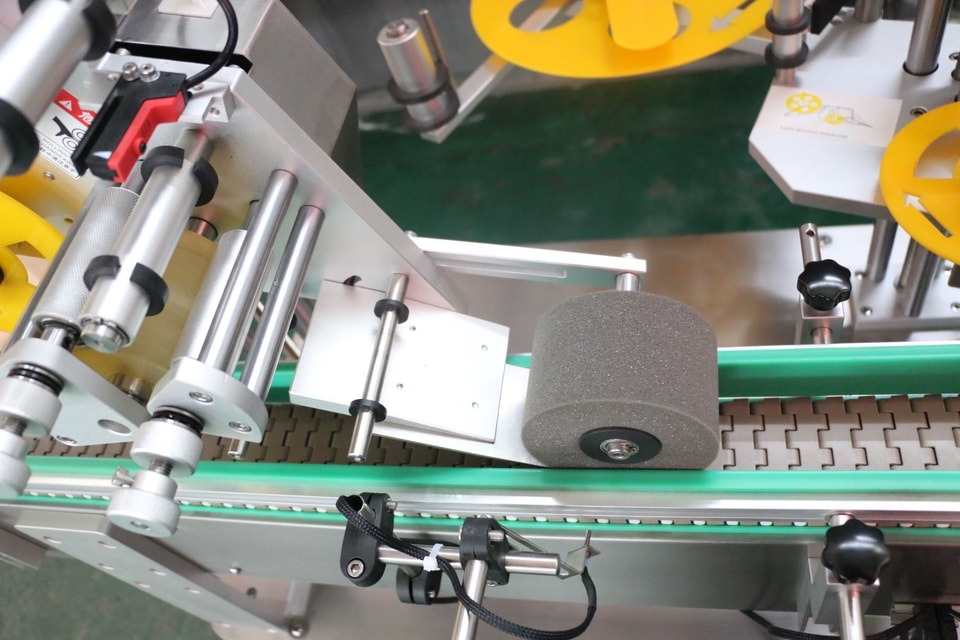

● With rolling label device, suit for round bottle labeling wrap around;
● With brush label cylinder,suit for square bottle labeling on multi sides with one label;
● Can operation alone or connect with production line;
● Machine can customized;
CONFIGURATION
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine Servo motor | panisonic & GERMAN NOVEXX |
| 5 | Check opaque label sensor | German Leuze |
| 6 | Check jars sensor | Japan KEYENCE |
| 8 | Main transport motor | Switzerland ABB |
| 9 | Press bottle motor | German JSCC |
| 11 | Separate bottle Motor | German JSCC |
PARAMETER
| Model | DPM-SLM-A & DPM-SLM-ALS204 |
| Driving Model | Servo system & German Novexx |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield(pcs/min) | 50-180pcs/min |
| Suitable label size | L:10-250mm,H:10-200mm |
| Suitable bottle size | W:(Diameter): 20-90mm , H:30-300mm |
| Voltage | 110V/220V/380V |
| Machine size | 2400(L)× 1500(W)× 1500 (H) mm |
Optional
1.German NOVEXX labeling engine

2. Printer device

2. Printer device
Thermal transfer printing way , printing date and batch number on labels.

SERVICE
① Machine with two years warranty;
② Supply operation training for client workers ;
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation;
