Lipstick/Lip Blam Labeler

Home > Products > Tube/Ampoule/Injection Labeler > Lipstick/Lip Blam Labeler

Video

INTRODUCTION
CONFIGURATION
PARAMETER
OPTIONAL

INTRODUCTION

SKILT Unique Horizontal Way Lipstick l lip balm Labeling Solution

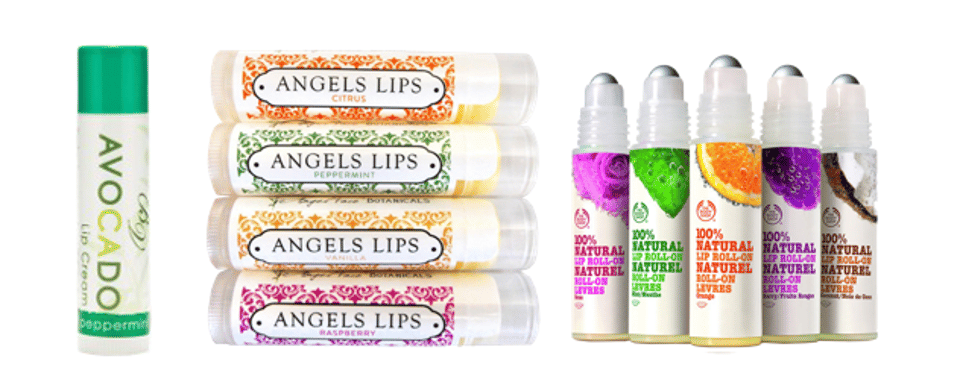

PWM Series horizontal wrap around automatic labeling machine suit for slim objects, such as lipsticks,lip blam , ampoule,tubes,pens,syringes.

Machine Features

（1）Has few moving parts, adjustments are easily made, changeovers easy.

（2）Angled roller conveyor made depends on labeling objects shape and size, ensures labeling accuracy.

（3）Auto feeder design and slanted conveyor made from special engineering plastic roller, potential damage to fragile containers are minimized.

（4）Printer device optional, printing date and batch number on labels directly.

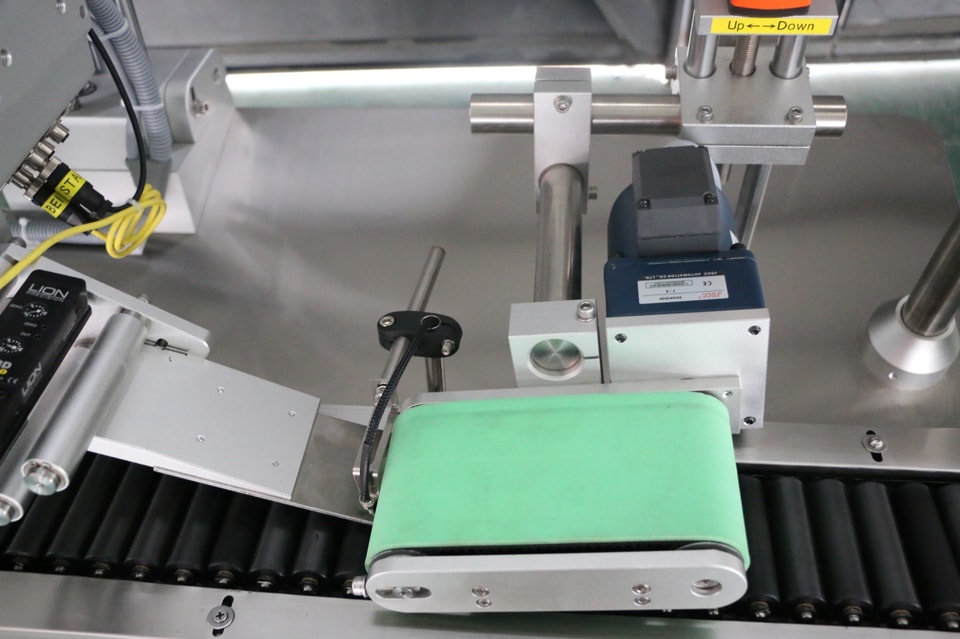

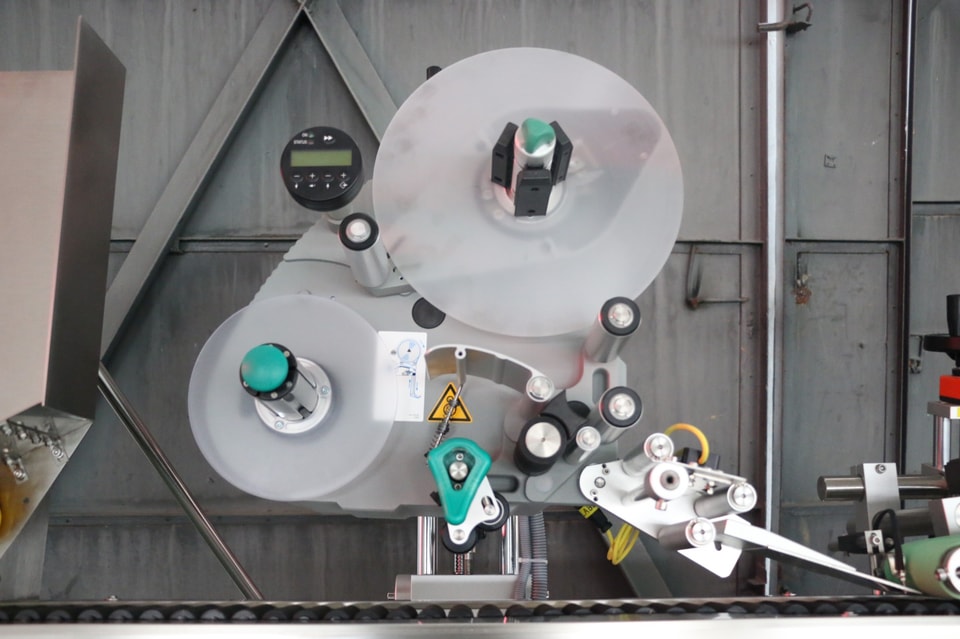

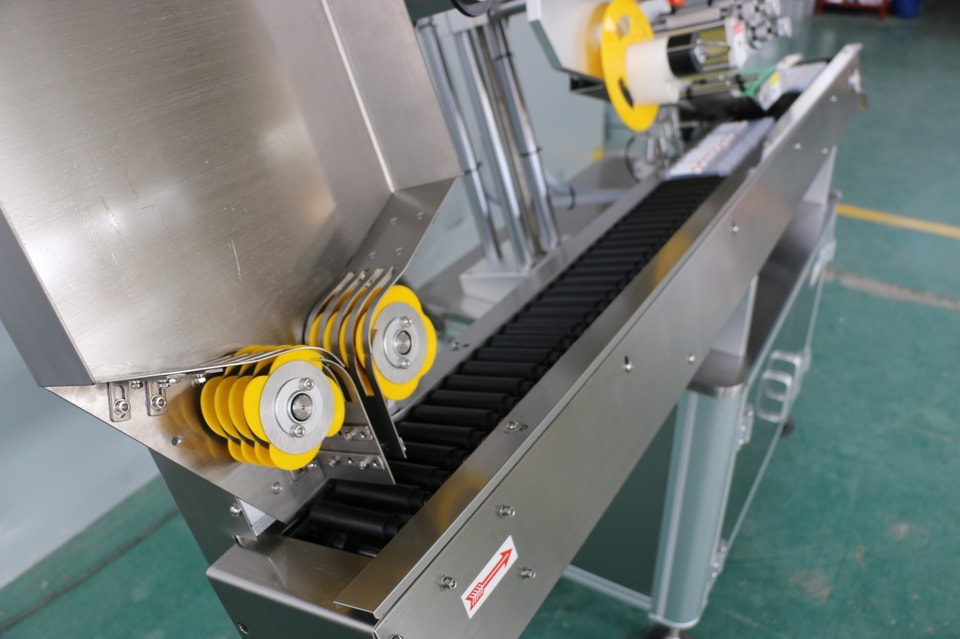

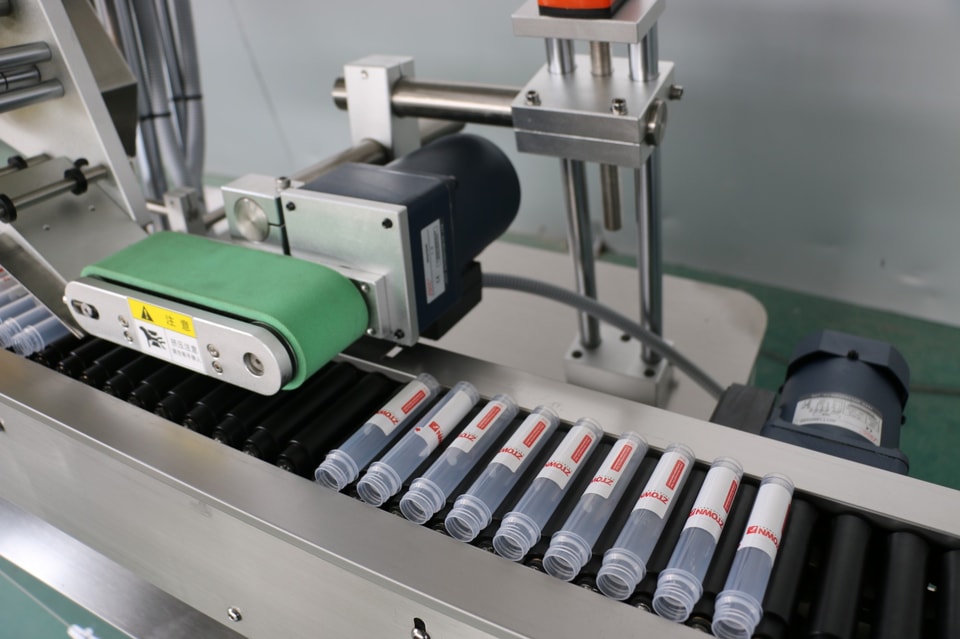

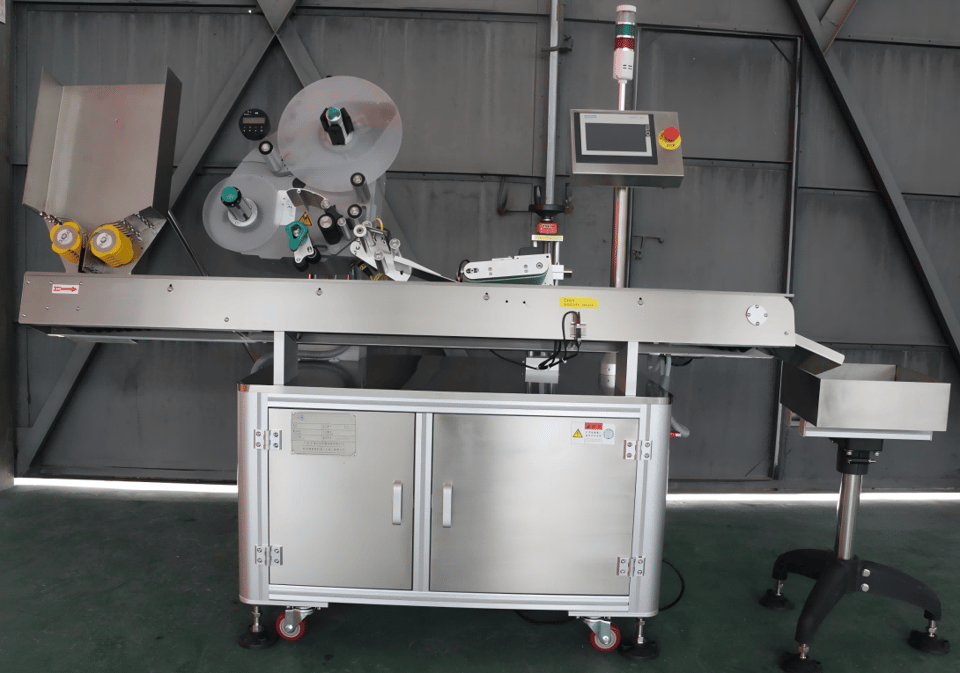

Machine detail pictures

CONFIGURATION

No	Name	Brand
1	PLC control system	SIEMENS
2	Touch-screen	SIEMENS
3	Labeling engine control system	PANISONIC & German NOVEXX
4	Servo drive	PANISONIC
5	Frequency converter	DELTA
6	Check lipstick lip blam sensor	Japan KEYENCE
7	Check label sensor	German Leuze
8	Main transport motor	JSCC

PARAMETER

Model	PWM-A & PWM-ALS204
Driving Model	Servo system & German Novexx
Labeling way	Horizontal way
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	50-300pcs/min
Suitable label size	L:10-100mm，H:10-150mm
Suitable Lipstick Lip Blam size	Diameter: 10-30mm
Voltage	110V/220V/380V
Machine size	1800（L）× 800(W)× 1500 (H) mm

OPTIONAL

1. Printer device
Thermal transfer printer , printing date and batch number on labels.

2. German NOVEXX Labeling engine
