Oval bottle two sides labeler

  • INTRODUCTION
  • CONFIGURATION
  • PARAMETER
  • OPTIONAL
  • SERVICE
INTRODUCTION

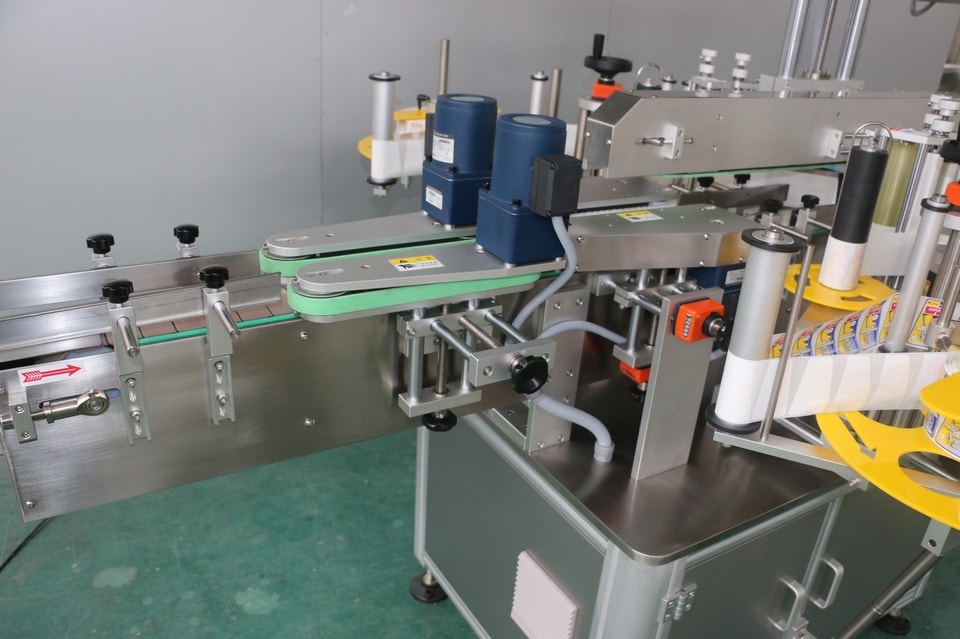

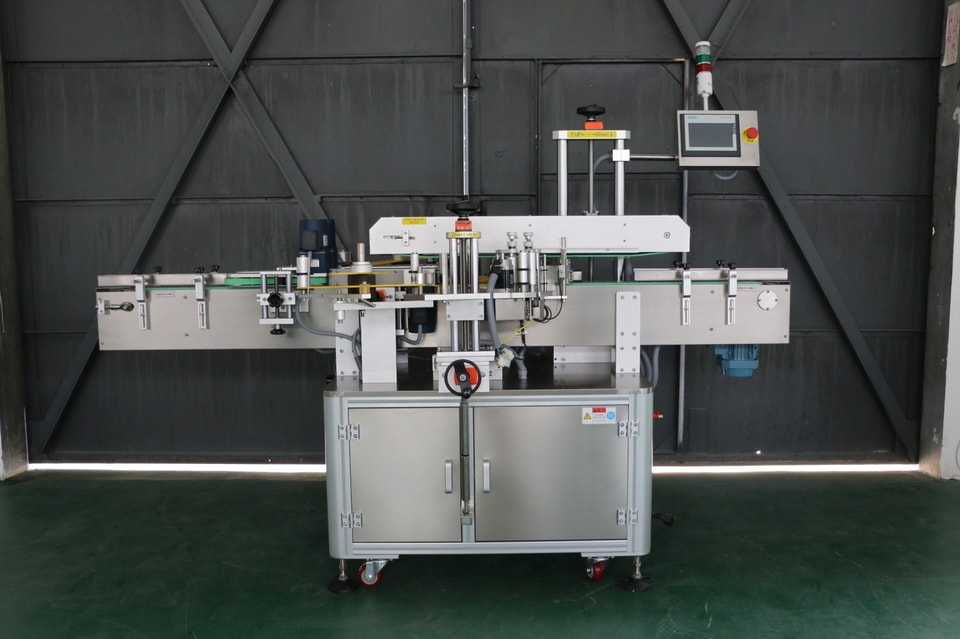

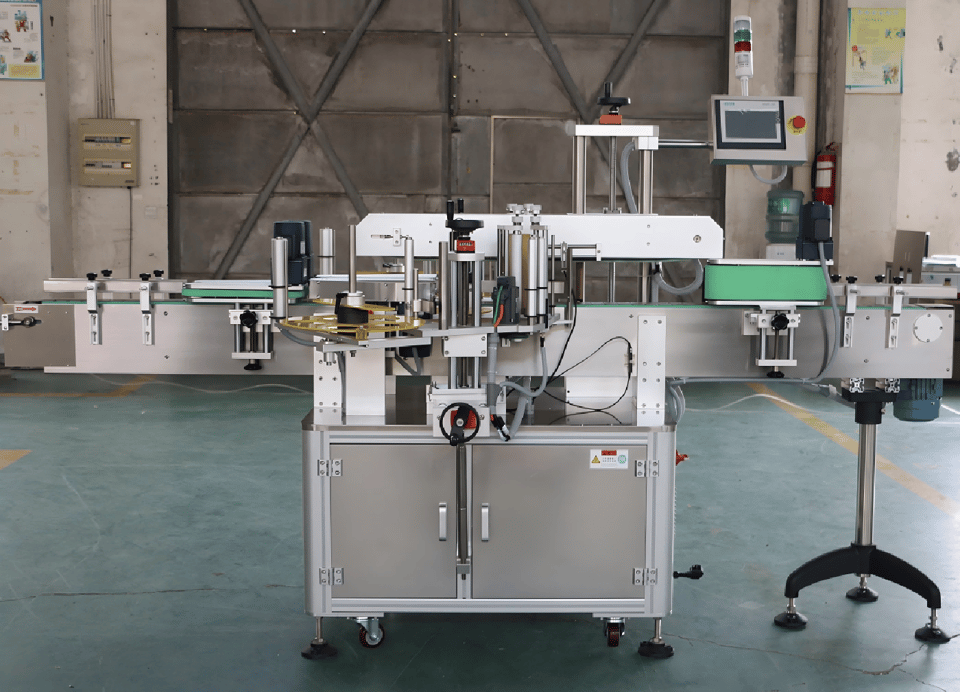

SKILT DPM two sides labeling machine l two sides label applicator


Labeling type compatible: One side labeling • two-side labeling • Square bottle Multi sides labeling • Wrap-around labeling (optional)

Product specifications: Rectangular, flat-arched to oval, cylindrical, free-standing ;


Options :

1.Infeed and outfeed turntable with different size for choose ;

2.Belt-type separator, chain aligner ;

3.Wrap-around labeling with wrap-around belt and counterpressure plate;

4.Add 3rd applicator for one more labeling position ;

5.Printer deivce,  printing date and batch number on labels directly.


CONFIGURATION
NoNameBrand
1PLC control system
SIEMENS
2Touch-screen
SIEMENS

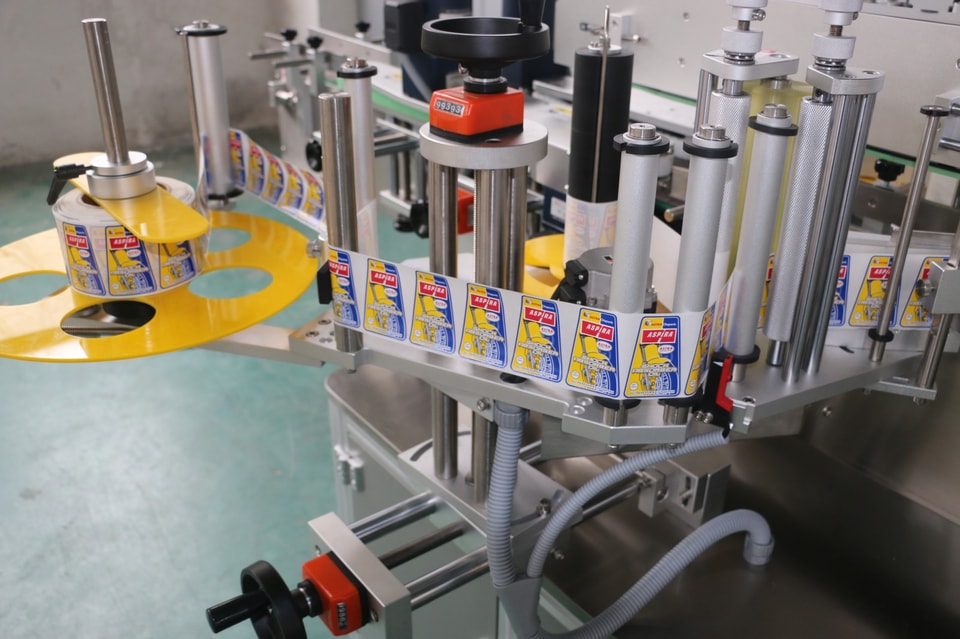

3Labeling engine
Panisonic & GERMAN NOVEXX
4Check bottle sensor
Japan KEYENCE
5Check label sensor
German Leuze
6Main conveyor motor
Switzerland ABB

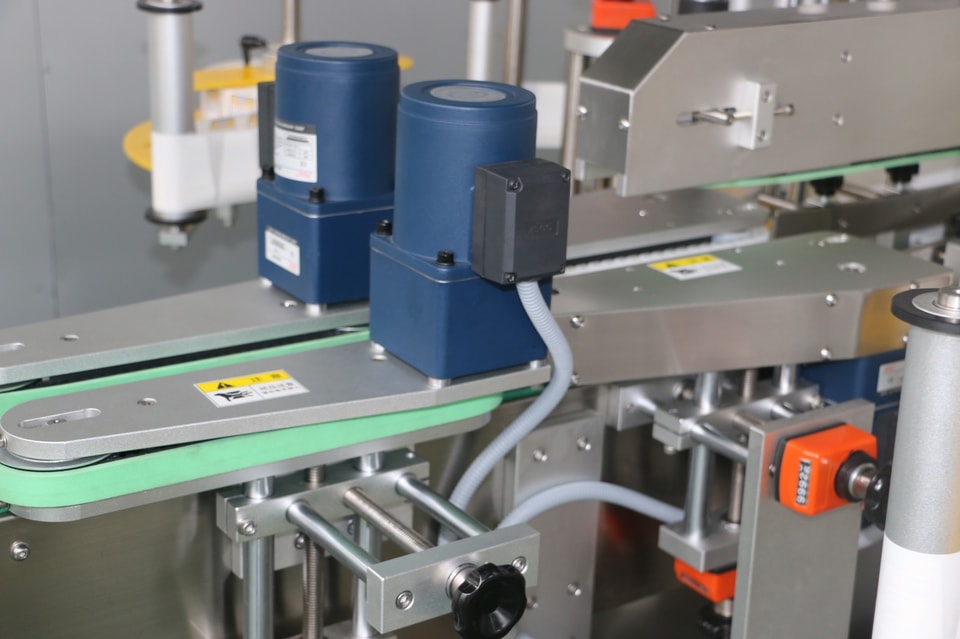

7Press bottle motor/driver
JSCC















PARAMETER
ModelDLM-A & DLM-ALS204
Driving Model
Servo system & German Novexx
Label material
Self-adhesive sticker, opaque or transparent label
Yieldpcs/min
50-180pcs/min
Suitable label size
L:10-250mm,H:10-300mm
Suitable bottle size
W:(Diameter): 20-90mm , H:30-320mm
Voltage
110V/220V/380V
Machine size
2400(L)×  1500(W)×  1500 (H) mm

OPTIONAL

German NOVEXX labeling engine


SERVICE

Machine with TWO years warranty

Supply operation training for client workers

If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation
