Bottle Special Fix Position Labeler

Home > Products > Wrap/Half Around Labeler > Bottle Special Fix Position Labeler

video

INTRODUCTION
CONFIGURATION
PARAMETER
OPTIONAL
SERVICE

INTRODUCTION

The FXP series labeling suitable situation
● Labeling at the smae position on each bottle surface ;
● The second label covered on the first label surface ;
● Labeling whole wraparound ,with high requirmenet for labeling accuracity ;

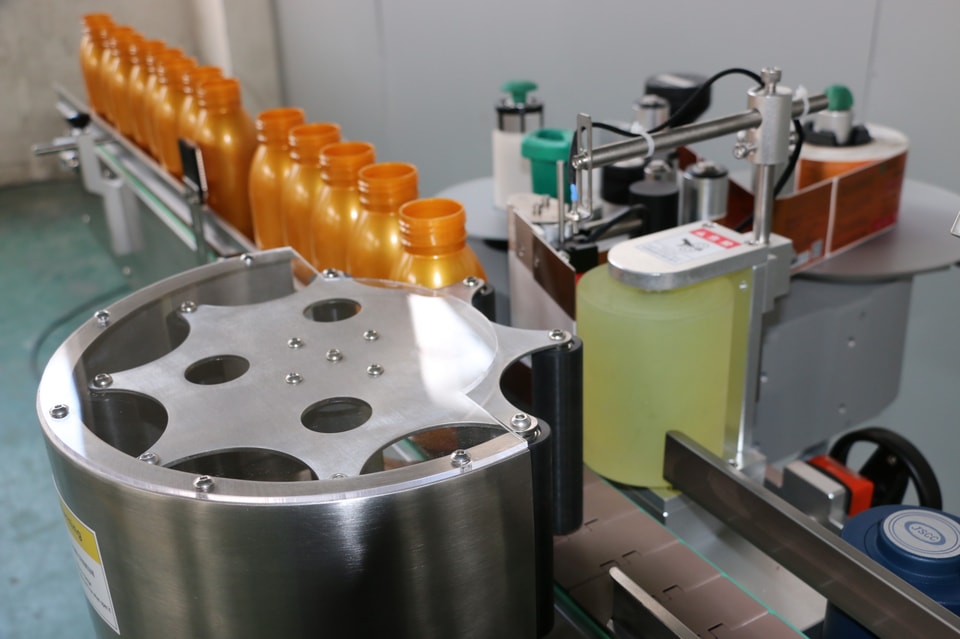

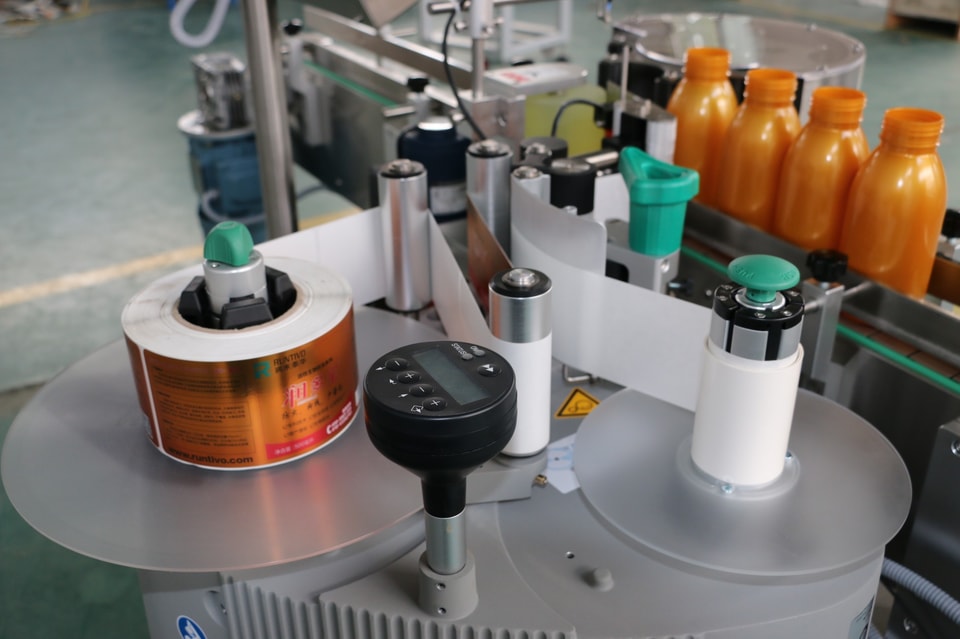

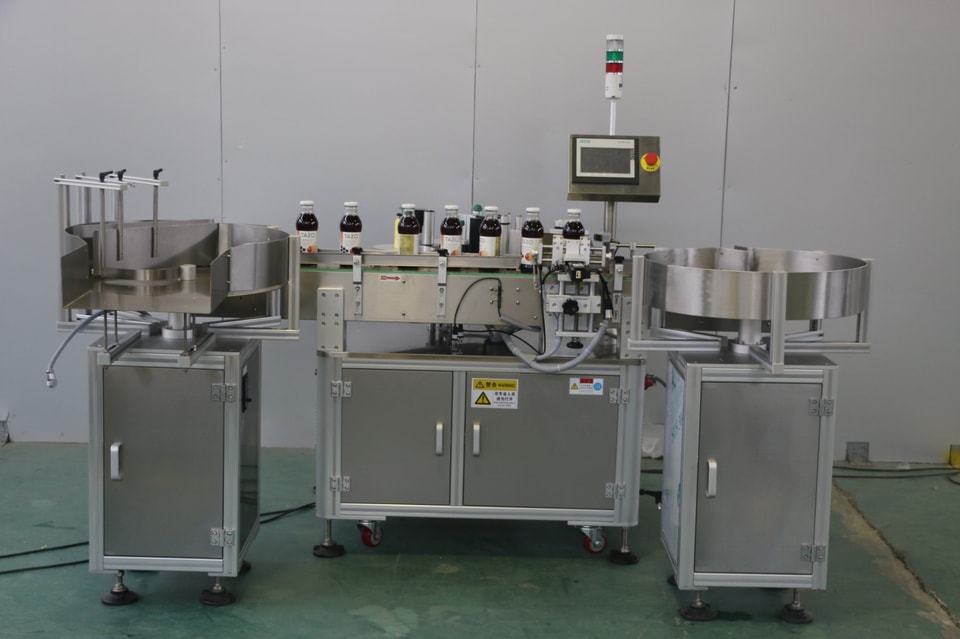

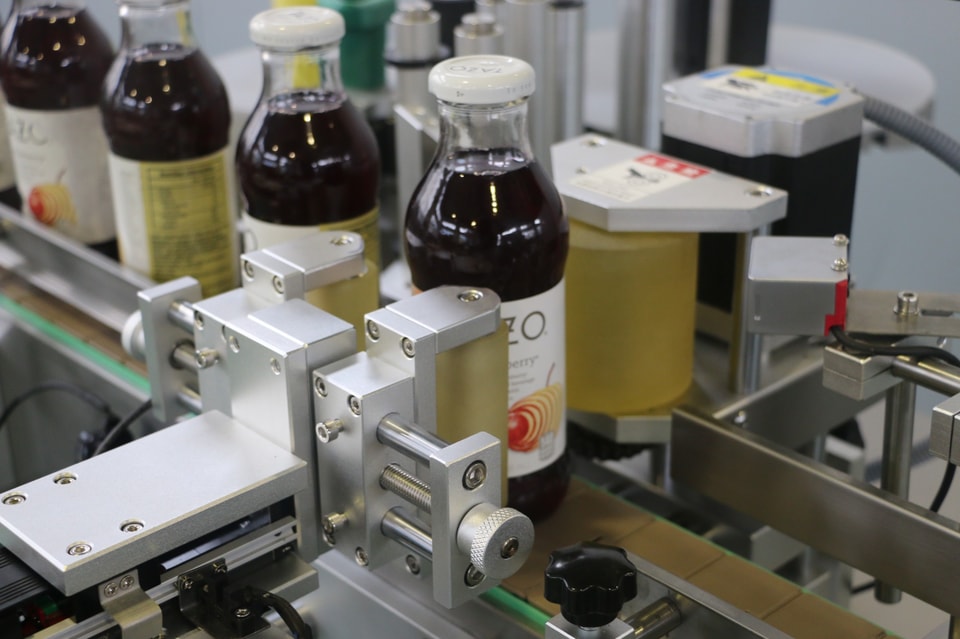

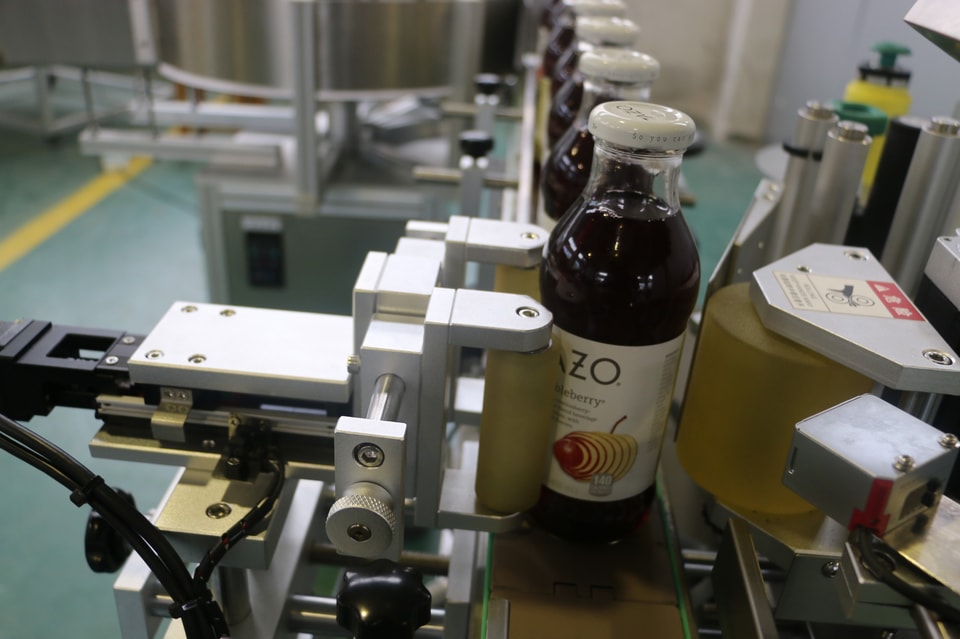

Machine Detail Picture with function

CONFIGURATION

No	Name	Brand
1	PLC control system	SIEMENS
2	Touch-screen	SIEMENS
3	Labeling engine Servo motor	PANISONIC
4	Labeling engine Drive	PANISONIC
5	Check opaque label sensor	SIEMENS
6	Check bottle sensor	Japan KEYENCE
7	Main transport motor	JSCC

PARAMETER

Model	PLM-DS & PLM-DS-ALS204
Driving Model	Servo system & German Novexx
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	10-70pcs/min
Suitable label size	L:15-300mm，W:15-200mm
Suitable bag size	Dia:20-100mm , H:30-250mm
Voltage	110V/220V/380V
Machine size	1800（L）× 800(W)× 1600 (H) mm

OPTIONAL

1. Printer device
Thermal transfer printer, printing date and batch number on labels.

2.Turntable

If machine operation alone, suggest choose turntable more convenient for operation.

3. German NOVEXX Labeling engine

SERVICE

① Machine with two years warranty；

② Supply operation training for client workers ；

③ If with quality problem, provide technical support and supply wearing parts timely ;

④ Range experienced engineer come to client company for installation；
