Round Bottle Labeling Applicator
- Parameters
- Main Electrical Configuration
- INTRODUCTION
- Optional
| Model | PLM-A & PLM-ALS104 |
|---|---|
| Driving Mode | German NOVEXX Labeling engine |
| Yield（pcs/min） | 30-200(depends on product and label size) |
| Operating direction | Left or Right |
| Conveyor Speed（m/min） | ≤40 |
| Labeling Accuracy | ±1.0 mm |
| The suitable size of label | Width 15-160 mm length 15-300 mm |
| The suitable size of labeling objects | Can customized |
| Printer use air | 5kg/cm ² |
| Voltage (In China) | 110V/220V/380V Optional |
| Machine size | 1800（L） 800 (W) 1500 (H) mm |
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine control system | German NOVEXX & PANISONIC |
| 4 | Labeling engine Drive | PANISONIC |
| 5 | photoelectric sensor (check bottle) | Japan KEYENCE |
| 6 | sensor (Check label） | German Leuze |
| 7 | Main transport motor | GERMAN JSCC |
Wrap-around labeling solution
1. A large area of application for round bottle/jars/cans labeling,usually labeled wrap around ;
2. In pharmaceutical is indispensable for vial labeling, bill bottle labeling ;
3. Labeling of cosmetics, shampoo bottle wrap around labeling, detergent round bottle labeling；
4. Confectionery and good labeling from jam in jars to cereals in cans labeling wrap around ;
5. Chemical products paint round cans labeling and much more ;
Optional Features
1. Turntable at infeed and outfeed for round bottle labeling machine ;
2. One more labeling engine for machine not stop working when change label roll;
3. Visual camera detection function for printing content ;
4. Sensor for label use up, machine alarm ;
5. Sensor for product lack of label , tick it out ;
6. Machine hight can customized depends on client production line.

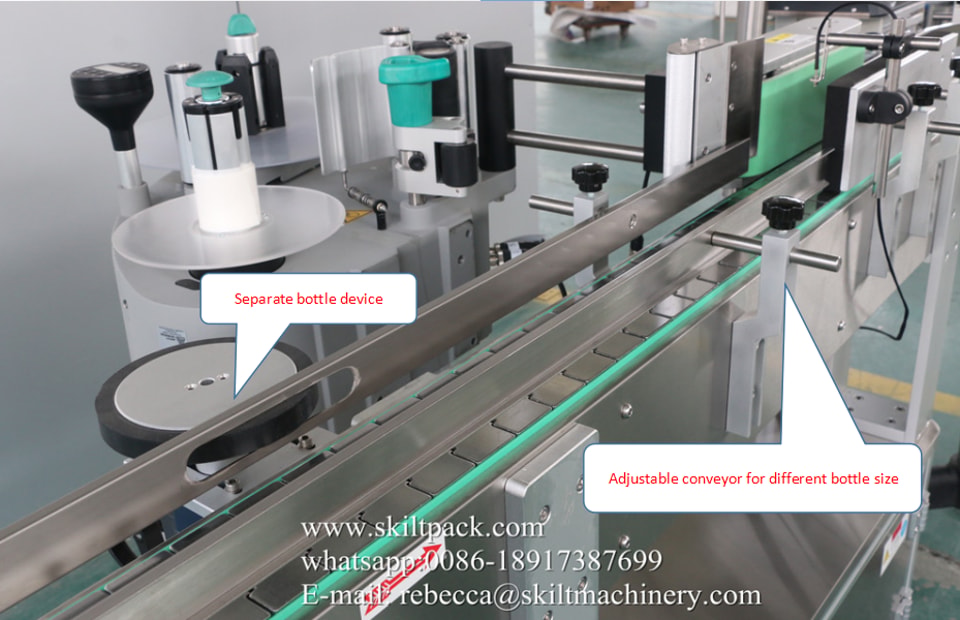

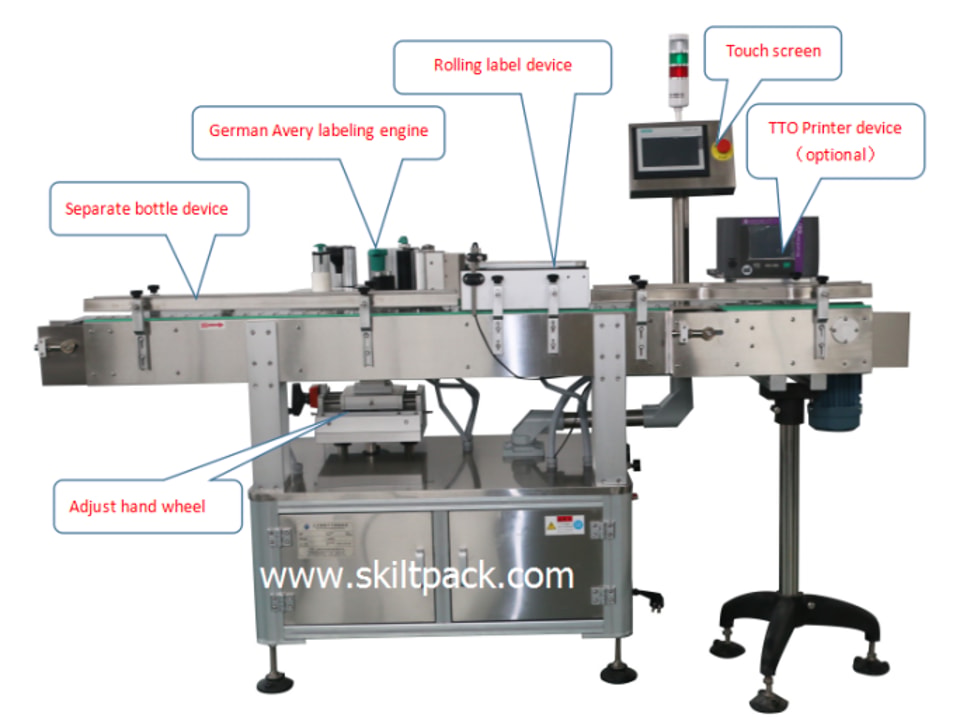

Machine Detail Function
Part1: Auto infeed turntable, diameter with 600mm 800mm 1000mm optional.

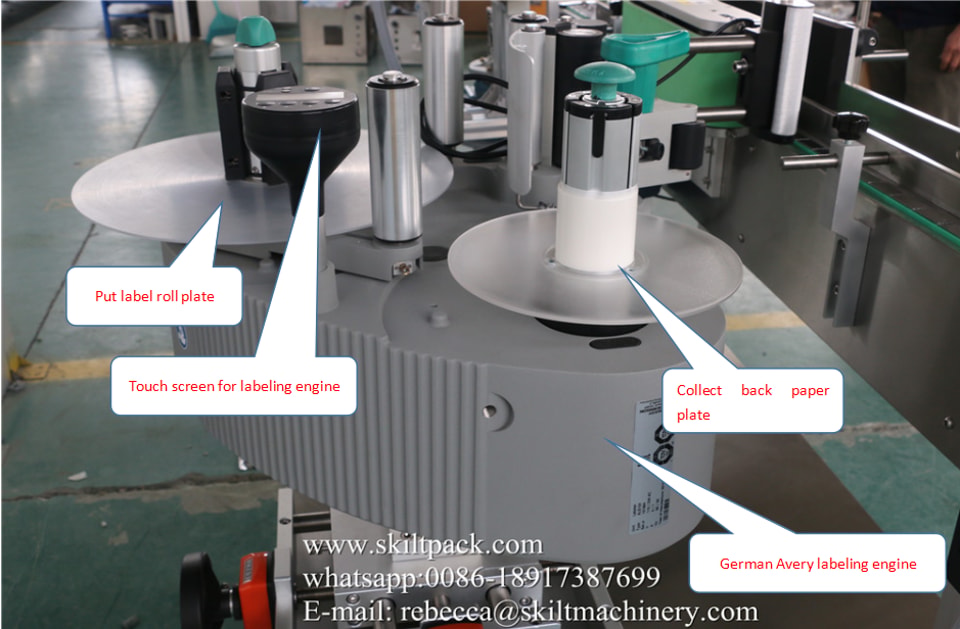

Part2: Labeling part,rolling label device made depends on client products Max size,labeling engine
with SKILT servo control system and German Novexx ALS204 optional.
Part3: Auto outfeed turntable for collection.
Thermal transfer printing way , printing date and batch number on labels.
If machine not connect with production line, choose turntable connect with labeling machine, it will be more convenient for worker operation.
Printer device

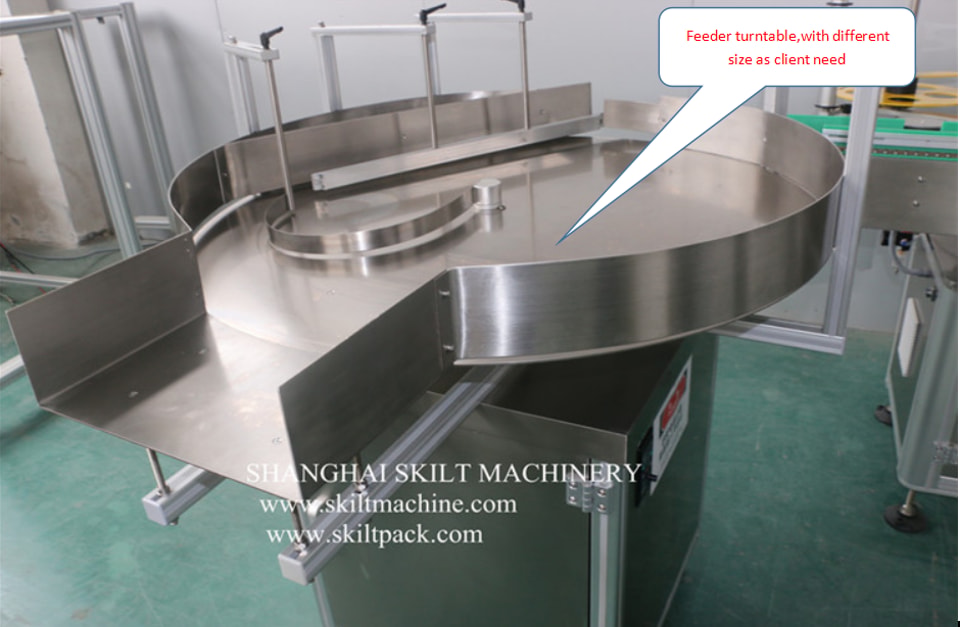

Turntable
