Round Bottle/Vial Rotary Labeler

Home > Products > High Speed Labeler(Rotary Way) > Round Bottle/Vial Rotary Labeler

video

INTRODUCTION
PARAMETER
CONFIGURATION
Optional
SERVICE

INTRODUCTION

High performance wrap-around labeling system l Vial labeling

With the continuously rotating starwheel, up to 500 pcs/min can be labeled.

Optional Function :

1.Infeeder and Outfeeder Rotary table in different size ;
2.Check or rejection of fallen products ;
3.Code checking function ;

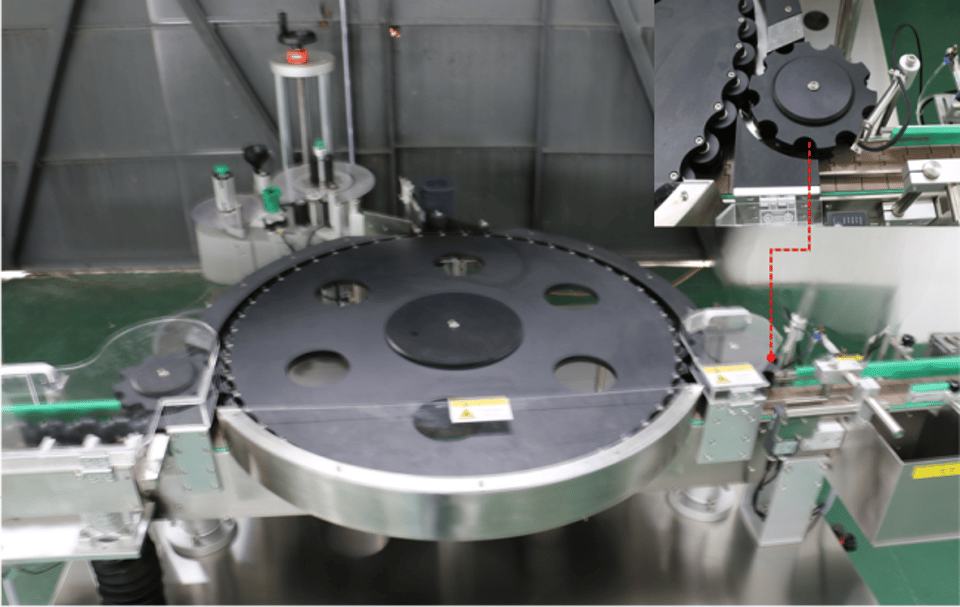

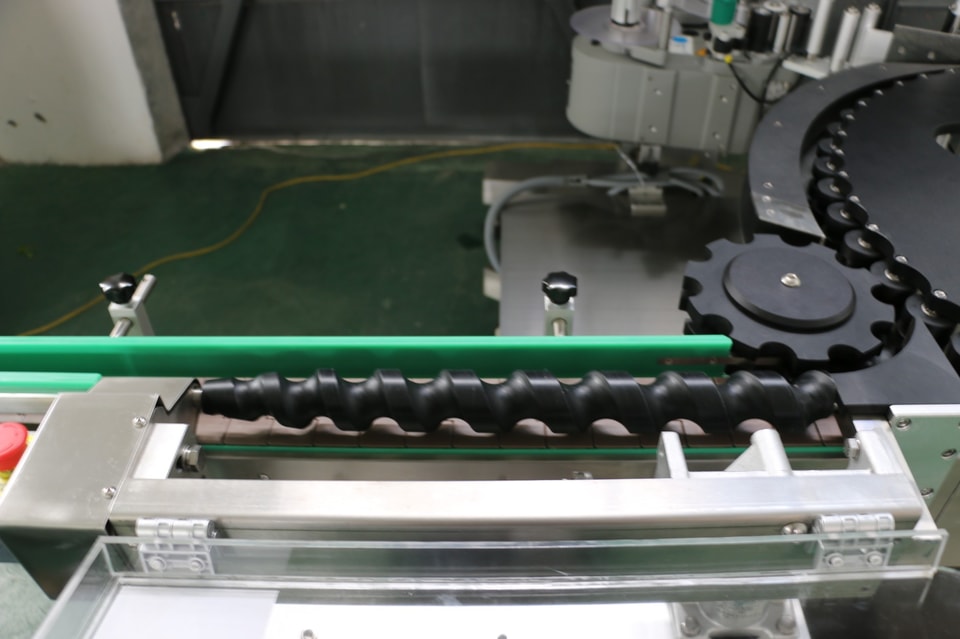

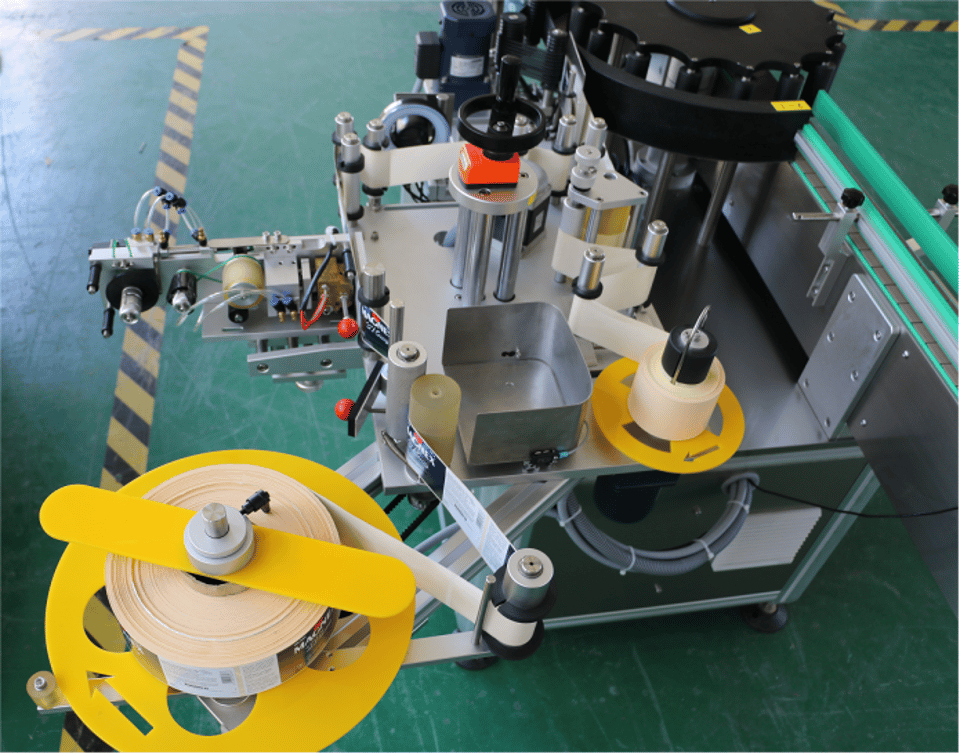

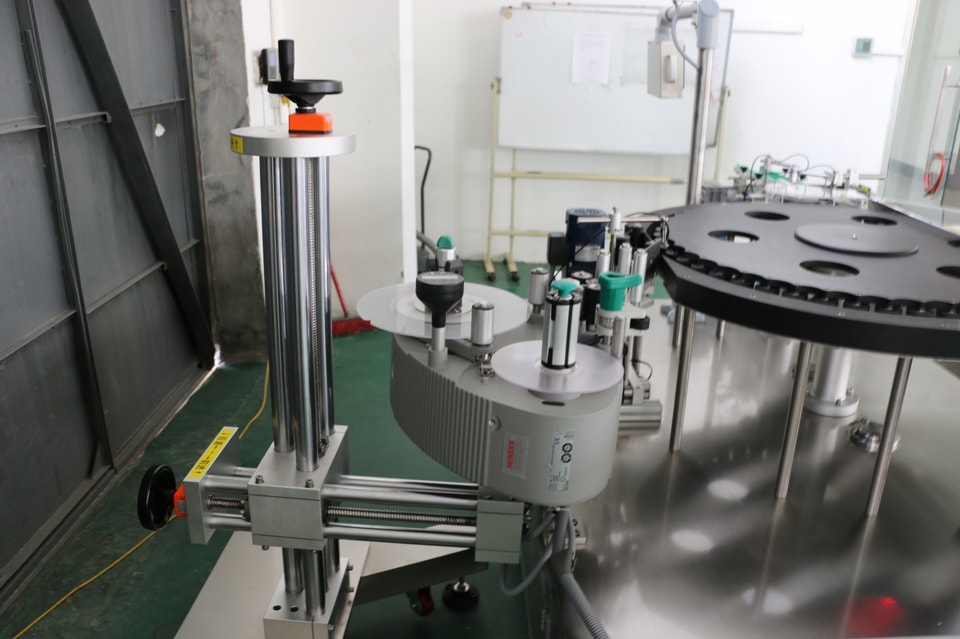

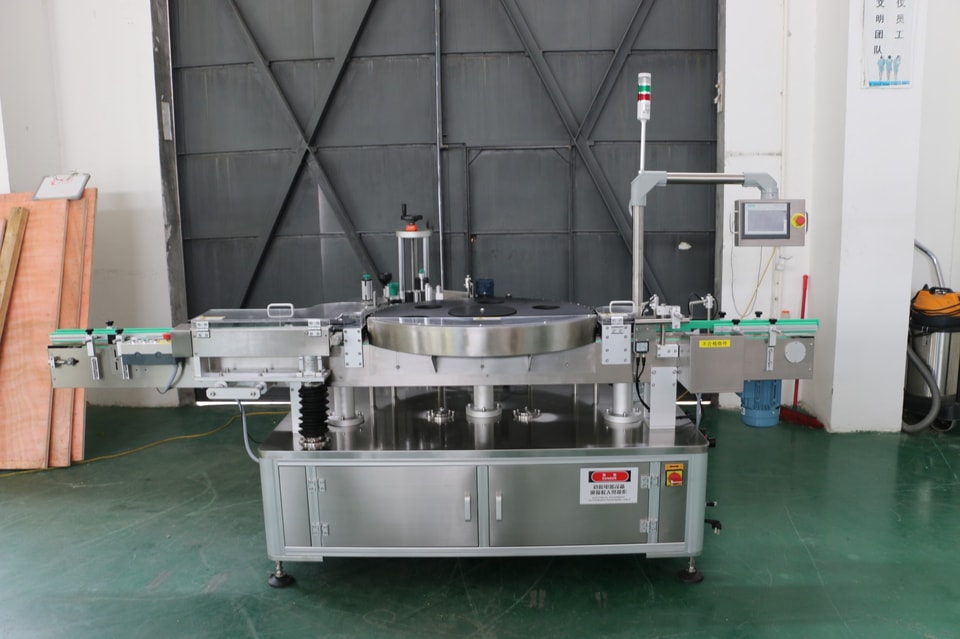

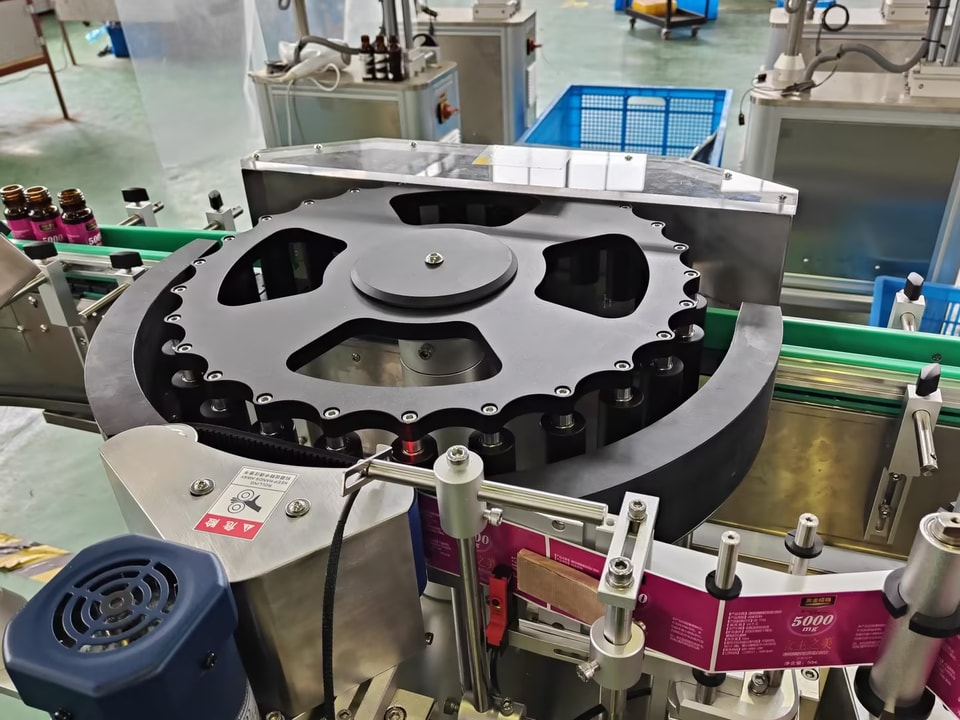

Machine detail pictures

PARAMETER

Model	PLM-HZ-B
Driving Model	Servo system & German Novexx
Labeling way	Rotary way
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	50-600pcs/min
Suitable label size	L:10-300mm，H:10-200mm
Suitable bottle size	Diameter: 20-100mm
Voltage	110V/220V/380V
Machine size	2400（L）× 1600(W)× 1600 (H) mm

CONFIGURATION

No	Name	Brand
1	PLC control system	SIEMENS
2	Touch-screen	SIEMENS
3	Labeling engine servo motor	Panisonic
4	Check bottle sensor	German SICK
5	Check opaque label sensor	German LEUZE
6	Main transport motor	Switzerland ABB
7	Rotary plate motor	Switzerland ABB

Optional

1. Printer device

Printing the date and batch number on the labels, can print 5 lines at most.

2.Turntable

If machine not connect with production line,suggest choose turntable, more convenient for operation.

SERVICE

① Machine with two years warranty；

② Supply operation training for client workers ；

③ If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation；
