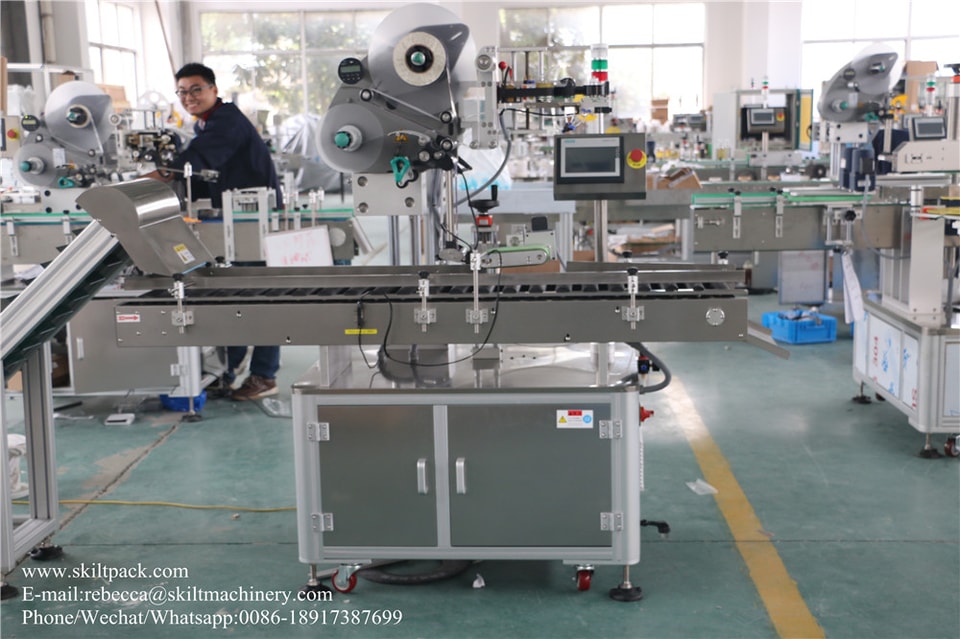

Sausage Labeling Machine

Video

INTRODUCTION

● Suit for round Sausage labeling wrap around in horizontal way ;

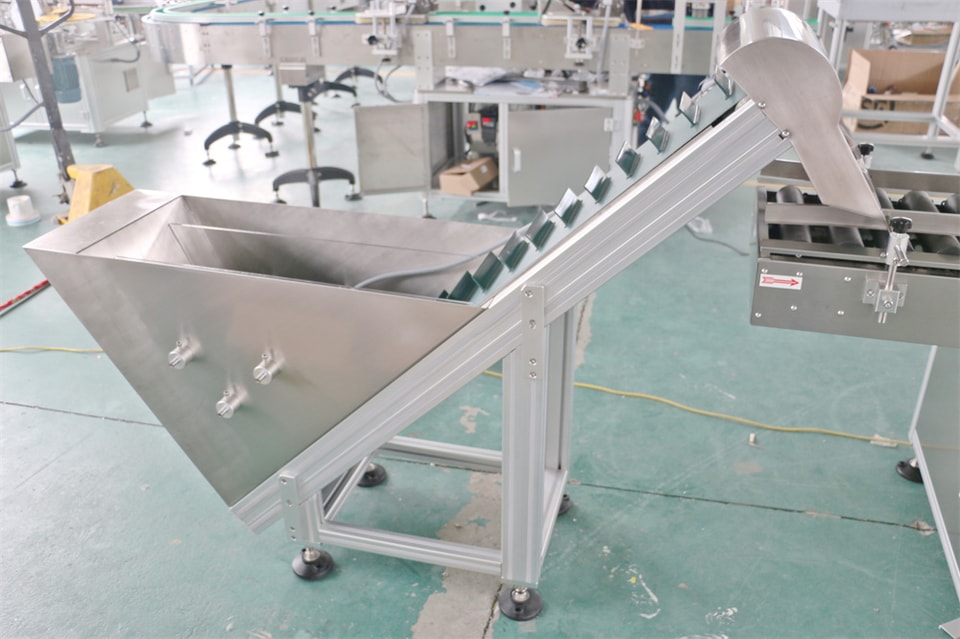

● With auto feeder device and collection device.

CONFIGURATION

No	Name	Brand
1	PLC control system	SIEMENS
2	Touch-screen	SIEMENS
3	Labeling engine Control system	PANISONIC & German NOVEXX
4	Labeling engine Drive	PANISONIC
5	Frequency converter	DELTA
6	Check sausage sensor	Japan KEYENCE
7	Check label sensor	German Leuze
8	Main transport motor	JSCC

PARAMETER

Model	PWM-A & PWM-ALS204
Driving Model	Servo system & German Novexx
Labeling way	Horizontal way
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	10-80pcs/min
Suitable label size	L:10-100mm，H:10-150mm
Suitable susage size	can customized
Voltage	110V/220V/380V
Machine size	2000（L） 700 (W) 1500 (H) mm

OPTIONAL

1.Printer device
Thermal transfer printer , printing date and batch number on labels.

2. German NOVEXX Labeling engine
