Syringe/Injection Labeler
- INTRODUCTION
- CONFIGURATION
- PARAMETER
- OPTIONAL
- SERVICE

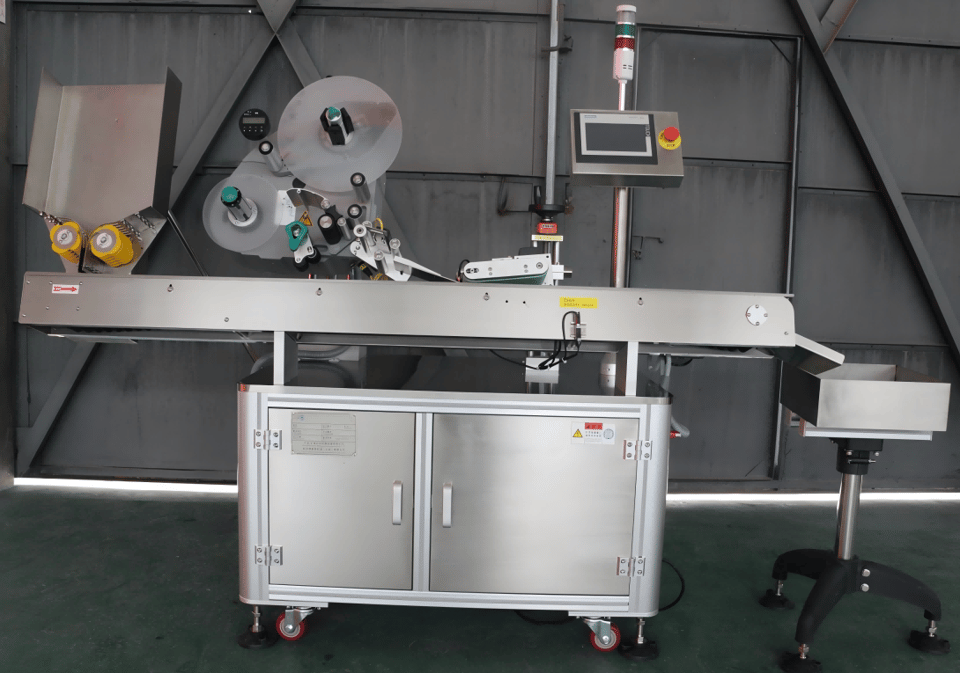

SKILT Unique Horizontal Way Syringe/Injection Labeling Solution
PWM Series horizontal wrap around automatic labeling machine suit for slim objects, such as lipsticks,lip blam , ampoule,tubes,pens,syringes.
Machine Features
（1）Has few moving parts, adjustments are easily made, changeovers easy.
（2）Angled roller conveyor made depends on labeling objects shape and size, ensures labeling accuracy.

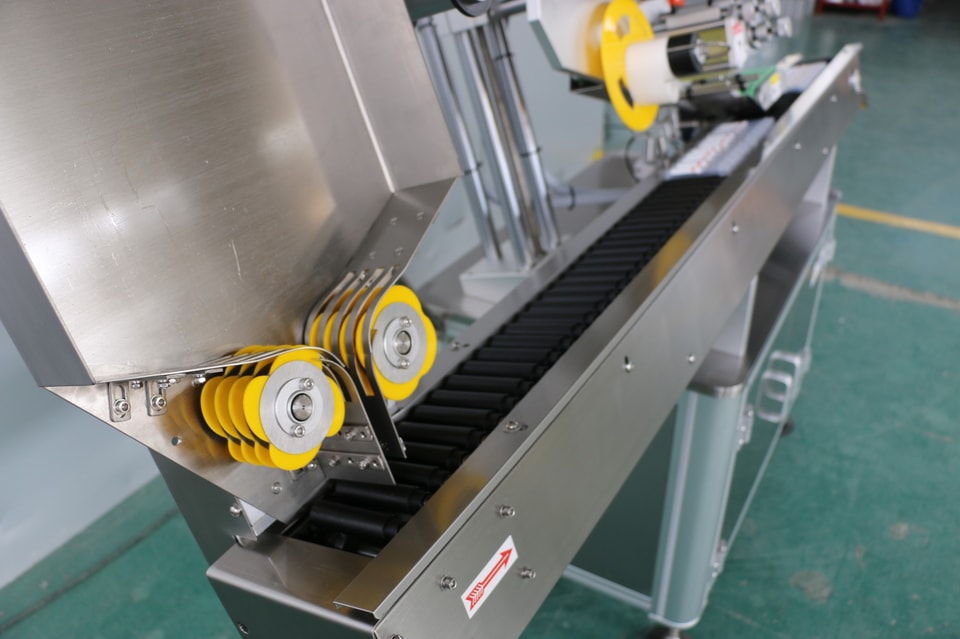

（3）Auto feeder design and slanted conveyor made from special engineering plastic roller, potential damage to fragile containers are minimized.
（4）Printer device optional, printing date and batch number on labels directly.
Machine Detail Pictures
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine control system | PANISONIC & GERMAN novexx |
| 4 | Labeling engine Drive | PANISONIC |
| 5 | Frequency converter | DELTA |
| 6 | Check syringe sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | JSCC |
| Model | PWM-A & PWM-ALS204 |
| Driving Model | Servo system & German Novexx |
| Labeling way | Horizontal way |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 50-300pcs/min |
| Suitable label size | L:10-100mm，H:10-150mm |
| Suitable Syringe size | Diameter: 10-30mm |
| Voltage | 110V/220V/380V |
| Machine size | 1800（L）× 800(W)× 1500 (H) mm |
Thermal transfer printer , printing date and batch number on labels.

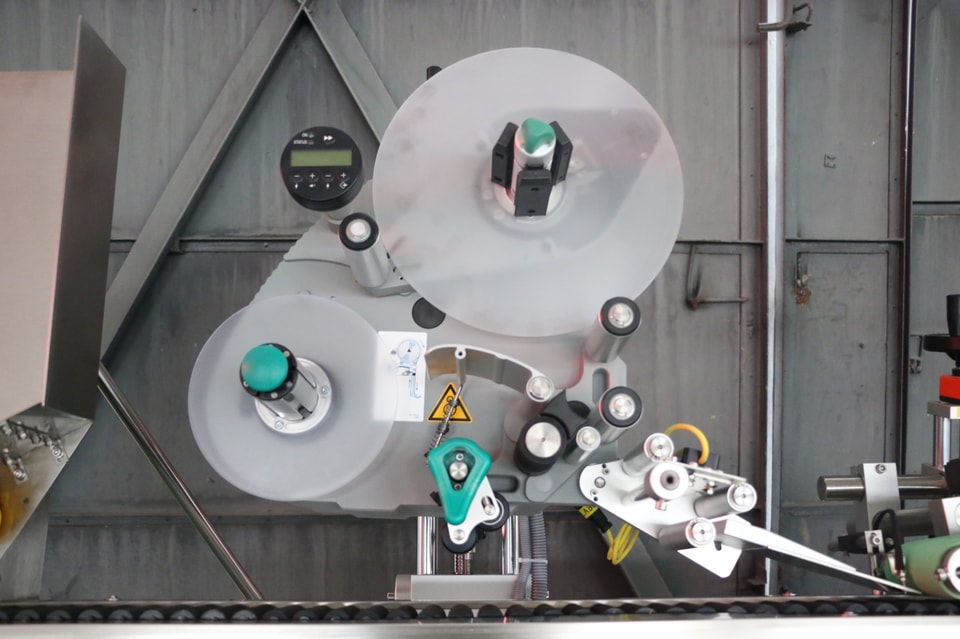

2.German NOVEXX Labeling engine
① Machine with two year warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
