Cloth Hang Tag Labeling machine
- INTRODUCTION
- CONFIGURATION
- PARAMETER
- OPTIONAL
- SERVICE

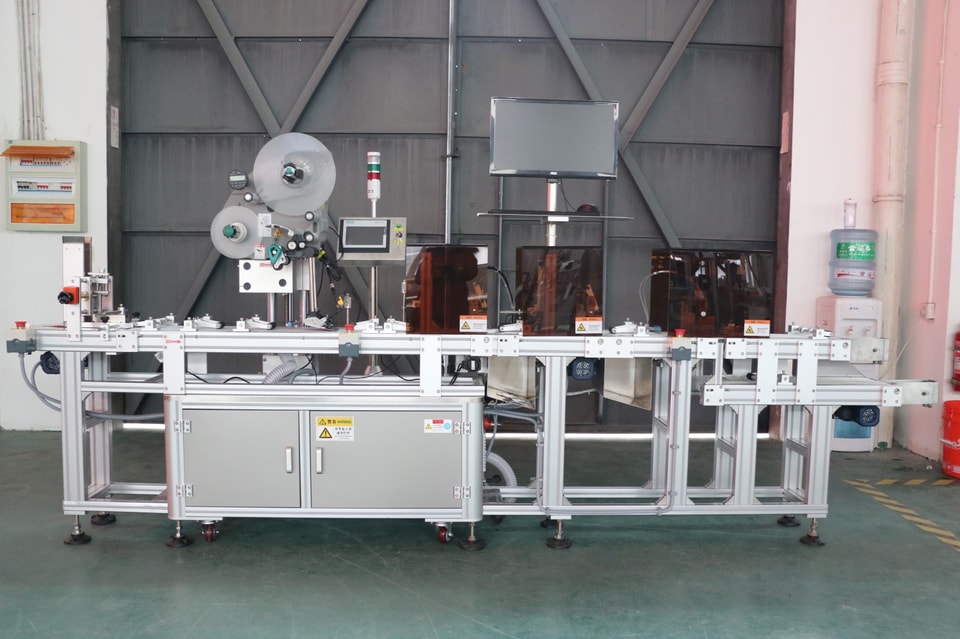

SKILT Hang tag label applicator have made for Nike, Adidas, Levis, Muji, UA, ZARA, CK hang tag project , with case for ref.
● Suit for clothing hang tag labeling on top plane surface, with one label or two labels ;
● With auto feeder paging device and collection function together.
MACHINE FUNCTION INTRODUCTION

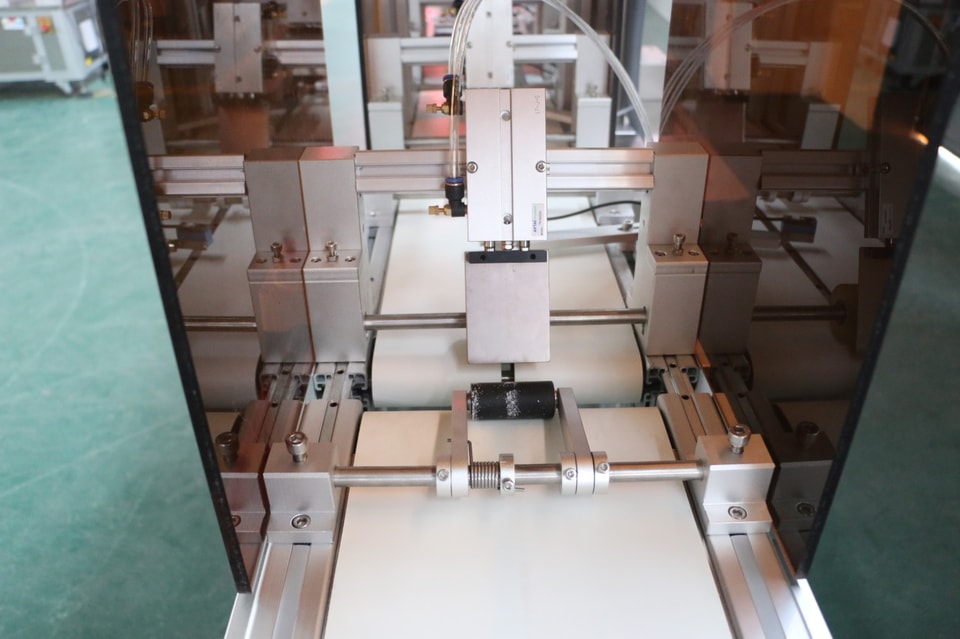

1. Feeder : Paging device, can put about 500pcs tag one time, delivery out one by one；
2. Labeling : When tag delivery to the labeling position, past RFID sticker on tag surface directly;

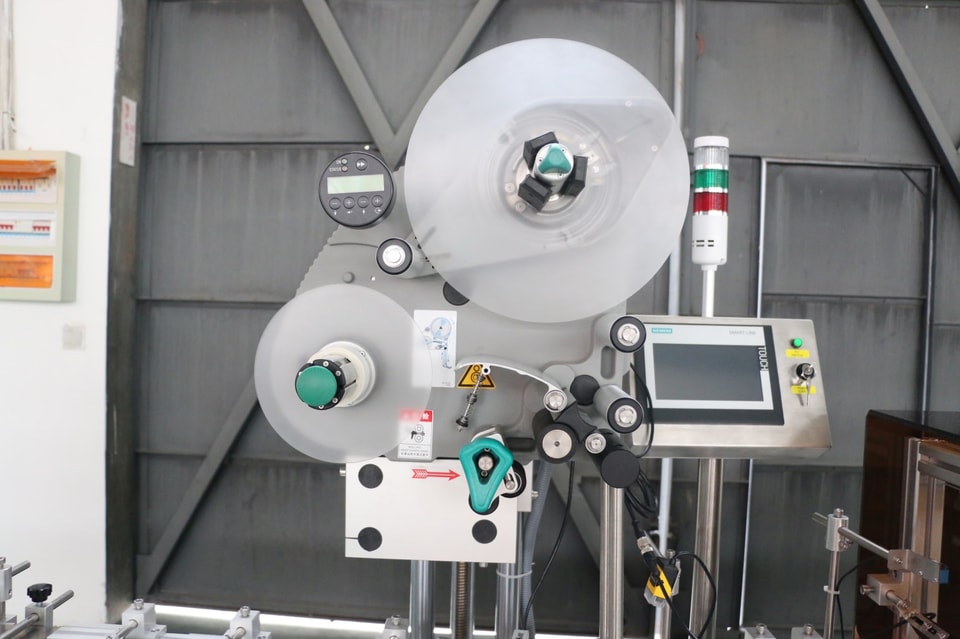

labeling engine use German Novexx ALS204, for demending 24/7 countinous operation, tandem function for non-stop production , IP65;
3. RFID detection ：If RIFD label on tags can not reading, eliminate substandard tag to the bottom collection box ;

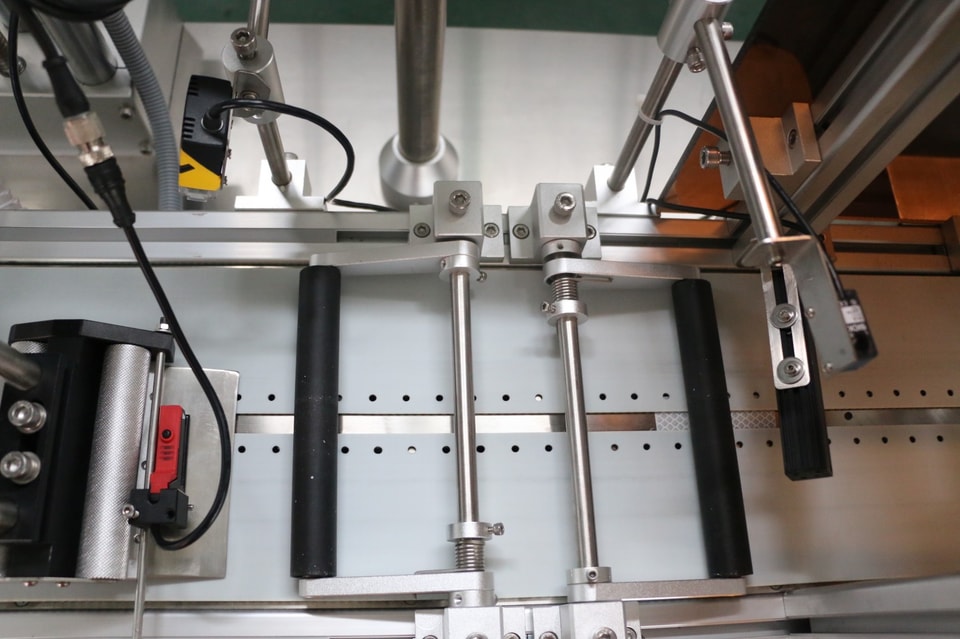

4. Visual Inspection : If labeling accuracy more than ±1mm, eliminate substandard tag to the bottom collection box ;

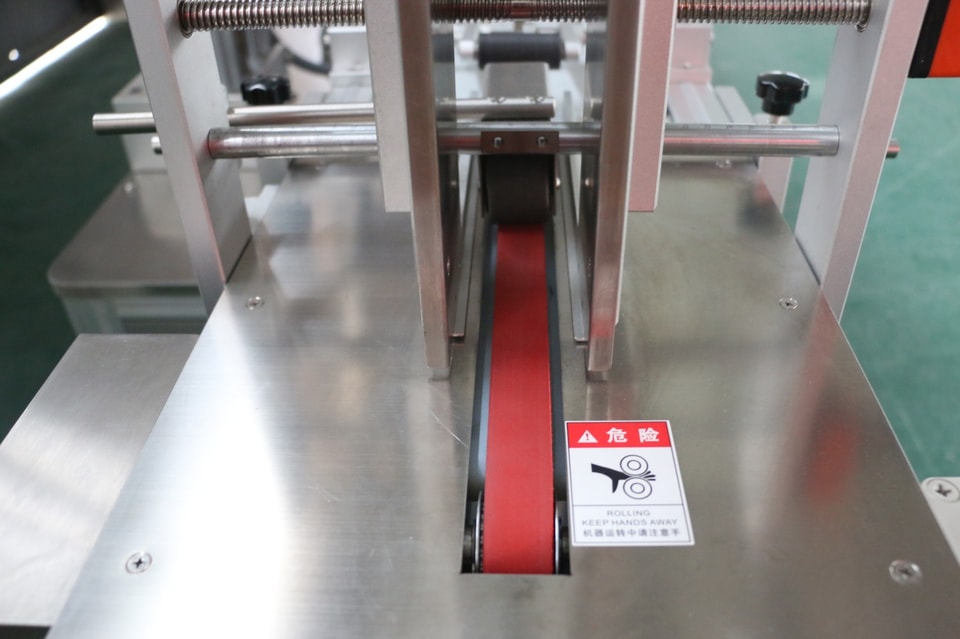

5. #1 collection conveyor : With counter function for stack collection ；
6. #2 collection conveyor : When #1 reach to the counter number, will auto switch to the #2 conveyor , convenient for worker take tags out.
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine control system | Panisonic & German novexx |
| 4 | Labeling engine Drive | Panisonic |
| 5 | Frequency converter | DELTA |
| 6 | pheck tag sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | JSCC |
| Model | PM-DPM-A |
| Driving Model | Servo motor & German NOVEXX |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 50-300pcs/min |
| Suitable label size | L:10-300mm，H:10-250mm |
| Suitable tag size | L: 30-300mm , W:30-200mm |
| Voltage | 110V/220V/380V |
| Machine size | 2200（L）× 800(W)× 1600 (H) mm |
1.Visual inspection system & take-out:
After labeling, tags delivery to visual inspection system, camera work and detect labeling accuracy,unqualified tag will been take out into waste hopper
2. Auto collect device:
With double layer conveyor collection device and conveyor back-flow collection device for optional, rather convenient for worker operation ;
3. Labeling engine German NOVEXX
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
