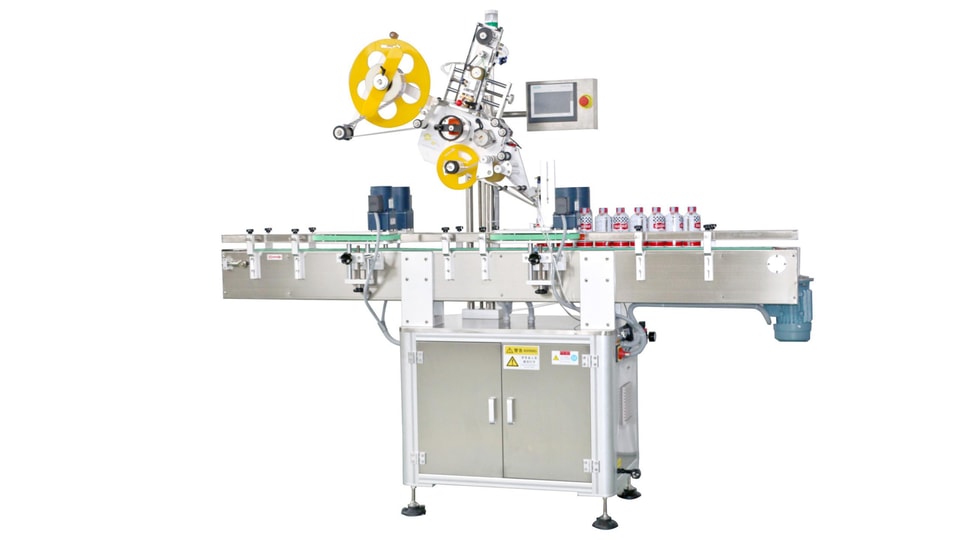

Bottle Tax Stamp L shape Labeler
Home > Products > Catalogues > Top Surface Labeler > Bottle Tax Stamp L shape Labeler
Bottle Tax Stamp L shape Labeler
Bottle Tax Stamp L shape Labeler
Bottle Tax Stamp L shape Labeler
Bottle Tax Stamp L shape Labeler
Bottle Tax Stamp L shape Labeler
Bottle Tax Stamp L shape Labeler
video

FOCUS STICKER LABELING MACHINE since 1998,one of the toppest bottle U tax stamp labeling machine,bottle tax stamp label applicator,tax stamp labeling machine in China.

  • INTRODUCTION
  • PARAMETER
  • CONFIGURATION
  • FOR REF
  • SERVICE




Seal and tamper-evident labeling l L Shape U Shape Stamp Label applicator


In addition to the duties of providing information and identifying the product, labels are increasingly assuming special functions.

Closing or sealing packages is certainly among the most important roles. An increasing number of medications, for example,
require that tamper-evident devices be applied, possibly in the form of a label.

Labels also play an important role in the convenience food trend, which includes baked goods, sandwiches, sushi boxes, fruit cocktails, confectionery and so on.They contain important variable information about the ingredients, expiration date or weight.At the same time, they securely seal the packaging.

For that reason, the technology is not only called tamper-evident or seal labeling, but also over-corner labeling or L, C or U labeling.

SKILT provides a variety of innovative solutions for this area of application, which also take the very special requirements for
harmaceutical labeling and food applications into consideration.

With application as follow :

Tax label on liquor bottle labeling ;
Security seal labeling for medicine box ;
Security seal for cigarette case labeling Tax stamp ;
Tax stamp shape label appicator for food box ;
Box bottle L shape labeling ;
Beer bottle cap L shape laebling ;





Model

DPM-S

Label material self-adhesive sticker, opaque or transparent label

Driving Mode

Servo motor

Yield（pcs/min）

10-100 pcs/min

Suitable label size

Width 10-100 mm  length 10-200 mm

Suitable labeling products size

Can customized depends on client product

Use air

5kg/cm ²

Voltage

110V/220V/380V

Machine size

1800（L） 800 (W)  1300 (H) mm

No

Name

Brand

1

HMI (Touch screen)

SIEMENS

2

PLC

SIEMENS

3 Labeling engine control system Panisonic

4

Sensor (check product)

Japan KEYENCE

5

Sensor (check label)

German LEUZE

6

Low voltage circuit breaker, terminal, relay

France Schneider

7

Frequency converter

DELTA

8

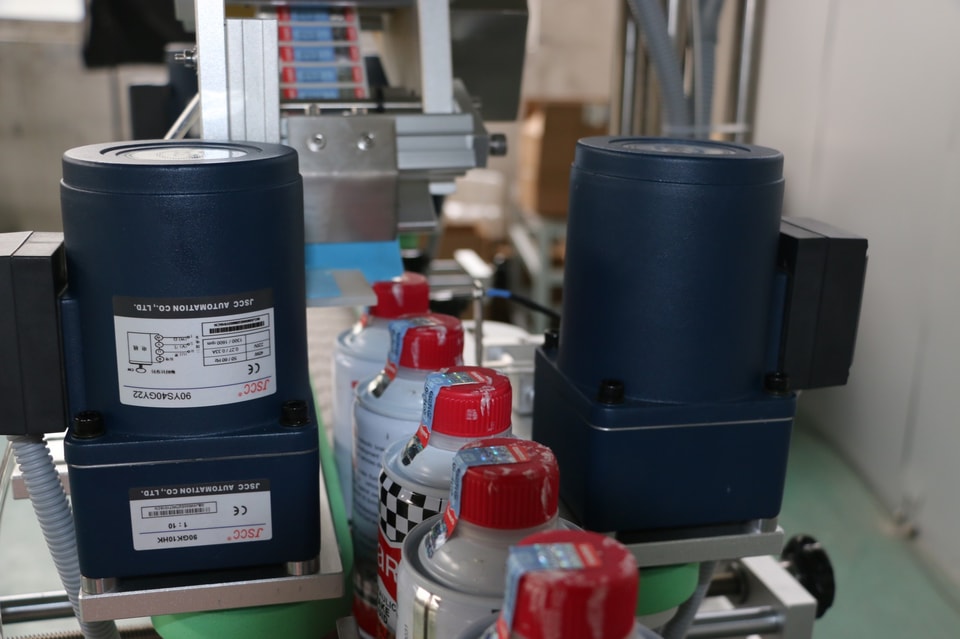

Conveyor motor

German JSCC

9

Clamp motor

German JSCC


① Machine with two year warranty；

② Supply operation training for client workers ；

③ If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation；
