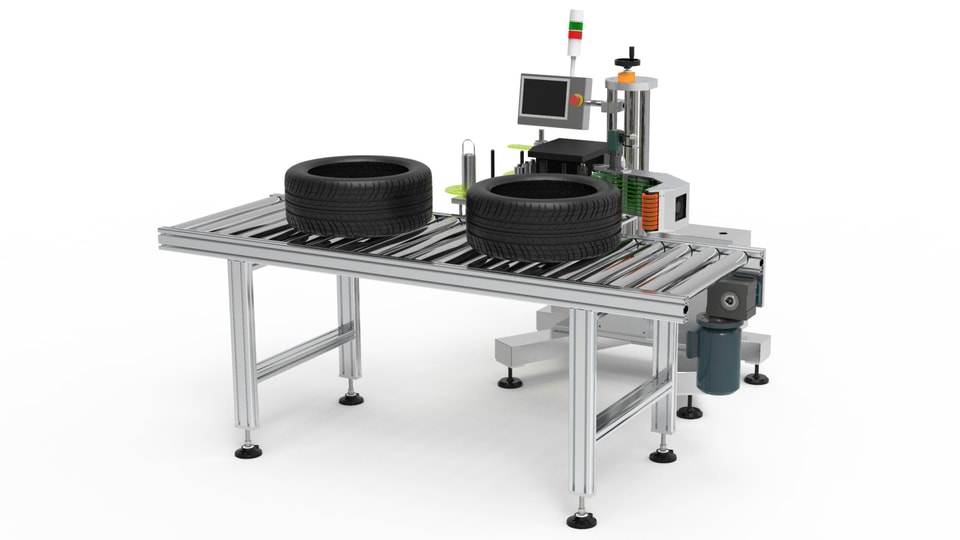

Tire Online Print and Apply Labeler l Tire Label Applicator
· Real-Time Dynamic Labeling: Prints and applies labels instantly with variable data, such as real-time weight, batch codes, shipping barcodes, and timestamps.
· Zero Label Waste: Eliminates the need for pre-printed label inventory, completely avoiding waste caused by product or data changes.
· 100% Automation & Traceability: Seamlessly integrates with ERP/MES systems and weighing scales for error-free data synchronization and supply chain tracking.
· Adaptive Placement Accuracy: Utilizes advanced tamp, blow, or wipe applicators to accurately place labels on the top, side, or corner of moving items.
· High-Speed Continuous Operation: Engineered for fast-paced logistics and production lines, supporting continuous 24/7 printing and pasting without bottlenecks.
· Flexible Modular Design: Supports quick changes of ribbon and label rolls with a highly adaptable structure to fit existing conveyor lines.
NOVEXX XPA934 PRINT & APPLY ENGINE INTRODUCTION
NOVEXX Solutions Print & Apply Systems are designed to meet today's high standards of product labeling requiement.
The most compact print & apply system on the market can be flexibly integrated into any production line.
They are best suited for industrial environments, high and low product volumes, continuous operation, and a wide variety of label positions.
| Model | RPLM-DPM |
| Labeling way | Online printing labeling |
| Pirnting engine | German NOVEXX DPM or ALX924 |
| Label material | Self-adhesive sticker |
| Labeling Speed | ≤60pcs/min |
| Suitable label size | W: ≤50mm、L: ≤100mm |
| Conveyor | Load-bearing conveyor |
| Air source | 0.6 mpa |
| No | Name | Brand |
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Printing engine | German NOVEXX |
| 4 | Check tire sensor | German SICK |
| 5 | Conveyor motor | German JSCC |
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
