High Speed Clamshell Labeling Machine

Empty clamshell tray egg box labeling machine l High speed labeling solution

High-speed clamshell labeling machines are specialized packaging systems built to apply adhesive labels to thermoformed plastic clamshells, trays, or hinged containers at rapid production rates (typically 80 to 200+ containers per minute).

Because empty or lightweight clamshells are highly unstable on standard conveyor lines, high-speed models must integrate advanced automated feeding, positive orientation, and continuous collection systems to maintain absolute accuracy without crushing the product.

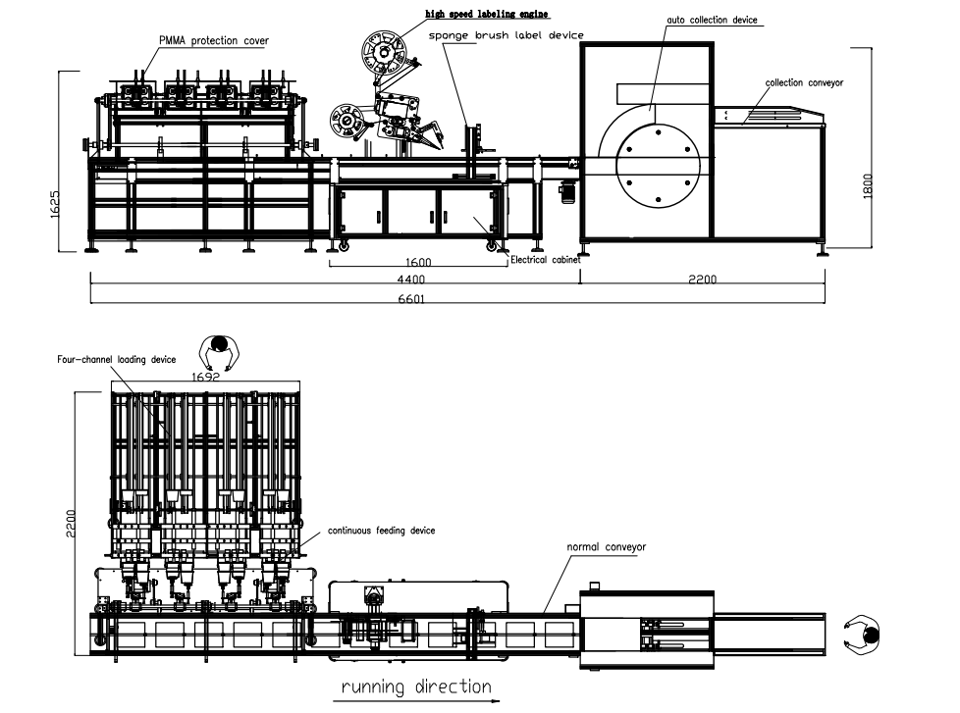

Core High-Speed Structural Features :

To maintain stability and prevent line jams at high speeds, SKILT machines utilize three critical automated modules:

1) Automatic De-nesting & Feeding Device: Clamshells are often tightly stacked together when manufactured. An automated friction feeder or vacuum-suction de-nester separates the stacked clamshells one by one and drops them perfectly spaced onto the intake conveyor.

2) Positive Alignment & Top-Stabilizing Belts For Labeling : Once on the line, side-guiding chains or dual side-holding belts align the clamshell. A synchronized overhead top-holding belt clamps down gently from above, ensuring the lightweight plastic does not shift, flutter, or slide when moving past the high-speed label dispenser.

3) Automatic Stacking & Collection Device: After labeling, a high-speed discharge system uses side-pacing wheels or a descending chute to re-stack the finished clamshells neatly together, minimizing manual labor at the end of the line.

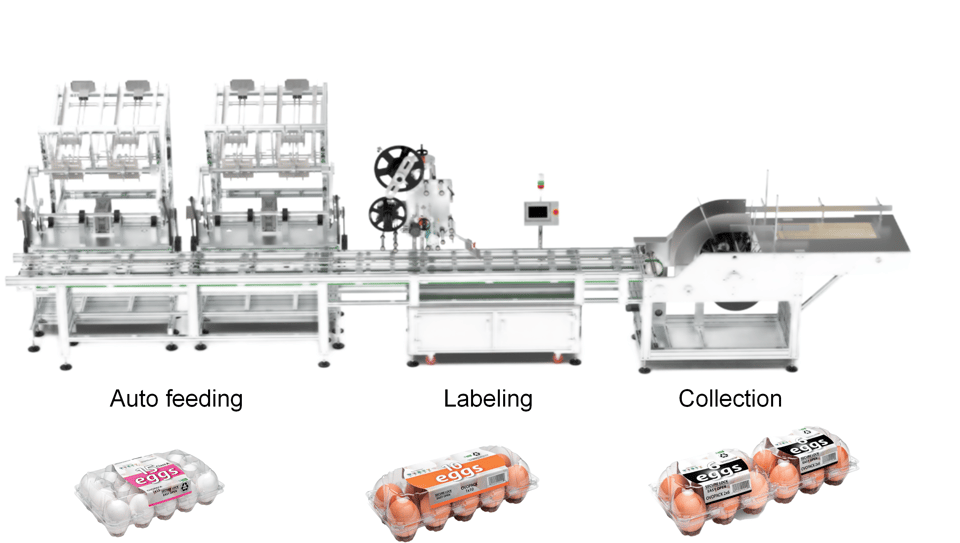

Functional Overview:

* Receive stacked empty clamshell.
* Automatically separate or denest each clamshell.
* Apply a self-adhesive label to the clamshell top surface.
* Restack or collect the clamshell after labeling.
* Handle different clamshell sizes.

Common Labeling Configurations for Filled Clamshells

 Depending on customer’s branding and security needs, high-speed machines are engineered for three main application styles :

Top Plane Labeling: A high-speed overhead dispensing head fires a label flat onto the top surface of the clamshell tray. Learn More

Top & Bottom Labeling: There with dual labeling heads on the machine conveyor , apply two stickers on clamshell top and bottom together. Learn More

C-Wrap / Tamper-Evident Labeling(This is specially suit for filled clamshell): A single long label is applied across the top lid, extends down the front opening, and wraps underneath the bottom base. This seals the clamshell shut, acting as a security and tamper-evident seal for fresh food retail. Learn More

Primary Industrial Applications

Fresh Produce Packaging: High-capacity packing lines for strawberry, blueberry, cherry tomato, and grape clamshells.

Bakery & Deli Items: Transparent hinged plastic containers for muffins, cakes, croissants, and pre-made salads.

Egg Trays: Rapid labeling on the top flat or curved surface of clear plastic or molded pulp egg cartons.

Hardware & Consumer Goods: Blister-style clamshell packs for electronics, batteries, tools, and retail accessories.
