Egg Box Labeling Machine
SKILT Auto egg box tray labeling machine manufacturer.
With different feeding and collection methods are available as client detail labeling requirements.
- INTRODUCTION
- PARAMETER
- CONFIGURATION
- OPTIONAL
- SERVICE
Egg Box labeling machine l Egg tray label applicator

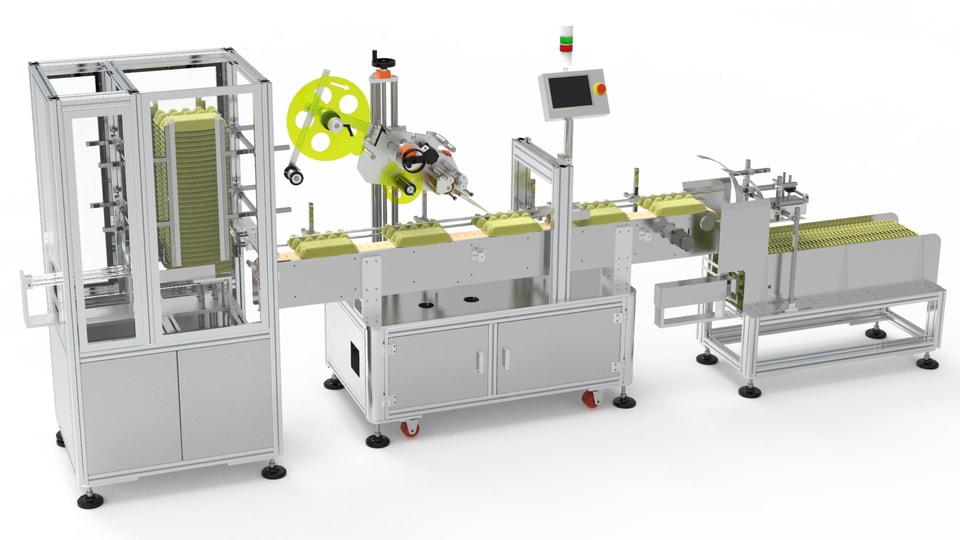

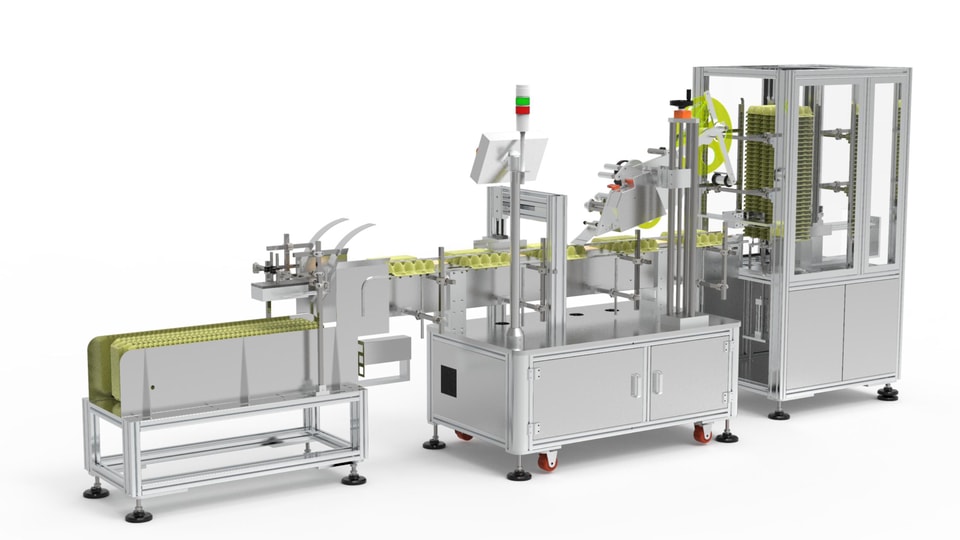

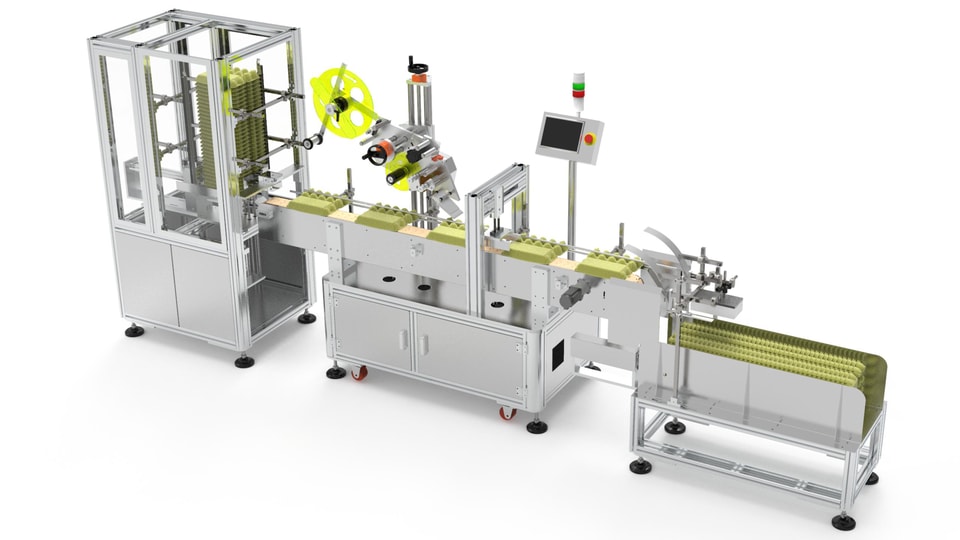

SKILT egg carton labeling machine is a stand-alone intermittent motion labeling system designed for
mid-speed of self-adhesive sticker labels affixed onto plastic/paper egg cartons.

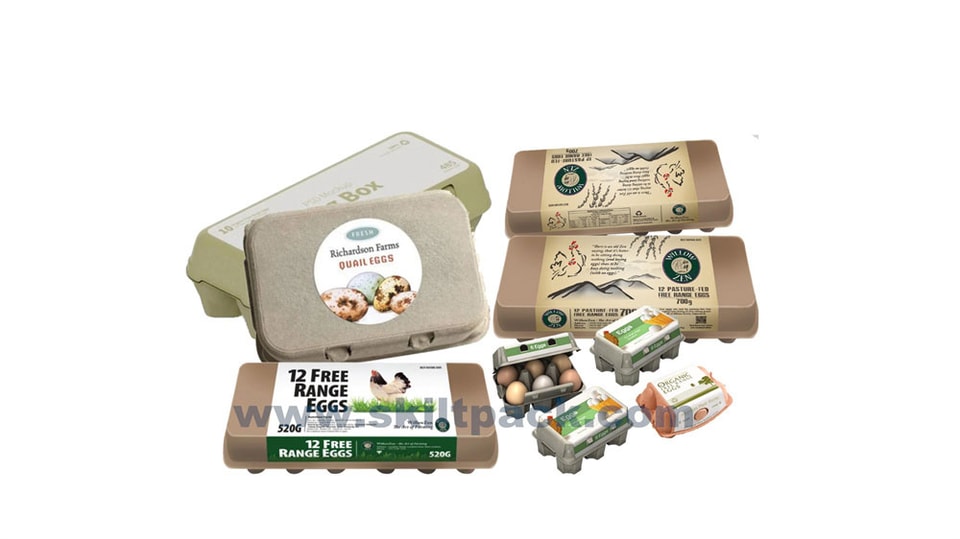

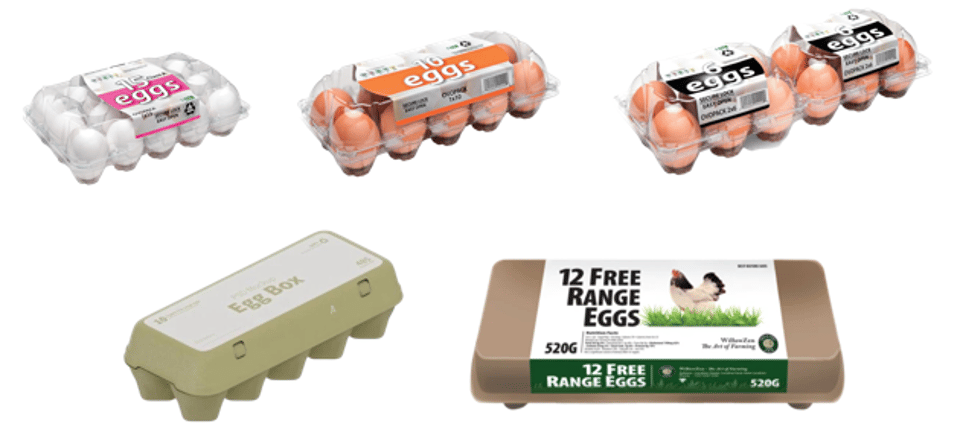

Special for recycled Paper Pulp Egg Carton / Box / Tray
12 count tri-fold, 12 count bi-fold
18 count bi-fold, and 24 count bi-fold
Machine Features
1. Stacked Egg Trays Feeding Automatically
2. Egg Trays Automatic Transportation System
3. Products Position-Setting Automatically
4. Labeled Products Automatic Stack Collecting System
| Model | DPM-ELM-A |
| Driving way | Servo system & German Novexx |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 20-150pcs/min |
| Suitable label size | Width 10-240 mm length 10-300 mm |
| Suitable egg box size | Can customized |
| Voltage | 110V/220V/380V |
| Machine size | 3900（L） 800 (W) 1300 (H) mm |
| No | Name | Brand |
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine servo motor | Panisonic |
| 4 | Labeling engine servo drive | Panisonic |
| 5 | Frequency converter | Delta |
| 6 | Check egg box sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | Switzerland ABB |

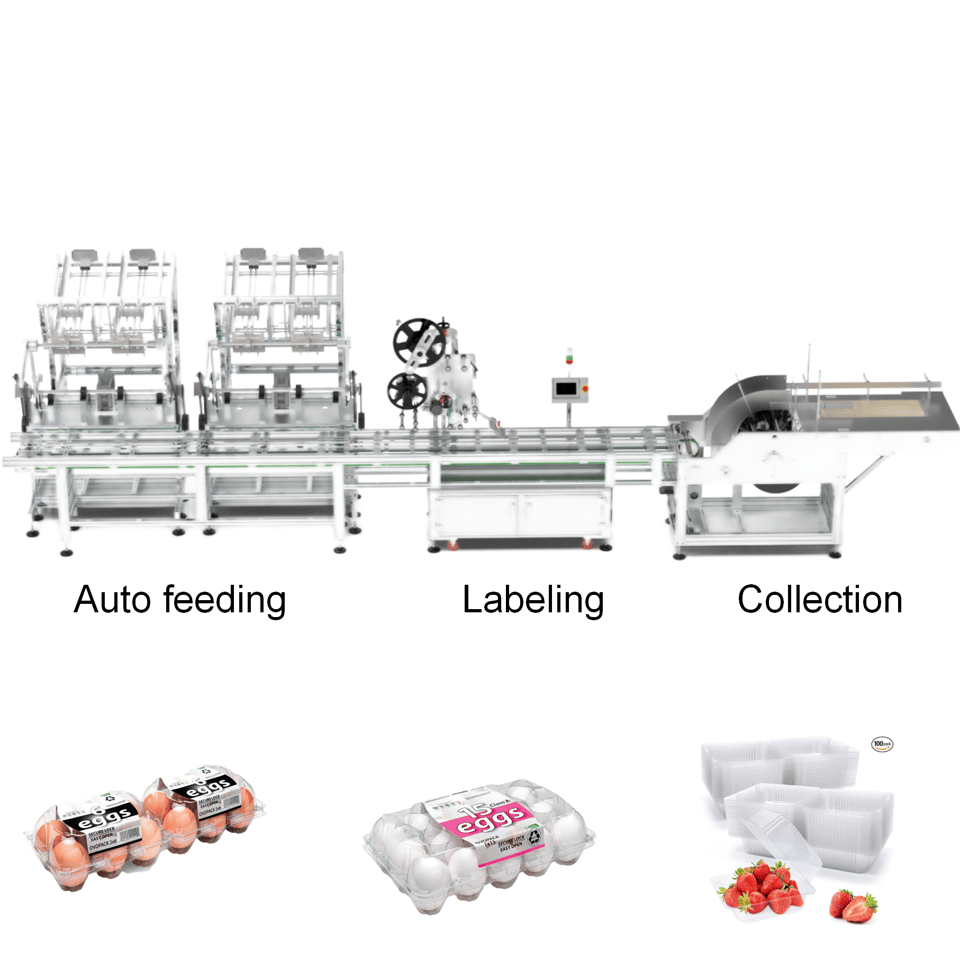

- Different feeding methods are available.
- Different collection methods are available.
- Printing methods are available.
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely ;
④ Range experienced engineer come to client company for installation；
